TW3872E OEM Pre-Filtered Dual Band Antenna

$194.00

The Pre-filtered TW3872E (and its housed version of TW3872) employs Tallysmans Accutenna® technology which provides circular response over the entire bandwidth thereby producing multipath signal rejection resulting in higher positional and timing accuracy. The TW3872E covers the GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1 and SBAS (WAAS, EGNOS & MSAS) frequency bands. The TW3870E offers excellent axial ratio and a tightly grouped phase center. The higher gain of the TW3872E makes it ideal for use with receivers requiring higher gain.

View Full Description
SKU: 33-3872E Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3872E

The Pre-filtered Tallysman TW3872E (and its housed version of TW3872) employs Tallysmans Accutenna® technology which provides circular response over the entire bandwidth thereby producing multipath signal rejection resulting in higher positional and timing accuracy. The TW3872E covers the GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1 and SBAS (WAAS, EGNOS & MSAS) frequency bands. The TW3870E offers excellent axial ratio and a tightly grouped phase center. The higher gain of the TW3870E makes it ideal for use with receivers requiring higher gain.

Features

  • Accutenna® Technology
  • Tight Phase Center Variation (PCV)
  • Low noise LNA: 2dB max.
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Ideal for RTK and PPP applications
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

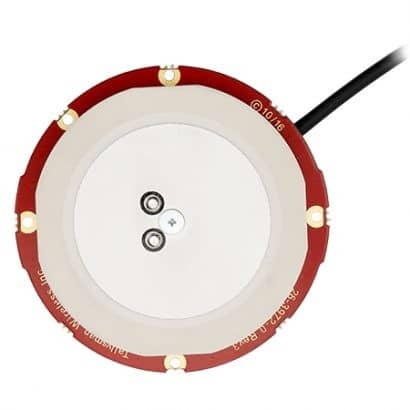

The OEM TW3872E is supplied with a standard 60mm diameter circular ground plane, with a coaxial cable terminated with a connector (right angle MCX is shown in the drawing). Mounting holes are provided for attachment to larger ground planes. Custom tuning and ground plane options may be available, depending on purchase level commitment.

The TW3872E is REACH and RoHS compliant.

Tallysman TW3872E OEM Pre-Filtered Dual Band Antenna Data Sheet

TW3000 Family of Products

ALL of the connector options with or without cables (max length 5m) are shown below. Please contact us with questions.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
01 = TNC female

** Premiums apply. Please contact NavtechGPS for information and pricing.


Radome Options:

00=Dark Grey Conical 10=Dark Grey Low Profile 01=White Conical 11=White Low Profile
