Item #: TW3887

TW3887 GPS L1/L2 + GLONASS G1/G2 + Beidou B1/B2 + Galileo E1 Antenna

$209.00

The TW3887 employs Tallysmans Accutenna® technology covering the GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1/B2, and SBAS (WAAS, EGNOS & MSAS) frequency bands. It provides truly circular response over its entire bandwidth thereby producing superior multipath signal rejection. This antenna sets a new price/performance standard in its category.

View Full Description
SKU: 33-3887 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3887

The Tallysman TW3887 employs Accutenna® technology covering the GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1/B2, and SBAS (WAAS, EGNOS & MSAS) frequency bands. It provides circular response over its entire bandwidth thereby producing superior multipath signal rejection. This antenna sets a new price/performance standard in its category.

The TW3887 has a pre-filter which increases the antennas immunity to high amplitude signals, such as LTE and other cellular signals.

Features

  • Accutenna® Technology
  • Tight Phase Center Variation (PCV)
  • Low noise LNA: 2.5dB typ.
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Pre-filtering to increase immunity from LTE and other signals
  • Ideal for RTK applications
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

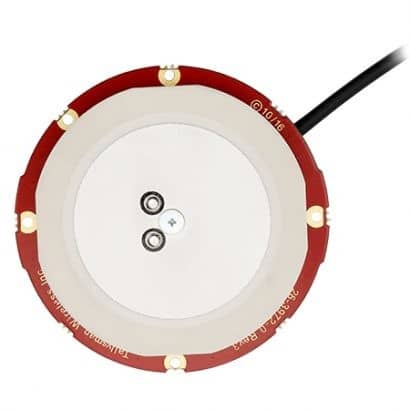

The antenna is supplied with a standard 60mm diameter circular ground plane, with a coaxial cable terminated with your choice of connector. Mounting holes are provided for attachment to larger ground planes. Custom tuning and ground plane options may be available, depending on purchase level commitment.

The TW3887 is REACH and RoHS compliant.

Tallysman TW3887 GPS L1/L2 + GLONASS G1/G2 + Beidou B1/B2 + Galileo E1 Antenna Data Sheet

TW3000 Family of Products

ALL of the connector options with or without cables (max length 5m) are shown below. Please contact us with questions.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
01 = TNC female

** Premiums apply. Please contact NavtechGPS for information and pricing.


Radome Options:

00=Dark Grey Conical 10=Dark Grey Low Profile 01=White Conical 11=White Low Profile
