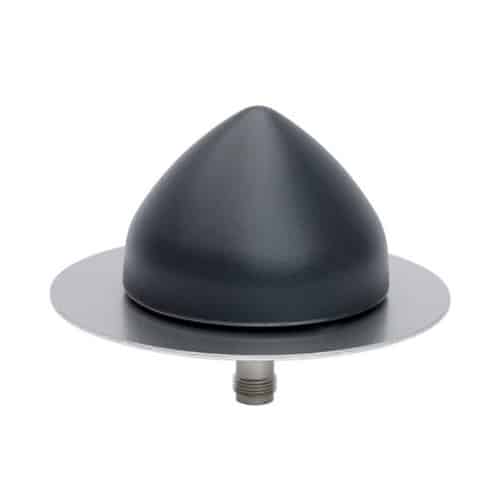

Tallysman TW3972LGXF Low-Gain Extended-Filter Triple-Band GNSS Antenna +L-Band
The TW3972LGXF from Tallysman is a precision-tuned triple-band Accutenna® technology antenna providing triple-band coverage GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], and L-Band correction services. It is designed for precision triple-frequency positioning.
Ideal for train control sensors, autonomous vehicle tracking and guidance, precision agriculture, and other applications where precision matters, The TW3972LGXF provides multipath signal rejection, a linear phase response, and tight phase center variation.
The TW3972LGXF features a precision-tuned, twin circular dual-feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wideband LNA, and band-split for narrow filtering in each band and further amplified prior to recombination at the output. The antenna also has a strong pre-filter to mitigate inter-modulated signal interference from Ligado, LTE and other cellular bands. The TW3972LGXF offers an excellent axial ratio and a tightly grouped phase center variation.
The TW3972LGXF meets all requirements of the Association of American Railroads’ Electronics Environmental Requirements and System Management Standard (S-9401.V1.0). In addition, it is also compliant with the EN45545-2, EN50121, EN50155, and EN61373 standards.
Features
- Low noise preamp (< 2.5 dB typ.)
- Axial ratio (< 2.0 dB typ.)
- Tight phase center variation
- High-gain LNA (20 dB typ.)
- Current (45 mA typ.)
- ESD circuit protection (15 kV)
- Invariant performance from 2.5 to 16 VDC
- IP69K, REACH, RoHS, and S-9401.V1.0 compliant
- EN45545-2 and EN50121 compliant
- EN50155 and EN61373 compliant
