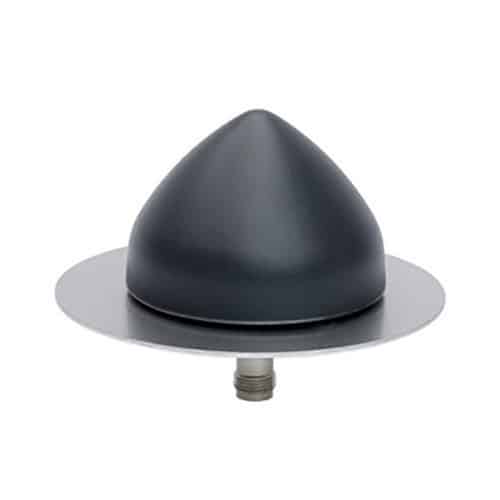

TW3972XF Extended-Filter Triple-Band GNSS Antenna +L-Band

The Tallysman TW3972XF is a precision-tuned triple-band antenna, providing coverage for triple-band GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation (WAAS, EGNOS, MSAS , or GAGAN), plus L-Band correction services. It is designed for precision triple-frequency positioning.

SKU: 33-3972XF Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3972XF Extended-Filter Triple-Band GNSS Antenna +L-Band

The TW3972XF is a precision-tuned triple-band antenna from Tallysman, providing coverage for triple-band GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, Galileo-E1/E5a/E5b, BeiDou-B1/B2/B2a, NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], plus L-Band correction services. It is designed for precision triple-frequency positioning.

The TW3972XF is designed for train control sensors, autonomous vehicle tracking and guidance, precision agriculture, and other applications where precision matters. The TW3972XF provides multipath signal rejection, a linear phase response, and tight phase center variation (PCV).

The TW3972XF features a precision-tuned, twin circular dual-feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wideband LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The antenna also has a pre-filter to mitigate inter-modulated signal interference from Ligado, LTE and other cellular bands. The TW3972XF offers an excellent axial ratio and a tightly grouped phase centre variation.

The TW3972XF meets all requirements of the Association of American Railroads’ Electronics Environmental Requirements and System Management Standard (S-9401.V1.0). In addition, it is also compliant with the EN45545-2, EN50121, EN50155, and EN61373 standards.

Features

  • Low noise preamp (< 2.5 dB typ.)
  • Axial ratio (< 2.0 dB typ.)
  • Tight phase center variation
  • High-gain LNA (37 dB typ.)
  • Current (45 mA typ.)
  • ESD circuit protection (15 kV)
  • Invariant performance from 2.5 to 16 VDC
  • IP69K, REACH, RoHS, and S-9401.V1.0 compliant
  • EN45545-2 and EN50121 compliant
  • EN50155 and EN61373 compliant

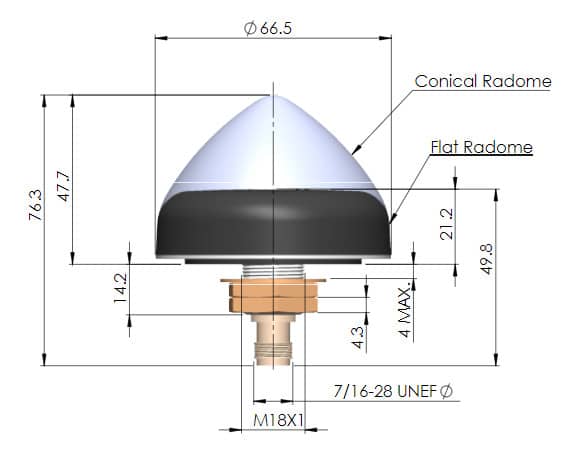

Mechanical Drawing

Tallysman TW3972XF Extended-Filter Triple-Band GNSS Antenna +L-Band Datasheet
