Item #: TW4020/TW4022

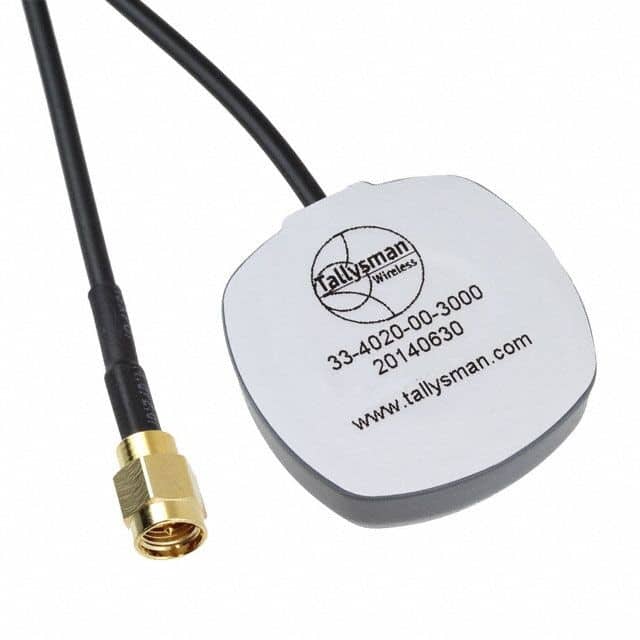

TW4020/TW4022 Wideband GPS Antenna

The Tallysman TW4020/TW4022 is a wideband GNSS antenna covering the GPS L1, frequency band. It features a small patch element with 40% wider bandwidth than typical GPS L1 antennas.

SKU: 33-4020/33-4022 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW4020/TW4022

The TW4020/TW4022 is a wideband GNSS antenna covering the GPS L1, frequency band. It features a small patch element and wide bandwidth. The TW4022 is the pre-filtered version of the TW4020

Features

  • 40% wider bandwidth
  • High rejection SAW filter
  • Low noise LNA: 1dB (TW4020)
  • Temperature compensating LNAs

Benefits

  • Great out-of-band signal rejection
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

The TW4020/TW4022 is housed in a compact, magnetic mount, IP67 compliant housings. It is RoHS and REACH compliant.

For further details, please download the Datasheet.

Tallysman TW4020/TW4022 Wideband GPS Antenna Data Sheet

TW4000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**


Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

** Premiums apply. Please contact NavtechGPS for information and pricing.
