Item #: TW4027/TW4029

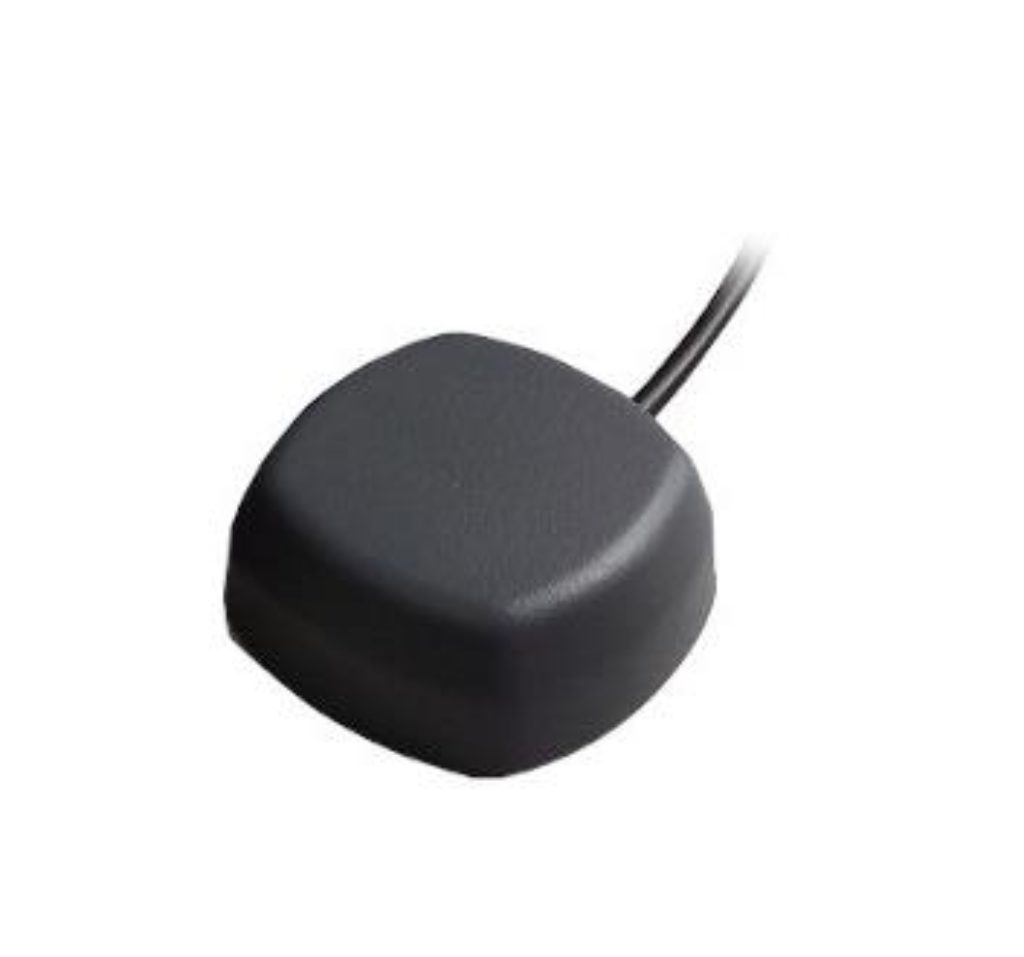

TW4027/TW4029 Low Current L1 GPS Bandwidth Antenna

The TW4027/TW4029 is a very low power, compact GNSS antenna covering the GPS L1, frequency band.

SKU: 33-4027-xx-yyyy Categories: , Manufacturer: Tallysman Wireless

Tallysman  TW4027/TW4029

The Tallysman  TW4027/TW4029 is a very low power, compact GNSS antenna covering the GPS L1, frequency band. This antenna features an LNA with a nominal current consumption of just 2mA, with constant performance from 2.5V to 15V supply voltage, and includes protection against close proximity L-band transmitting antennas such as Iridium™ and Globalstar™

The TW4029 is the pre-filtered version of the TW4027

Features

  • 40% wider bandwidth
  • Low noise LNA: 1dB
  • Temperature compensating LNAs

Benefits

  • Great out-of-band signal rejection
  • High signal-to-noise ratio
  • Consistent response in all operating temperatures

The TW4027 are housed in a compact, magnetic mount, IP67 compliant housings. It is RoHS and REACH compliant.

For further details, please download the Datasheet.



Tallysman TW4027/TW4029 Low Current L1 GPS Bandwidth Antenna Data Sheet

TW4000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**


Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

** Premiums apply. Please contact NavtechGPS for information and pricing.
