TW4327/TW4329 Low Current GPS/GLONASS Antenna

The TW4327/TW4329 is a very low power, compact wideband GNSS antenna covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency bands (1575 to 1606 MHz). This antenna features a large patch element and low footprint. The LNA has a typical current consumption of just 1.75mA, with constant characteristics over supply voltages from 2.5V to 16V.

SKU: 33-4327/33-4329 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW4327/TW4329

The TW4327/TW4329 is a very low power, compact wideband GNSS antenna covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency bands (1575 to 1606 MHz). This antenna features a large patch element and small footprint. The LNA has a typical current consumption of just 1.75mA, with constant characteristics over supply voltages from 2.5V to 16V.

Features

  • 40% wider bandwidth
  • Amongst the lowest power consumption available
  • Low noise LNA: 1dB
  • Temperature compensating LNAs

Benefits

  • Great out-of-band signal rejection
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

The TW4329 variant provides a Brick-Wall pre-filter to protect against saturation by high level sub-harmonics and L-Band signals.

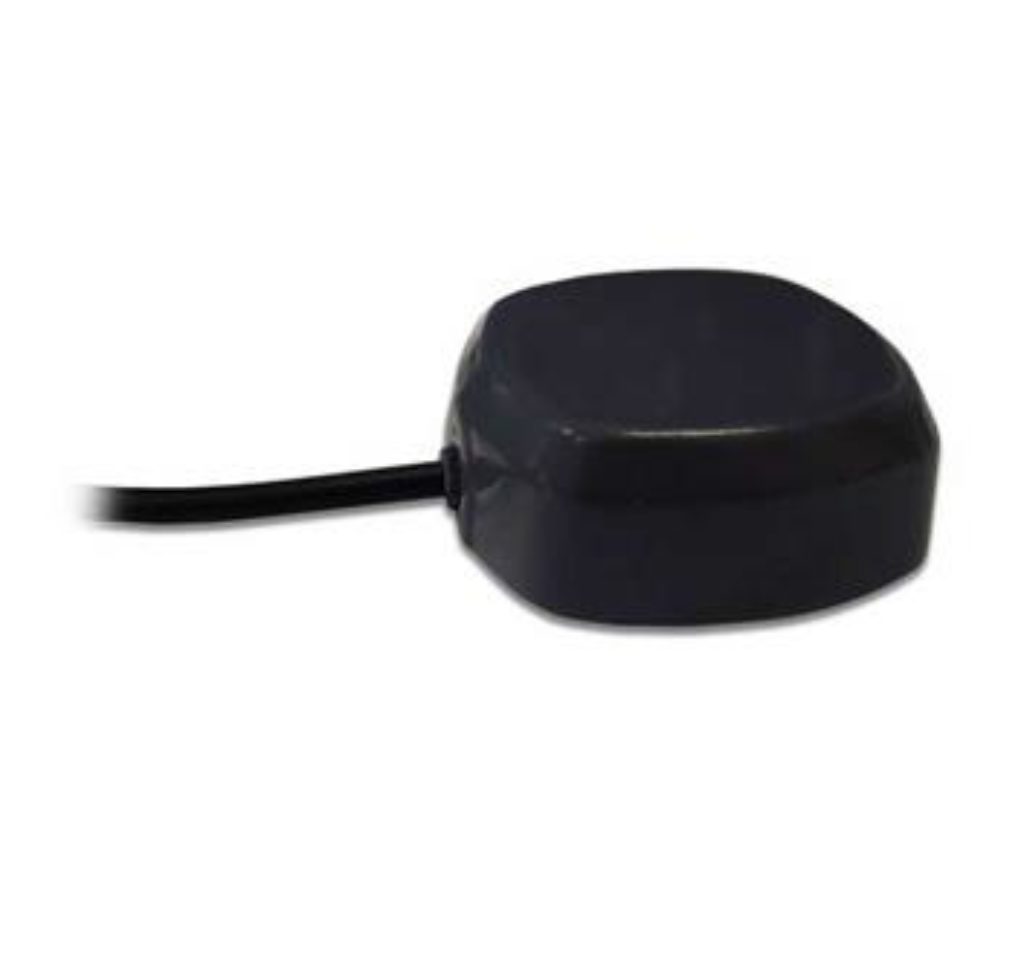

The TW4327/TW4329 are housed in a compact, magnetic mount, IP67 compliant housings. It is RoHS and REACH compliant.

For further details, please download the Datasheet.

Tallysman TW4327/TW4329 Low Current GPS/GLONASS Antenna Data Sheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
