Item #: TW7876

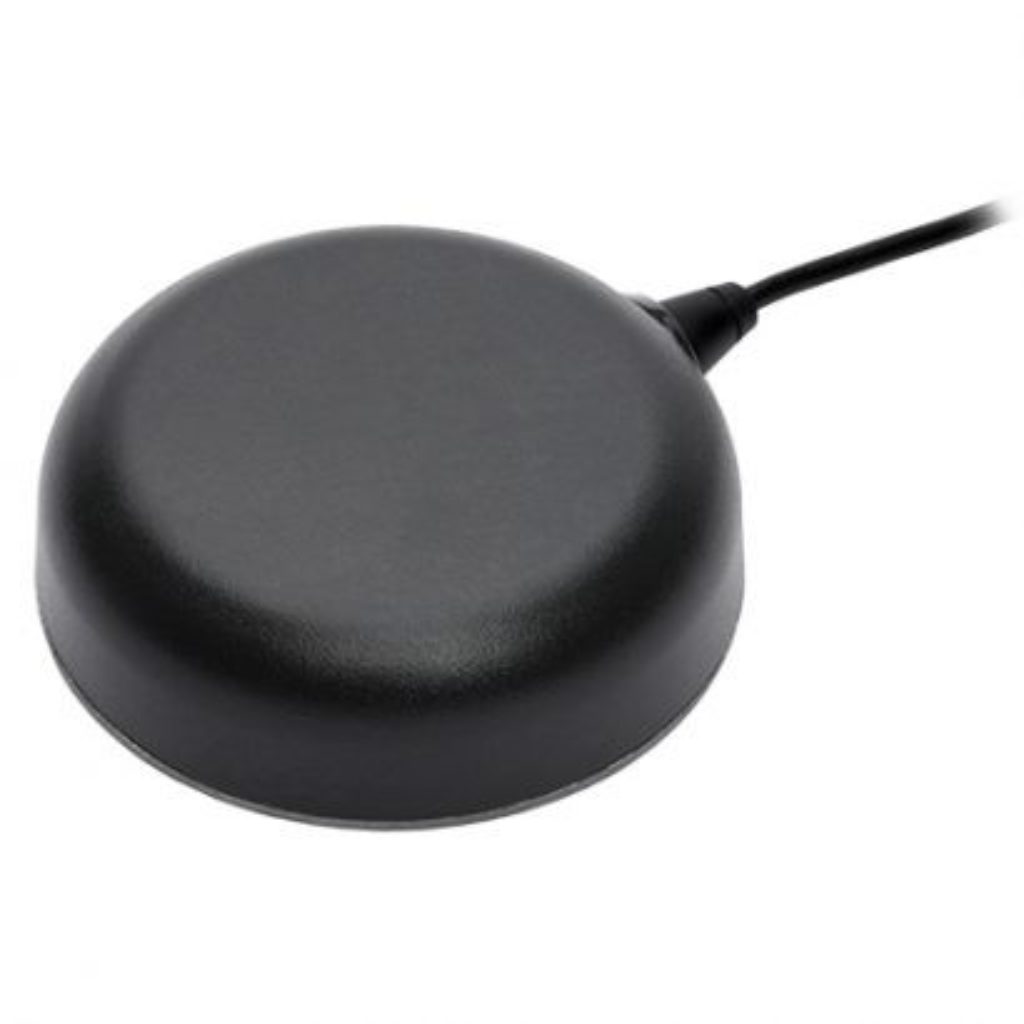

TW7876 Dual Band GNSS Antenna

The Tallysman TW7876 is dual band antenna for receiving GPS L1/L6, GLONASS G1, BeiDou B1/B3, Galileo E1, QZSS L6 signal. It features a precision tuned, circular dual-feed, stacked patch element. This antenna is ideal for precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matters.

SKU: 33-7876 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW7876 Dual Band GNSS Antenna

The TW7876 usesTallysman’s Accutenna® technology, covering GPS/QZSS L1/L6, GLONASS G1, Galileo E1/E6, BeiDou B1/B6, as well as SBAS (WAAS/EGNOS/MSAS).

The TW7876 provides superior multi-path rejection and axial ratio, a linear phase response, and tight phase center variation (PCV), while protecting against intermodulation and saturation caused by high level cellular. This antenna is ideal for precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matter.

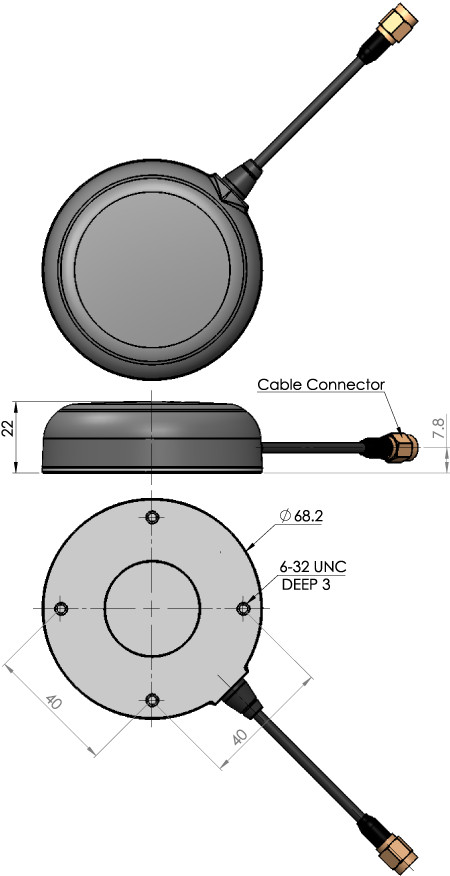

The TW7876 receives the following signal bands: 1257MHz to 1300MHz and 1557MHz to 1606MHz. The It also includes an LNA pre-filter for enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi.  It can be surface mounted via magnet, screws or adhesive material.

Applications

• Precision GPS position
• Dual Frequency RTK systems
• Mission Critical GPS Timing
• Military & Security

Features

  • Very low Noise Preamp, <2.5 dB
  • Axial ratio: <1.5 dB typ
  • Tight Phase Center Variation
  • LNA Gain 32 dB typ.
  • Low current: 24 mA typ.
  • ESD circuit protection: 15 KV
  • Invariant performance from: +2.5 to 12VDC

Benefits

  • Ideal for dual frequency RTK surveying systems
  • Great multi-path rejection
  • Increased system accuracy
  • Great signal to noise ratio
  • IP69K, RoHS and REACH compliant



Tallysman TW7876 GNSS Antenna Data Sheet
