Item #: TW7900P

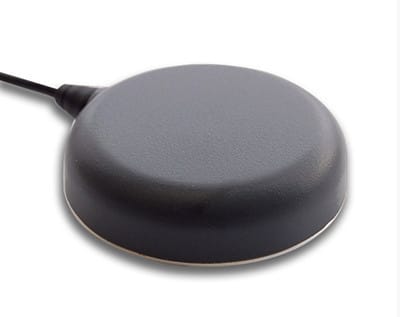

TW7900P Passive Triple Band GNSS Antenna with L-band

The TW7900P employs Tallysman’s unique Accutenna® technology, covering GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b, BeiDou B1/B2/B2a, as well as SBAS (WAAS/EGNOS/MSAS) and L-band correction services.

SKU: 33-TW7900P Categories: , Manufacturer: Tallysman Wireless

Tallysman TW7900P Passive Triple Band GNSS Antenna with L-Band

The TW7900P provides superior axial ratio, a linear phase response, and tight phase center variation (PCV). This antenna is ideal for precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matters.

The TW7900P features a dual feed circular stacked patch element. The input signal is split into two orthogonal feeds used to excite the dual-pin patch antenna elements. The TW7900P provides re-radiation for signals in the bands 1164MHz to 1254MHz and 1525MHz to 1606MHz. It is housed an industrial-grade weather-proof enclosure that can be surface mounted via magnet, screws or adhesive material.

Features

  • Axial ratio:<2dB typ
  • Tight Phase Center Variation

Benefits

  • Ideal for re-radiators
  • Increased system accuracy
  • IP67, RoHS and REACH compliant

Coverage

  • L-Band correction services, GPS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b, BeiDou B1/B2/B2a

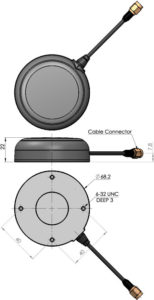

Dimensions in Milimeters

TW 7900P Passive Triple Band GNSS Antenna



Tallysman TW7900P Passive Triple Band GNSS Antenna with L-band Data Sheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
