Item #: TW3882

TW3882 GPS L1/L2 + GLONASS G1/G2 + BeiDou B1/B2 + Galileo E1 Antenna

$299.00

The TW3882 employs Tallysmans unique Accutenna® technology covering the GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1/B2, and SBAS (WAAS, EGNOS & MSAS) frequency bands.

View Full Description
SKU: 33-3882 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3882

The TW3882 employs Tallysmans unique Accutenna® technology covering the GPS L1/L2, GLONASS G1/G2, Galileo E1, BeiDou B1/B2, and SBAS (WAAS, EGNOS & MSAS) frequency bands. It provides circular response over its entire bandwidth thereby producing superior multipath signal rejection. This antenna sets a new price/performance standard in its category.

The TW3882 has a pre-filter which increases the antennas immunity to high amplitude signals, such as LTE and other cellular signals.

Features

  • Accutenna® Technology
  • Tight Phase Center Variation (PCV)
  • Low noise LNA: 2.5dB typ.
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Pre-filtering to increase immunity from LTE and other signals
  • Ideal for RTK applications
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures

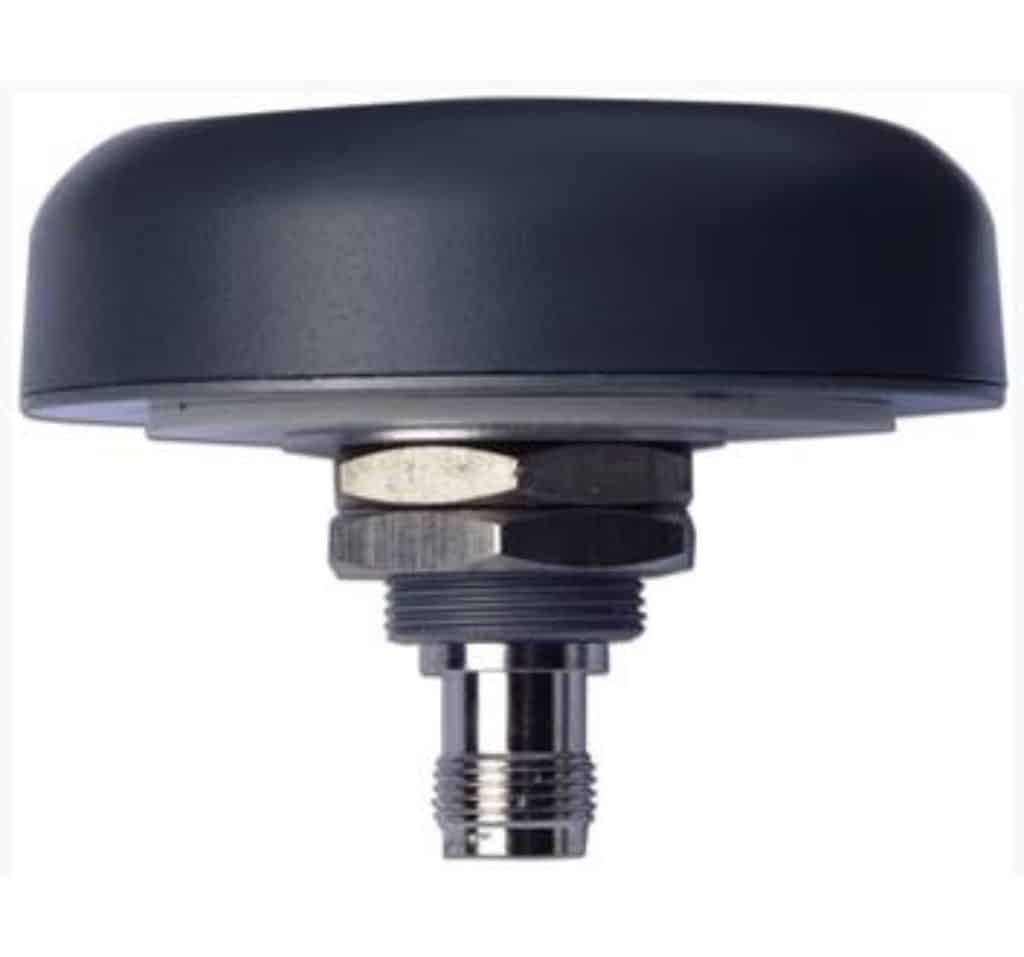

The TW3882 is housed in a through-hole mount, weather-proof enclosure for permanent installations. It is available with either a flat or conical radome in either grey or white. The TW3882 is also available with either a TNC or N-Type connector on the base of the antenna or with a flying lead and a variety of connectors. L-Bracket or Pipe Mount (part numbers 23-0040-0, 23-0065-0 respectively) are available for non-rooftop installation.

The TW3882 is IP67, REACH, and RoHS compliant.

Tallysman TW 3882 GPS L1/L2 + GLONASS G1/G2 + BeiDou B1/B2 + Galileo E1 Antenna Datasheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
