Item #: VSP6037L-MAR

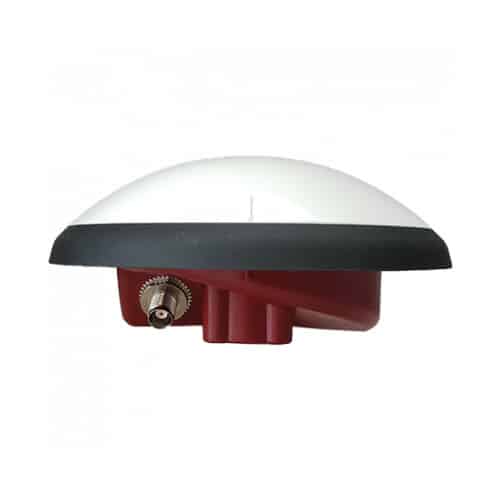

VSP6037L-MAR VeroStar™ Marine Full GNSS Antenna +L-Band

The VSP6037L VeroStar™ Marine Antenna employs Tallysman’s unique VeroStar™ technology covering the full GNSS spectrum: GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2/B2a/B3, QZSS L6, NavIC L5, as well as SBAS (WAAS/EGNOS/GAGAN/MSAS), and L-band correction services.

SKU: 33-VSP6037L-MAR Categories: , Manufacturer: Tallysman Wireless

Tallysman VSP6037L-MAR VeroStar™ Marine Full GNSS Antenna with L-Band

The compact VSP6037L VeroStar™ antenna supports the full GNSS spectrum (all constellations and signals) plus L-band correction services. This housed antenna provides exceptional low elevation satellite tracking with a high efficiency radiating element. The VeroStar™ element has a low axial ratio through all elevation angles providing strong multi-path rejection. The VSP6037L also exhibits a stable phase center variation (PCV) and a strong PCV repeatability.

The VSP6037L provides high receive gain over the full GNSS spectrum: low GNSS band (1164MHz to 1300MHz), L-band correction services (1539MHz to 1559MHz) and high GNSS band (1559MHz to 1610 MHz). It has a robust pre-filtered LNA, with high IP3 to minimize de-sensing from high-level out-of-band signals, including 700MHz LTE, while still providing a noise figure of 1.6dB. With the VSP6037L-MAR, Tallysman Wireless strives to deliver a full spectrum antenna which provides quality in every area including weight, size, efficiency, durability, and affordability.

The VSP6037L-MAR antenna’s filters also fully attenuate interference from Iridium and Inmarsat signals, providing 75 dB to 85 dB of attenuation over Iridium downlink (1616 – 1626 MHz ) and 85 dB to 95 dB over Inmarsat uplink (1626 – 1660 MHz), making this antenna ideal for marine vessels.

Benefits

  • Consistent performance across all frequency bands
  • Excellent tracking elevation (0°-90°)
  • Extreme precision
  • Excellent multipath rejection
  • REACH and RoHS compliant

Features

  • Light, compact and very robust design
  • Very tight phase center variation (2.0 mm)
  • Low axial ratios from zenith to horizon
  • Low current (50mA)
  • Invariant performance from: 3.0 ti 16 VDC
  • High gain/temperature at low elevation angles
  • Low current (50 mA)

Tallysman VSP6037L-MAR VeroStar™ Marine Full GNSS Antenna with L-band

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
