Item #: VSS6337L

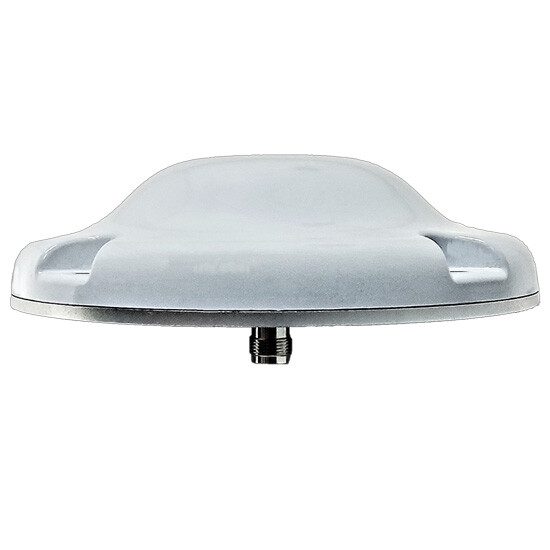

VSS6337L VeroStar™ Surface-Mount Triple-band GNSS Precision Antenna +L-band

$799.00

The VSS6337L from Tallysman is a patent pending antenna which employs VeroStar™ technology, providing high gain over the full GNSS spectrum: GPS/QZSS-L1/L2/L5, Galileo-E1/E5a/E5b, GLONASS-G1/G2/G3, BeiDou-B1/B2/B2a, and NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], as well as L-band correction services. The VSS6337L is ideal for high-precision applications such as autonomous vehicles.

SKU: 33-VSS6337L Categories: , Manufacturer: Tallysman Wireless

Tallysman VSS6337L VeroStar™ Surface-Mount Triple-band GNSS Precision Antenna +L-band

The patent-pending VSS6337L from Tallysman employs VeroStar™ technology, providing high gain over the full GNSS spectrum: GPS/QZSS-L1/L2/L5, Galileo-E1/E5a/E5b, GLONASS-G1/G2/G3, BeiDou-B1/B2/B2a, and NavIC-L5, including the satellite-based augmentation system (SBAS) available in the region of operation [WAAS (North America), EGNOS (Europe), MSAS (Japan), or GAGAN (India)], as well as L-band correction services.

A wide-band spherical antenna element enables VeroStar™ to deliver a ±2 mm phase centre variation (PCV), making it ideal for high-precision applications, such as autonomous vehicle navigation (land, sea, and air), machine control, and precision agriculture.  The VeroStar™ antenna features a robust pre-filter and high-IP3 LNA architecture, minimizing de-sensing from high-level out-of-band signals, including 700 MHz LTE, while still providing a noise figure of only 1.8 dB.

Features

  • Tight phase center variation (± 2.0 mm; no azimuth)
  • Low axial ratios from zenith to horizon
  • Low roll-off from zenith to horizon
  • High G/T at low elevation angles
  • Invariant performance from 3.0 to 16 VDC
  • Low current (50 mA)
  • Low noise figure (1.8 dB)
  • Light, compact, and robust design
  • IP67, REACH and RoHS compliant

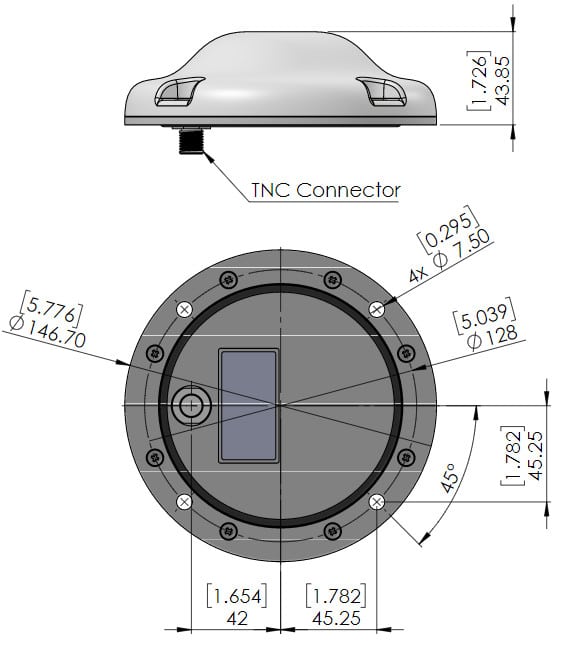

VSS6337L and VS6037L Mechanical Drawing

Tallysman VSS6337L VeroStar™ Surface-Mount Triple-band GNSS Precision Antenna +L-band Datasheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
