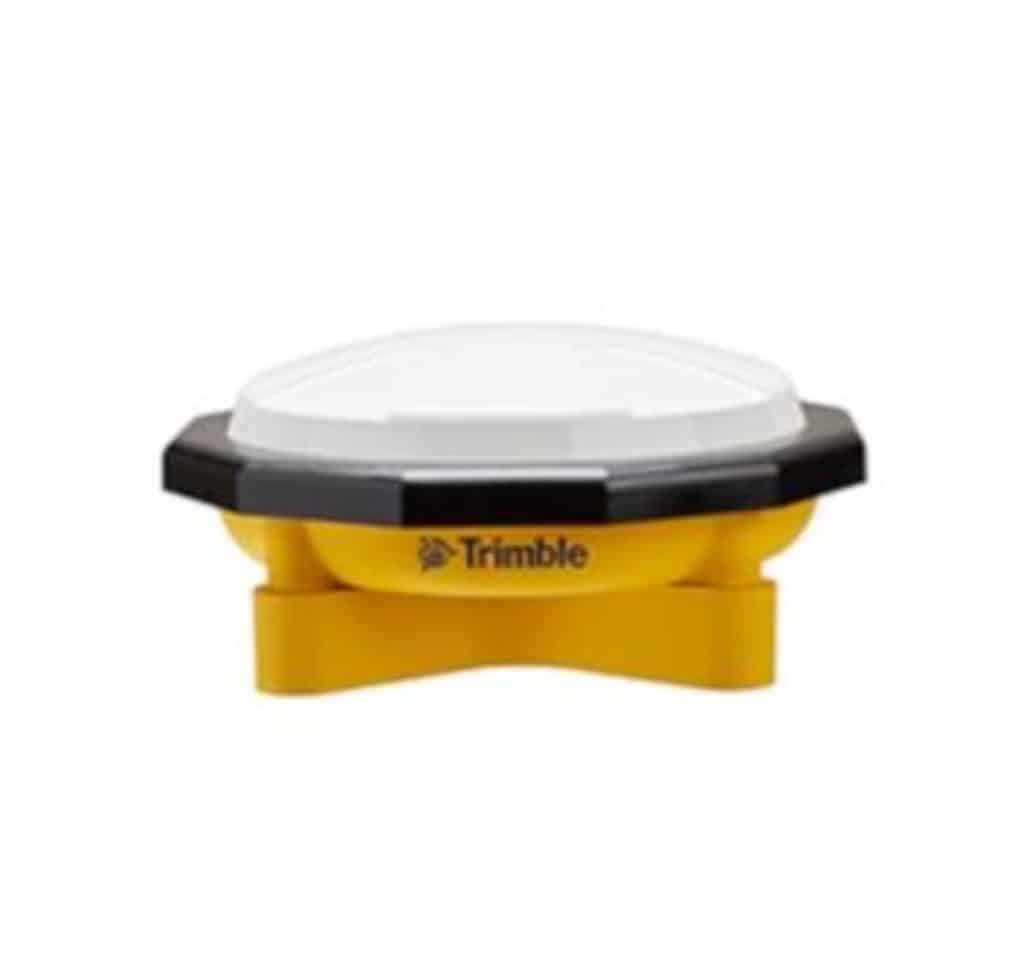

Zephyr 3 Rugged GNSS Antenna

The newly improved Zephyr 3 Rugged antenna is smaller and lighter than its Zephyr 2 Rugged predecessor. The Trimble Zephyr 3 Rugged antenna is designed for applications in high shock and vibration environments. Integrated with advanced filtering capabilities and robust signal tracking, the Zephyr 3 Rugged can provide the millimeter level accuracy required to enhance your position solution.

SKU: 125000-30-INT Category: Manufacturer: Trimble Navigation

Trimble Zephyr 3 Rugged

The newly improved Zephyr 3 Rugged antenna is smaller and lighter than its Zephyr 2 Rugged predecessor. The Trimble Zephyr 3 Rugged antenna is designed for applications in high shock and vibration environments. Integrated with advanced filtering capabilities and robust signal tracking, the Zephyr 3 Rugged can provide the millimeter level accuracy required to enhance your position solution.

Features of the Zephyr 3 Rugged:
Additional Iridium filtering above 1616 MHz allows antenna to be used
as close as 20 m of Iridium transmitter
Additional filtering below 1510 MHz allows for antenna placement
closer to Japanese LTE cell tower
Advanced LNA (low noise amplifier) to reduce interference by high
power out-of-band transmitters
50 dB signal gain for reliable tracking in challenging environments and
long cable runs
Two product versions available for 5/8 – 11 thread and 3 mast
mounting

Trimble Zephyr 3 Rugged Data Sheet

Trimble Antenna Brochure
