Item #: 5012D-U

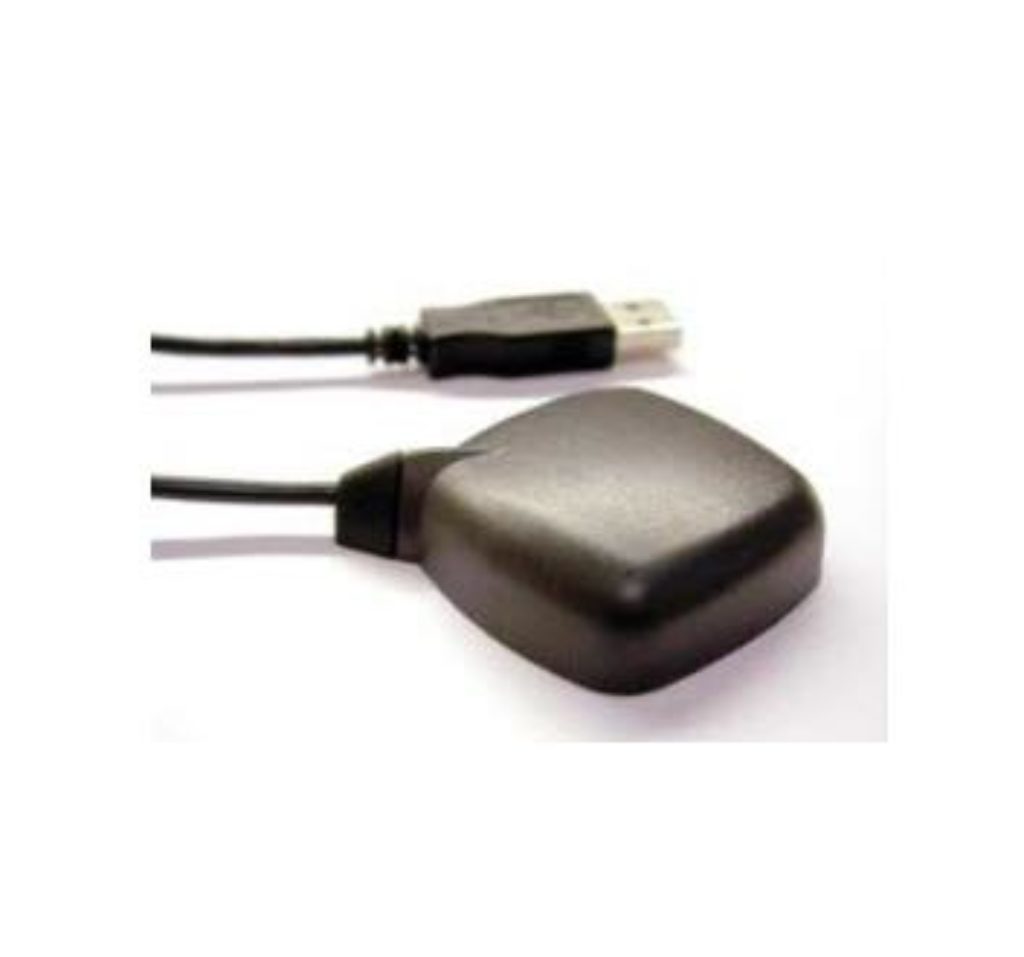

5012D-U Smart GPS Antenna with Integrated Receiver

The PCTEL 5012D-U GPS smart antenna with receiver incorporates a highly sensitive 16-channel, very quick time-to-fix GPS receiver, and a high performance active / filtered GPS antenna.

SKU: 5012D-U Categories: , , Manufacturer: PCTEL

PCTEL 5012D-U Smart GPS Antenna with Integrated Receiver

One of PCTEL’s GPS / aviation special purpose antennas, the 5012D-U GPS Receiver Antenna incorporates a highly sensitive 16-channel, quick time-to-fix GPS receiver, and a high performance active / filtered GPS antenna. It features high performance GPS Engine with embedded flash memory, a Low Noise Amplifi er, SAW fi lter, as well as a precision tuned ceramic patch element for maximum GPS signal reception.

The 5012D-U high sensitivity GPS receiver antenna is housed in a compact, rugged weatherproof magnet or screw mount enclosure.

Features

  • Highly Sensitive: -159dBm tracking
  • Quick Time to Fix: 39 sec cold start
  • 16 channel GPS Engine
  • Standard NMEA 0183 GPS output
  • WAAS and EGNOS supported
  • Low power & standby modes
  • Weatherproof industrial grade enclosure

THIS PRODUCT REPLACED  THE PCTEL 5012D-CE.
