Tallysman ARM972XF Extended Filter Triple-Band GNSS Antenna + L-Band
The ARM972XF triple-band plus L-Band GNSS antenna from Tallysman® Wireless employs Tallysman’s patented Accutenna® technology providing GPS/QZSS L1/L2/L5, GLONASS-G1/G2/G3, Galileo E1/E5a/E5b, and BeiDou B1/B2a/B2b + L-Band coverage. The ARM972XF antenna is designed for precision triple-frequency positioning where lightweight and a low profile are important.

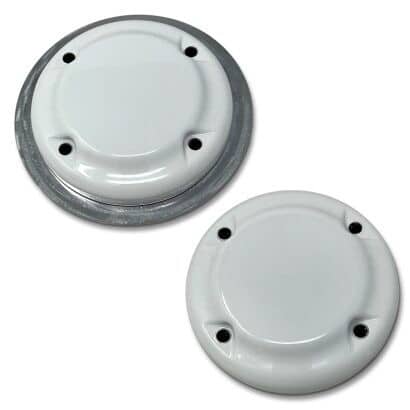

The ARM972XF antenna is available in two form factors, including a 100mm integrated ground plane (weights ~140 grams) and the other one is 83mm in diameter and weighs ~138 grams. Both are ~19mm tall and support the ARINC mini bolt pattern of 2.0” x 1.66”. Tallysman’s ARM972XF is one of the smallest and lightest housed triple-band precision Mini ARINC GNSS antennas on the market. It has a very tight average phase center variation of less than 10mm for all frequencies and overall azimuths and elevation angles.
The new ARM972XF antenna supports Tallysman’s eXtended Filtering (XF) technology. Worldwide the radio frequency spectrum has become congested as many new LTE bands have been activated, and their signals or harmonic frequencies can affect GNSS antennas and receivers.
Features
- Very low noise preamp (< 2.5 dB typ.)
- Tight phase center variation
- High-gain LNA (37 dB typ.)
- Low current (45 mA typ.)
- ESD circuit protection (15 kV)
- Invariant performance from 2.5 to 16 VDC
- IP69K, REACH, RoHS, and S-9401.V1.0 compliant
