TW3070 GPS 40dB Timing Antenna

Item# TW3070

REPLACE BY THE TW3040 / TW3042. SEE BELOW. The TW3070 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional precision timing applications. View Full Description

Category: GNSS
Manufacturer: Tallysman Wireless
Tallysman Wireless







The TW3070 GPS L1 Antenna

PLEASE NOTE: TALLYSMAN WIRELESS HAS CONSOLIDATED ITS PART NUMBERING SYSTEM, WHEN ORDERING THIS PRODUCT PLEASE ORDER TW3040 / TW3042, SINCE THIS IS THE IDENTICAL ANTENNA.

SEE RELATED PRODUCT LINK.

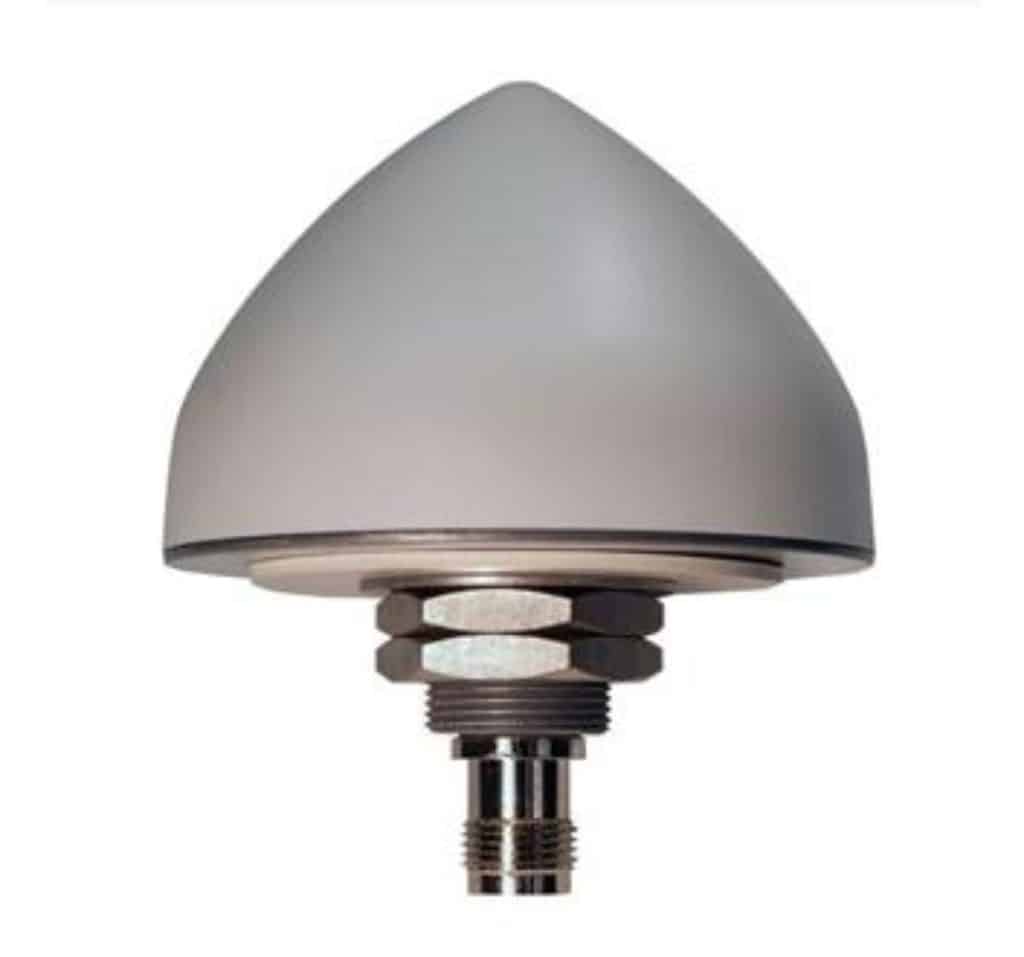

The TW3070 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional precision timing applications.

The TW3070 features a custom high performance, wide band patch element, a 40dB gain LNA stage and a high rejection out-of-band SAW filter. It provides ±10MHz bandwidth centred on 1575.42 MHz and covers the GPS L1, Galileo E1 and SBAS (WAAS/EGNOS/MSAS) signals, and it provides great axial ratio, excellent circular polarized signal reception, great multipath rejection and great out-of- band signal rejection.

The TW3070 is housed in a compact, industrial- grade weather-proof, domed shaped enclosure. Its radome is available in dark gray or white, it comes with a TNC female connector, and a L-bracket for mast mount is available (P/N#23-0040-0).

Features:
  • Great axial ratio
  • Low noise LNA: 1 dB
  • High rejection SAW filter
  • High gain: 40 dB typ.
  • Low current: 15 mA typ.
  • ESD circuit protection: 15 KV
  • Wide voltage input range: 3.0 to 10 VDC
  • Weather proof housing: IP67



TW3000 Family of Products

Connector Options With Cable (max length 5m):

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**


12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**


23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**


















Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
01 = TNC female

** Premiums apply. Please contact NavtechGPS for information and pricing.

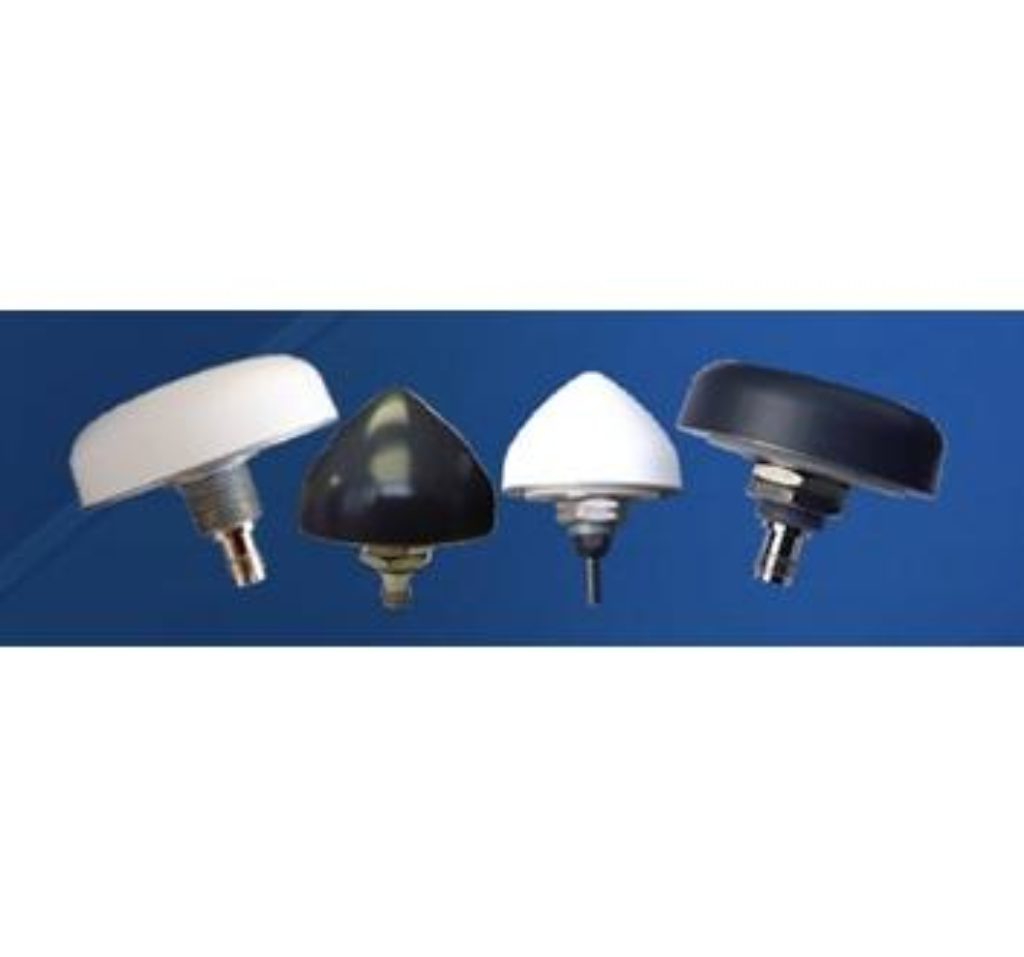

Radome Options:

00=Dark Grey Conical 10=Dark Grey Low Profile 01=White Conical 11=White Low Profile
