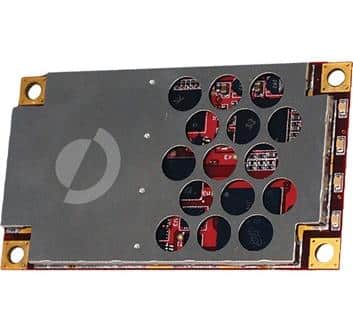

Hemisphere GNSS Eclipse P306 and P307 OEM Modules
We have ONE P307 Board (940-4062-0) in stock and on clearance. It will go fast at this price. When it is gone, it is really gone.
The manufacturer has issued and end of life (EOL) notice for this product. It has been replaced by the Phantom 34/Phantom 20 OEM board.
The Hemisphere GNSS Eclipse™ P306™ and P307™ OEM modules use GPS, GLONASS and BeiDou and are Galileo and QZSS upgradeable. Now you can track more signals with unparalleled positioning performance even in challenging environments. Take advantage of the small size of these modules to leverage your design options.
The 34-pin P306 module is a drop-in upgrade for many Hemisphere products. The P307 is a drop-in upgrade for designs that use the standard 20 pin modules from other manufacturers.
Features
- Uses GPS, GLONASS and BeiDou; Galileo and QZSS ready
- Scalable Eclipse RTK
- Centimeter-level accuracy in single frequency mode
- Fast RTK performance over long distances with multi-frequency multi-constellation GNSS signals
- DGPS AND SBAS WITH COAST AND SURETRACK
- Pin compatible with many Hemisphere and other manufacturers modules
Hemisphere GNSS’ patented COAST software enables Hemisphere receivers to use previous DGPS and SBAS correction data when interference, signal blockage and weak signals are an issue. The receiver will coast and continue to maintain sub-meter positioning for up to 40 minutes without any DGPS signal. When your corrections are only for one GNSS constellation, for example GPS using SBAS, Hemispheres patented SureTrack will model all other satellites, helping to maintain an accurate solution even in challenging environments.
