Item #: MIL-HIALDCBS1X8

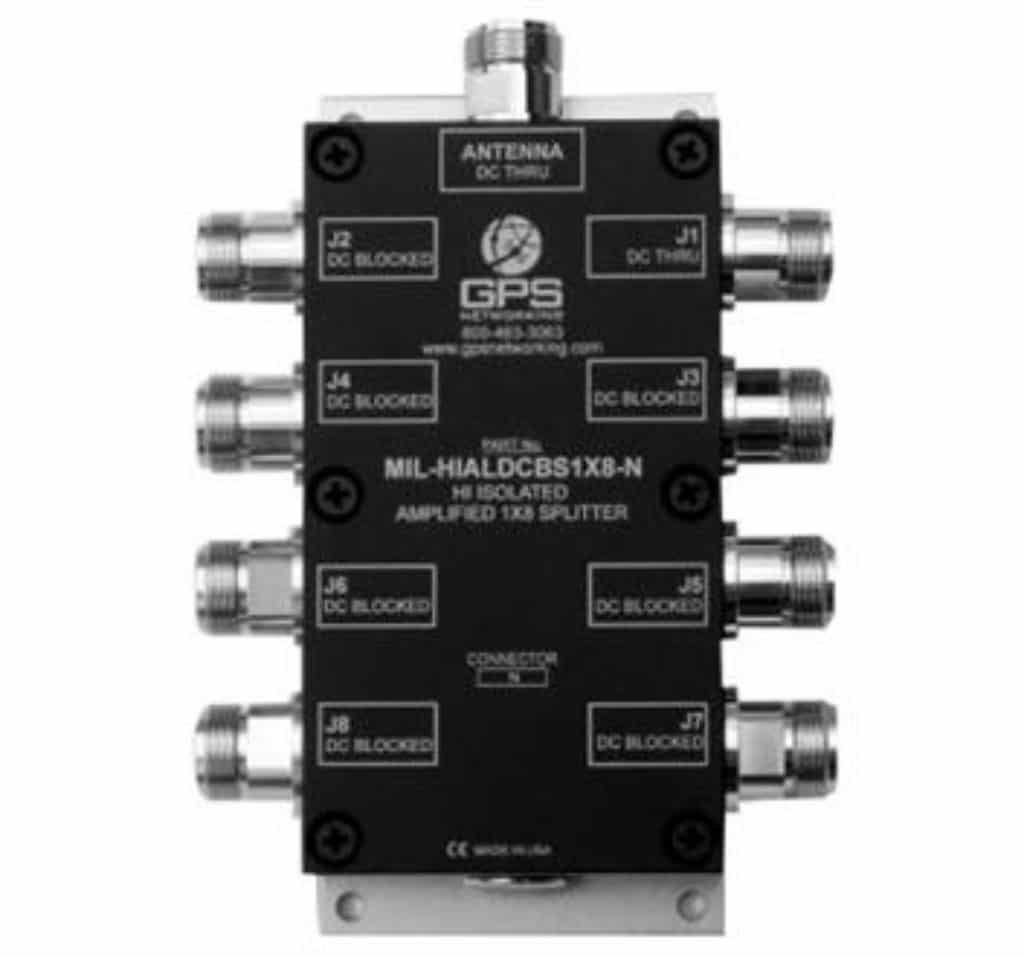

GPS Networking MIL-HIALDCBS1X8 Ruggedized Military Amplified Splitter

$1,425.00

The MIL-HIALDCBS1X8 GPS Splitter (GNSS Splitter) is a one input, eight output high isolated amplified splitter based on the Wilkinson splitter design.

View Full Description
SKU: MIL-{$inject}HIALDCBS1X8 Categories: , , , Manufacturer: GPS Networking

GPS Networking MIL-HIALDCBS1X8 Ruggedized Military Amplified Splitter

The MIL-HIALDCBS1X8 GPS Splitter (GNSS Splitter) is a one input, eight output high isolated amplified splitter based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS Frequencies) with excellent gain flatness. All Mil Spec splitters passed rigorous MIL-STD 810F and MIL-STD 461/462 testing detailed in the separate Qual Test Summary Certification. The MIL-HIALDCBS1X8 is standard hermetically sealed, EMI Shielded, Weatherproofed and configured with MIL-STD-704 or MIL-STD 1275B compliant power options. Each DC blocked output is loaded with a 200O resistor to simulate the antenna current draw to prevent false antenna alarm faults.

These products are specifically designed for military applications and are hermetically sealed, EMI shielded, and virtually indestructible. Please see the documents tab above for certification and testing information.

FEATURES

  • Military Qualified 1×8 Splitter: Mil STD 810F, MIL STD 461/1, MIL STD 704, MIL STD 1275B
  • Excellent Gain Flatness: |J1 – J8| < 1.0dB
  • Extremely Flat Group Delay: Less than 1ns variation
  • Amplifier Gain 4dB typical
  • Passess all GNSS Frequencies (Entire L-band)
  • Phase Matched Outputs: Phase(J1-J8) < 1.0°
  •

We have worked with GPS Networking for many years. They are a quality manufacturer of RF networking and DAS (distributed antenna systems) products. Contact us. We can help you with product specifics and information about connector types and other requirements for your project.

GPS Networking MIL-HIALDCBS1x8 Ruggedized Military Amplified Splitter Data Sheet

Certification and Testing Information



If you chose networking, you must also choose power options. Please review this explanation of your power options.

For military power options, please download this PDF: Military Power Options (MC vs MC28)
