Item #: BT-2DGPS-2DC-TNC

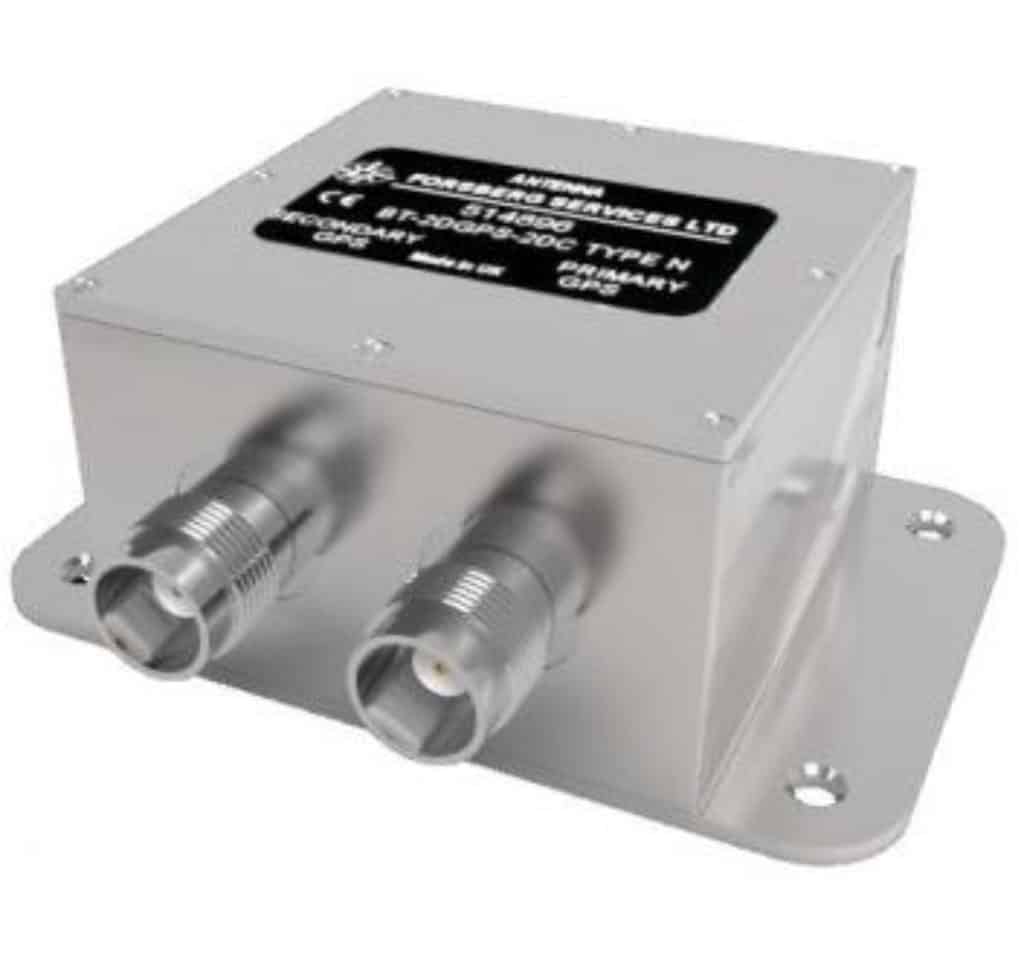

GPS Signal Splitter BT-2DGPS-2DC-TNC

$200.00

The Bias Tee BT-2DGPS-2DC is designed to provide two DGPS receivers with a signal from a single GPS antenna. The DGPS signal splitter can expand the use of a single antenna. This model comes with TNC connectors.

SKU: BT-2DGPS-2DC-TNC Categories: , , Manufacturer: Forsberg Services Ltd.

Forsberg StarLink GPS Signal Splitter, BT-2DGPS-2DC Type TNC

The StarLink GPS Signal Splitter allows you to get more use out of a single antenna by dividing the outgoing signal into two separate GPS receivers with minimal signal loss (<4dB). The signal splitters operate over a frequency that allow the GPS, Inmarsat, Omnistar and DGPS radio Beacon signals to be passed through with efficiency and ease.

There are two connector choices, the Type N and Type TNC. Both are built with rugged components that will perform no matter the operating environment: land, marine or aviation.

Forsberg’s full, one-year limited warranty and 30-day money back guarantee ensures your satisfaction.

SPECIFICATIONS:

  • Model Number: BT-2DGPS-2DC Type TNC
  • Product Name: Prim/Sec Combiner
  • Connection: TNC Female
  • Weight: 4 oz
  • Relative Humidity: 0-95% Non-Condensing
  • Operating Temp: 0°C to 50°C
  • GPS Signal Loss: < 4dB
  • Isolation: >18dB (Typical)
  • Voltage: 3.3V
  • Depth: 1.96?
  • Width: 3.00?
  • Height: 1.25?

Forsberg Services, Ltd., acquired Raven’s StarLink GNSS product line from Raven Industries in April 2015. NavtechGPS is the exclusive North American distributor for the Forsberg StarLink product line.

Forsberg StarLink GNSS Splitters Brochure
