Item #: GPSL1-TMG-SPI-40NCB

GPSL1-TMG-SPI-40NCB

The PCTEL GPSL1-TMG-SPI-40NCB is a timing reference antenna designed for long-lasting, trouble-free deployments in congested cell-site applications. The low noise, high gain amplifier is well suited to address attenuation issues associated with applications requiring longer cable runs. PCTEL’s quadrifiliar helix design, coupled with multi-stage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas.

SKU: GPSL1-TMG-SPI-40NCB Categories: , Manufacturer: PCTEL

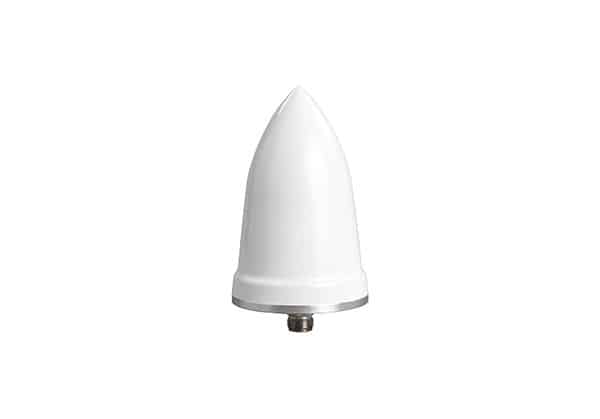

PCTEL GPSL1-TMG-SPI-40NCB GPS Timing Reference Antenna

The GPSL1-TMG-SPI-40NCB from PCTEL is a timing reference antenna specifically designed for long-lasting, trouble-free deployments in congested cell-site applications. The low noise, high gain amplifier is well suited to address attenuation issues associated with applications requiring longer cable runs. PCTEL’s quadrifiliar helix design and multi-stage filtering provides superior out-of-band rejection and lower elevation pattern performance than traditional patch antennas.

The radome shape sheds water and ice, while eliminating problems associated with bird perching. The antenna comes with surge compliant mounting that addresses industry grounding requirements. Custom models or site kit options are also available.

This antenna is made of materials that fully comply with provisions stipulated by EU directives RoHS 2002/95/EC. The antenna provides integrated, on-board lightning protection capability that alleviates the need for downstream, in-line surge suppressors. The antenna also features ESD, reverse polarity protection and transit voltage suppression.

PCTEL GPSL1-TMG-SPI-40NCB GPS Timing Reference Antenna Datasheet
