Item #: V104

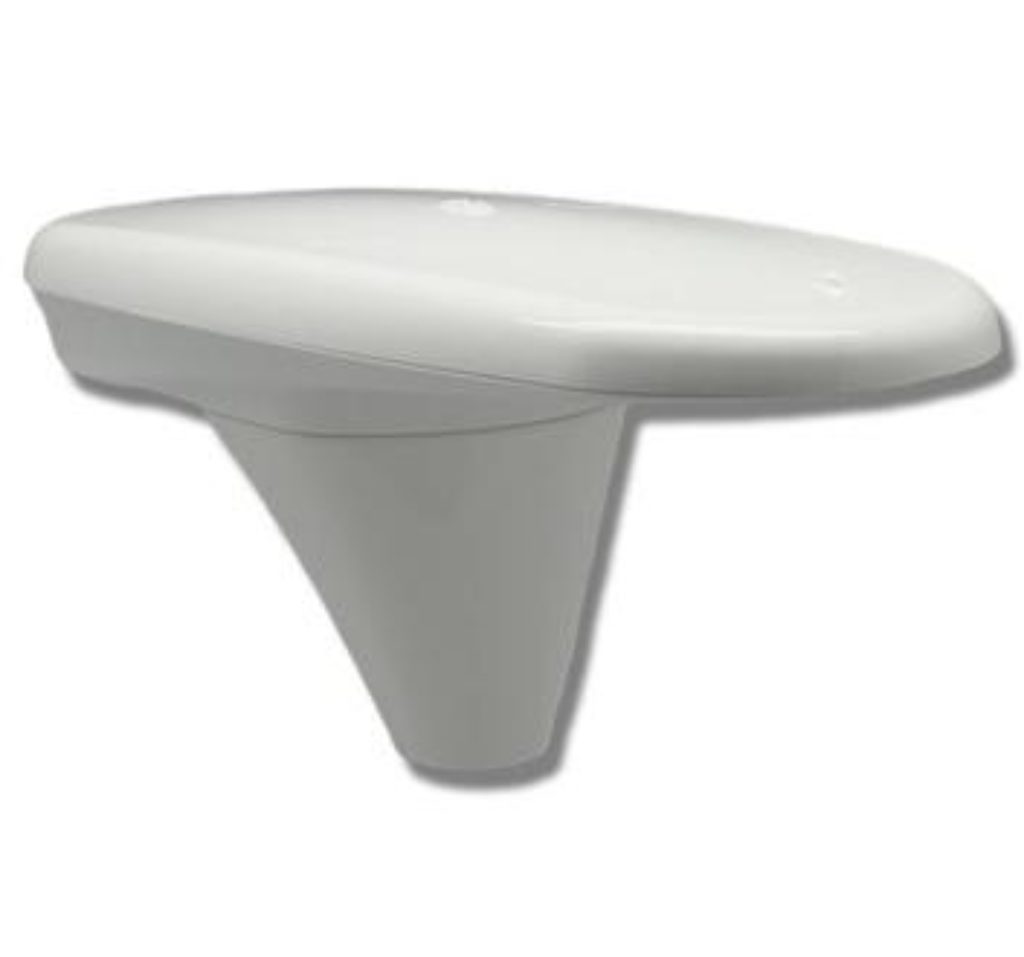

Hemisphere Vector V104N GPS Compass

$1,195.00

We have limited V104N antennas (940-3098-0) in stock and on clearance. This will go fast at this price. When it is gone, it is really gone.

The manufacturer has issued and end of life (EOL) notice for this product, this product has been replaced by the V200.

The Vector V104â„¢ GPS Compass offers accurate heading and positioning performance. It uses SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS positioning to make the V104 a highly effective heading and position based smart antenna.

SKU: 940-3098-0 Categories: , , , , Manufacturer: Hemisphere GNSS

Hemisphere Vector V104 GPS Compass

We have limited V104N antennas (940-3098-0) in stock and on clearance. This will go fast at this price. When it is gone, it is really gone.

The manufacturer has issued and end of life (EOL) notice for this product, this product has been replaced by the V200.

The V104 GPS Compass from Hemisphere GNSS provides a heading-and-position-based smart antenna by using SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS positioning. The rugged and low-profile enclosure combines Hemisphere’s Crescent® Vector technology and two multi-path resistant antennas for accuracy and portability. The smart antenna measures less than a half meter in length and mounts easily to a flat surface or pole.

The V104 integrates two GPS antennas, a multi-axis gyro and a tilt sensor into a single, easy-to-use system. The dual integrated antennas provide both heading and position data, and the gyro and tilt sensor improve system performance and provide backup heading information if the GPS-based heading is ever lost.

An alternative to traditional gyro and fluxgate compass sensors, the Vector V104 offers a choice of either serial or NMEA2000 communications and is ideal for a wide array of applications, especially in the marine, GIS Mapping, and machine control markets.



Features

  • Provides heading, pitch, roll, heave and position
  • Excellent in-band and out-of-band interference rejection
  • 2 degree (RMS) heading accuracy in a small form factor
  • Integrated gyro and tilt sensors deliver fast start-up times and provide heading updates during temporary loss of GPS and satellites
  • Differential position accuracy of 1 m, 95% of the time
  • Accurate heading for up to 3 minutes during GNSS outages
  • COAST technology maintains differentially corrected positioning for 40 minutes or more after loss of differential signal
  • Offered as a Serial or NMEA 2000 version
Models
940-3093-0 Vector V104S Smart Antenna: Standard configuartion: L1 GPS, 10 Hz, Raw data , Serial interface (cable must be purchased separately)

940-3098-0 Vector V104N Smart Antenna: Standard configuartion: L1 GPS, 10 Hz, Raw data , NMEA 2000. Interfaces with standard NMEA2K cable (cable must be purchased separately)

Cables
051-0372-0: 4.5m, V104 Serial Cable (Terminated)
051-0377-0: 15m, V104 Serial Cable (Unterminated)


End of Life notice for the Vector V104 GPS Compass
