Crescent Vector H200
The manufacturer has issued and end of life (EOL) notice for this product. It has been replaced by the H220.
Hemisphere GNSS is discontinuing the Crescent Vector H200 in March 2018. It is being replaced by the Crescent Vector™ H220™ GNSS module.

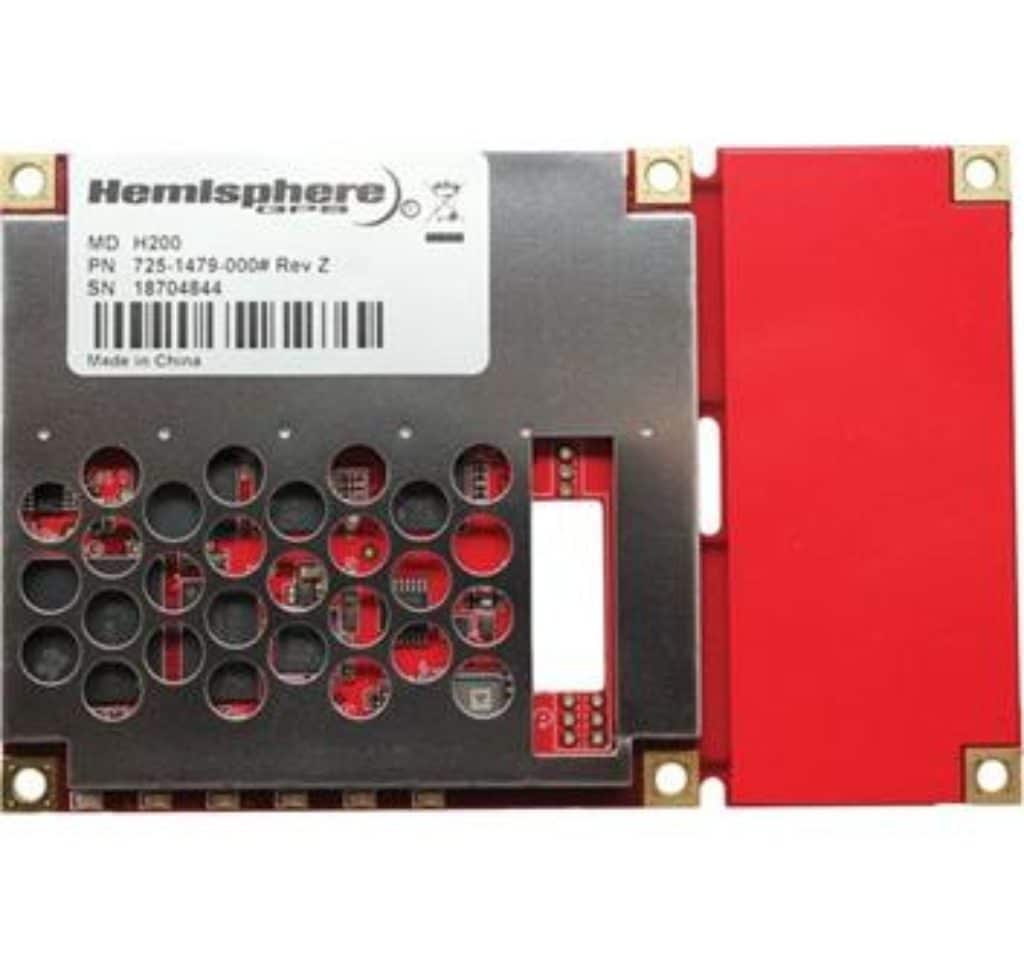

The Crescent Vector™ H200™ GNSS module is the next generation, single frequency, high-performance GNSS heading and positioning module from Hemisphere. The H200 is GLONASS capable, has RTK, a low profile, an improved gyro and tilt sensor and is a drop-in replacement for the Crescent Vector II.
This GNSS H200 module gives integrators an opportunity to develop sophisticated marine, navigation and land applications in challenging and dynamic environments. The H200 module uses Hemisphere’s advancements in Vector technology, advanced multipath mitigation techniques and Hemisphere’s patented Multifunction Application.
The H200 is capable of providing heading of 0.02 degrees with a 5-meter antenna baseline and either RTK1, L-Band 1 or SBAS positioning, depending on your location requirements.
Integrate this robust module into your applications for exceptional heading, positioning and attitude performance in a compact size. Cost savings and diversity make this an ideal solution for system integrators.
Key Crescent Vector H200 Module Advantages:
- Extremely accurate heading with short baselines
- L1 GPS/GLONASS RTK capable
- Lband capable (LX-2 module required)
- Fast RTK acquisition and reacquisition times
- Excellent coasting performance
- 10 cm heave accuracy with RTK
- Strong multipath mitigation and interference rejection
