Item #: V102

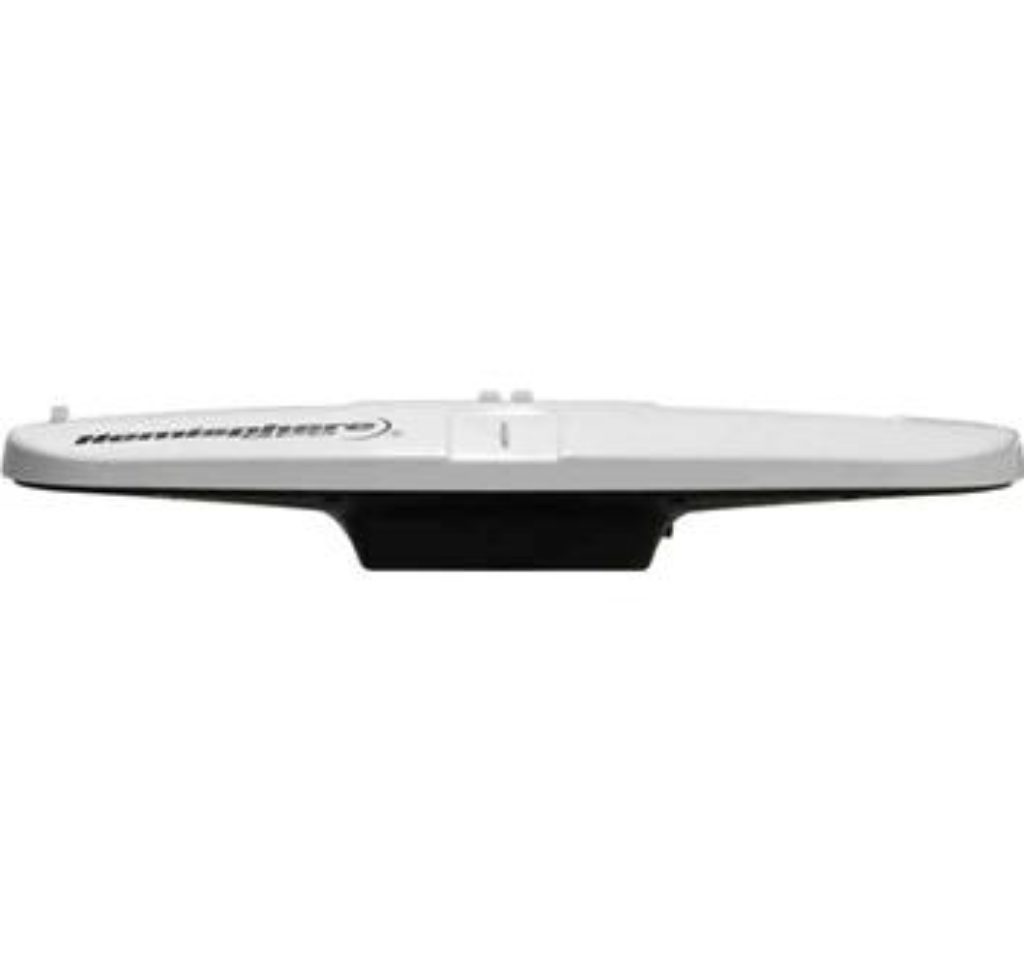

Hemisphere GPS V102 DGPS Heading Smart Antenna

Experience superior navigation from the accurate heading and positioning performance available with the Vector™ V102™ GPS compass. The Vector V102 uses SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS positioning making this a low cost and highly effective heading and position based smart antenna.

SKU: 940-3049-000 Categories: , , , Manufacturer: Hemisphere GNSS

Vector™ V102™ GPS Compass

The V102 from Hemisphere GNSS is a general navigation heading and positioning compass.   The Vector V102 uses SBAS (WAAS, EGNOS, MSAS, etc.) for differential GPS positioning allowing Hemisphere GPS to provide a low cost and highly effective heading and position based smart antenna.

The rugged and low profile enclosure combines Hemisphere GPS Crescent Vector II OEM technology and two multipath-resistant antennas for accuracy, portability and simple installation. The smart antenna,  measuring less than half-meter in length, mounts easily to a flat surface or pole. The stability and maintenance-free design of the Vector V102 provides traditional GPS positioning and heading at a low cost.




KEY FEATURES
  • Provides heading, positioning, heave, roll, and pitch
  • Excellent in-band and out-of-band interference rejection
  • 0.75 degree heading accuracy in an amazingly small form factor
  • Differential positioning accuracy of 1.0 m, 95% of the time
  • Integrated gyro and tilt sensors help deliver fast start-up times and provide heading updates during temporary loss of satellites
  • Accurate heading up to 3 minutes during GNSS outages
  • COAST™ technology maintains differentially corrected positioning for 40 minutes or more after loss of differential signal



160-0209-000 Crescent Vector - 20 Hz (Activation)
