MLDCBS1X2 Mini GPS Splitter

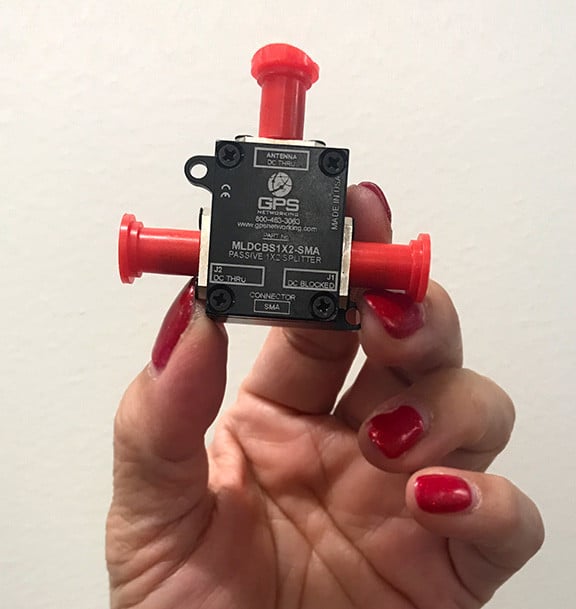

The MLDCBS1X2 GPS Splitter is probably the smallest splitter anywhere.

View Full Description
SKU: MLDCBS1x2 Categories: , , Manufacturer: GPS Networking

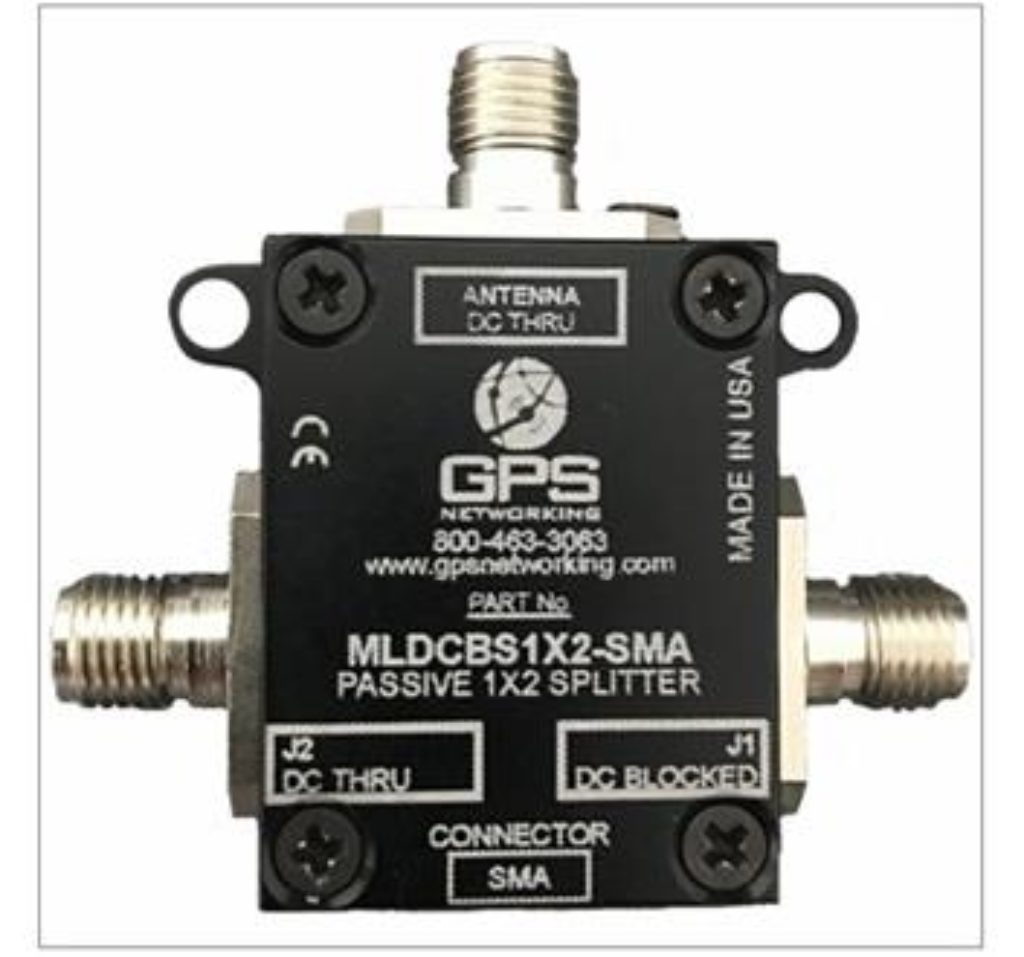

GPS Networking MLDCBS1X2 Mini Splitter

The GPS Networking MLDCBS1X2 Mini GPS Splitter (GNSS Splitter) is a small, lightweight one input, two output device based on the Wilkinson splitter design. The frequency response covers the entire L-band (all GNSS Frequencies) with excellent gain flatness. In the standard configuration, (J1) passes DC from the connected GPS device through the splitter to the input (antenna port). The other RF output (J2) is DC blocked and loaded with a 200Ω resistor to simulate the antenna current draw to prevent false antenna alarm faults. Available with SMA or SMB connectors.


  • Amplitude Balance
  • | J1-J2 | < 1.0dB
  • Extremely Flat Group Delay
  • Less than 1ns variation
  • Low Insertion Loss
  • Passes all GNSS Frequencies (Entire L-band)
  • DC Blocked Outputs Feature 200Ω Antenna Simulator Loads
  • Phase Matched Outputs- Phase (J1-J2) < 1.0°

GPS Networking MLDCBS1x2 Mini GPS Splitter

If you chose networking, you must also choose power options. Please review this explanation of your power options.

For military power options, please download this PDF: Military Power Options (MC vs MC28)
