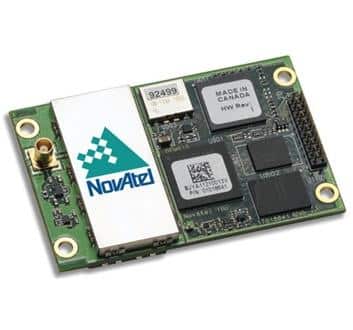

NovAtel OEM615 Dual-Frequency Receiver
Item #: OEM615

NovAtel OEM615 Series Receivers

The manufacturer has issued an end of life (EOL) notice for this product. We have a limited number still in stock. Contact us for details. Once these are gone, they are gone for good! NovAtel has replaced this product with the OEM 719.

The OEM615 Dual-Frequency GNSS Receiver from NovAtel is compact and powerful, measuring only 71×46 mm and consuming less than 1.0 Watt to deliver high performance GNSS positioning. The OEM615 features 120 dynamic channels configurable for optimized single- or dual-frequency GPS and GLONASS satellite signal tracking.

Discontinued - contact us
SKU: OEM615 Categories: , , Manufacturer: NovAtel

OEM615 Dual-Frequency Receiver

The manufacturer has issued an end of life (EOL) notice for this product. We have a limited number still in stock. Contact us for details. Once these are gone, they are gone for good! NovAtel has replaced this product with the OEM 719.

The OEM615 series receivers are compact GNSS receivers with RTK functionality. The dual-frequency, GPS GLONASS OEM615 offers future-ready, precise positioning for space-constrained applications. The backward compatibility of the OEM615 with NovAtels popular OEMV-1 form factor provides an efficient way to bring powerful GPS-GLONASS capable products to market. As with all NovAtel OEM6 series receivers, the OEM615 is ready for existing and planned GPS, GLONASS, Galileo and Compass signals.

The OEM615 is configurable with GPS or GPS GLONASS GNSS capabilities. Adding GLONASS tracking increases available positions in obstructed sky conditions, increasing field productivity. The OEM615 also supports L2C that provides stronger signal tracking and better cross correlation protection for better solution availability in low signal strength applications.

The OEM615 tracks all current and upcoming GNSS constellations and satellite signals including GPS, GLONASS, Galileo, BeiDou and QZSS. It features configurable channels to optimize satellite availability in any condition, no matter how challenging. The OEM615 is software upgradable to track future signals as they become available. Maximizing satellite availability and optimizing GNSS signal usage now, and in the future, ensures consistent, high performance GNSS positioning.

Features
  • Sub-meter to centimeter-level positioning
  • Increased satellite availability with GLONASS tracking
  • L1, L2, L2C, B1 and E1 signal tracking
  • GLIDE smoothing algorithm
  • RT-2®, ALIGN and RAIM firmware options
  • SPAN® INS functionality
Benefits
  • Proven NovAtel technology
  • Easy to integrate
  • Low power consumption
  • API reduces hardware requirements and system complexity

L1L2 DUAL FREQUENCY
OEM615-C2S-B0G-TT0------GPS+BEIDOU+GLONASS, L1/L2/B1, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-C2S-R0G-TT0------ GPS+BEIDOU+GLONASS, L1/L2/B1, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-C2S-Y0G-TT0------ GPS+BEIDOU+GLONASS, L1/L2/B1, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-C2S-Z00-000------ GPS+BEIDOU+GLONASS, L1/L2/B1, SBAS, DGPS, ALIGN Heading
OEM615-D2Q-B0G-TT0------ GPS+GLONASS, L1/L2, SBAS/QZSS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-D2Q-BPG-TT0------ GPS+GLONASS, L1/L2, SBAS/QZSS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-D2S-B0G-TT0------ GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-D2S-B0R-TT0------ GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions
OEM615-D2S-BPG-TT0------ GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-D2S-BPR-TT0------ GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions
OEM615-D2S-RPG-TT0------ GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-D2S-RPG-TT0-A------ GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions, API
OEM615-D2S-RPR-TT0------ GPS+GLONASS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions
OEM615-D2S-YPG-TT0------ GPS+GLONASS, L1/L2, SBAS, DGPS, ALIGN Relative Positioning, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-D2S-Z00-000------ GPS+GLONASS, L1/L2, SBAS, DGPS, ALIGN Heading
OEM615-G2Q-RPG-TT0------ GPS, L1/L2, SBAS/QZSS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-G2S-B0G-F10------ GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 50 Hz Measurements, 1 Hz Positions
OEM615-G2S-B0G-TT0------ GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-G2S-B0R-TT0------ GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions
OEM615-G2S-BPG-TT0------ GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-G2S-BPR-TT0------ GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base, NovAtel CORRECT PPP, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions
OEM615-G2S-RPG-TT0------ GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-G2S-RPR-TT0------ GPS, L1/L2, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, NovAtel CORRECT PPP, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions
OEM615-G2S-YPG-TT0------ GPS, L1/L2, SBAS, DGPS, ALIGN Relative Positioning, NovAtel CORRECT PPP, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-G2S-Z00-000------ GPS, L1/L2, SBAS, DGPS, ALIGN Heading
OEM615-P2S-B0G-TT0------ GPS+BEIDOU, L1/L2/B1, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-P2S-R0G-TT0------ GPS+BEIDOU, L1/L2/B1, SBAS, DGPS, NovAtel CORRECT RT-2 Base/Rover, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-P2S-Y0G-0T0------ GPS+BEIDOU, L1/L2/B1, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Positions
OEM615-P2S-Y0G-TT0------ GPS+BEIDOU, L1/L2/B1, SBAS, DGPS, ALIGN Relative Positioning, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-T2S-B0G-TT0------ GPS+GLONASS+GALILEO, L1/L2/E1, SBAS, DGPS, NovAtel CORRECT RT-2 Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-T2S-BPG-TT0------ GPS+GLONASS+GALILEO, L1/L2/E1, SBAS, DGPS, NovAtel CORRECT PPP, Gl1DE, 20 Hz Measurements, 20 Hz Positions

SINGLE FREQUENCY
OEM615-D1S-00G-0T0------ GPS+GLONASS, L1, SBAS, DGPS, GL1DE, 20 Hz Positions
OEM615-D1S-00G-110------ GPS+GLONASS, L1, SBAS, DGPS, GL1DE, 1 Hz Measurements, 1 Hz Positions
OEM615-D1S-B0G-TT0------ GPS+GLONASS, L1, SBAS, DGPS, L1 Only Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-G1S-00G-0F0------ GPS, L1, SBAS, DGPS, GL1DE, 50 Hz Positions
OEM615-G1S-00G-0T0------ GPS, L1, SBAS, DGPS, GL1DE, 20 Hz Positions
OEM615-G1S-00R-0T0------ GPS, L1, SBAS, DGPS, GL1DE/RAIM, 20 Hz Positions
OEM615-G1S-B0G-TT0------ GPS, L1, SBAS, DGPS, L1 Only Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-P1S-B0G-TT0------ GPS+BEIDOU, L1/B1, SBAS, DGPS, L1 Only Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-T1S-B0G-TT0------ GPS+GLONASS+GALILEO, L1/E1, SBAS, DGPS, L1 Only Base, GL1DE, 20 Hz Measurements, 20 Hz Positions
OEM615-T1S-B0R-TT0 ------ GPS+GLONASS+GALILEO, L1/E1, SBAS, DGPS, L1 Only Base, GL1DE/RAIM, 20 Hz Measurements, 20 Hz Positions
OEM615-W1S-B0G-TT0------ GPS+GALILEO, L1/E1, SBAS, DGPS, L1 Only Base, GL1DE, 20 Hz Measurements, 20 Hz Positions


These models have been updated. Please refer to the Models tab for current model numbers.

L1L2 Dual-Frequency

OEM615-D2s-R0G-TT0        GPS plus GLONASS 1cm real-time kinematic positions, RT-2 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-G2S-R0G-TT0        GPS 1cm real-time kinematic positions, RT-2 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-D2S-B0G-TT0        GPS plus GLONASS RT-2 corrections and raw data, code positions, and DGPS, SBAS, 20 Hz

OEM615-G2S-B0G-TT0        GPS RT-2 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-D2S-00G-0T0         GPS L1/L2 plus GLONASS L1/L2 code positions and DGPS, SBAS, 20 Hz

OEM615-G2S-00G-0T0         GPS L1/L2 SBAS positions, 20 Hz

OEM615-D2S-Y0G-TT0         GPS+GLONASS L1/L2, SBAS, ALIGN Relative Positioning, No baseline length limitation, GL1DE, 20 Hz Measurement Output, 20 Hz Position Output

OEM615-G2S-Y0G-TT0        GPS L1/L2, SBAS, ALIGN Relative Positioning, No baseline length limitation, GL1DE, 20 Hz Measurement Output, 20 Hz Position Output

OEM615-D2S-Y0G-TT0        GPS+GLONASS L1/L2, SBAS, ALIGN Relative Positioning, No baseline length limitation, GL1DE, No Measurement Output, 20 Hz Position Output

OEM615-G2S-Y0G-0T0         GPS L1/L2, SBAS, ALIGN Relative Positioning, No baseline length limitation, GL1DE, No Measurement Output, 20 Hz Position Output

OEM615-D2S-Z00-000          GPS+GLONASS L1/L2, SBAS, ALIGN Heading, No baseline lenght limitation, 20 Hz

OEM615-G2S-Z00-000          GPS L1/L2, SBAS, ALIGN Heading, No baseline length limitation, 20 Hz



Single-Frequency

OEM615-D1S-R3G-TT0        GPS plus GLONASS 2cm real-time kinematic positions, RTK corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-D1S-F0G-TT0         GPS plus GLONASS 20 cm real-time kinematic positions, RT-20 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-G1S-F0G-TT0        GPS 20cm real-time kinematic positions, RT-20 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-T1S-B0R-TT0         GPS plus GLONASS plus Galileo, RT-2L1TE corrections and raw data, code positions and DGPS, SBAS, RAIM, 20 Hz

OEM615-T1S-B0G-TT0         GPS plus GLONASS plus Galileo, RT-2L1TE corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-D1S-B0G-TT0         GPS plus GLONASS, RT-2L1TE corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-W1S-B0G-TT0        GPS plus Galileo, RT-2L1TE corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-G1S-B0G-TT0         GPS RT-20 corrections and raw data, code positions and DGPS, SBAS, 20 Hz

OEM615-D1S-Y3G-TT0         GPS+GLONASS L1, SBAS, ALIGN Relative Positioning, 3km Baseline length limitation, GL1DE, 20 Hz Measurement Output, 20 Hz Position Output

OEM615-D1S-Y3G-0T0         GPS+GLONASS L1, SBAS, ALIGN Relative Positioning, 3km Baseline length limitation, GL1DE, No Measurement Output, 20 Hz Position Output

OEM615-D1S-00G-0T0         GPS plus GLONASS code positions and DGPS, SBAS, 20 Hz

OEM615-G1S-00R-0T0         GPS code positions and DGPS, SBAS, 20 Hz, RAIM support

OEM615-G1S-00G-0T0         GPS code positions and DGPS, SBAS, 20 Hz

OEM615-D1S-Z30-000          GPS+GLONASS L1, SBAS, ALIGN Heading, 3km Baseline length limitation, 20 Hz



NovAtel OEM 615 Series GNSS Receiver EOL Notice
