Item #: OEMSTAR

NovAtel OEMStar Receivers

OEM Start low power, low cost, single-frequency cards, ideal for cost and size constrained applications.

SKU: OEMSTAR Categories: , , Manufacturer: NovAtel

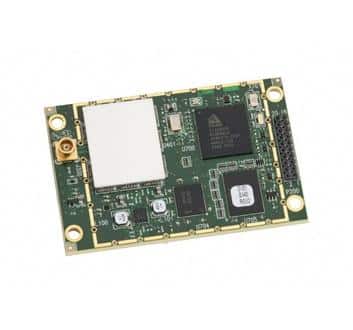

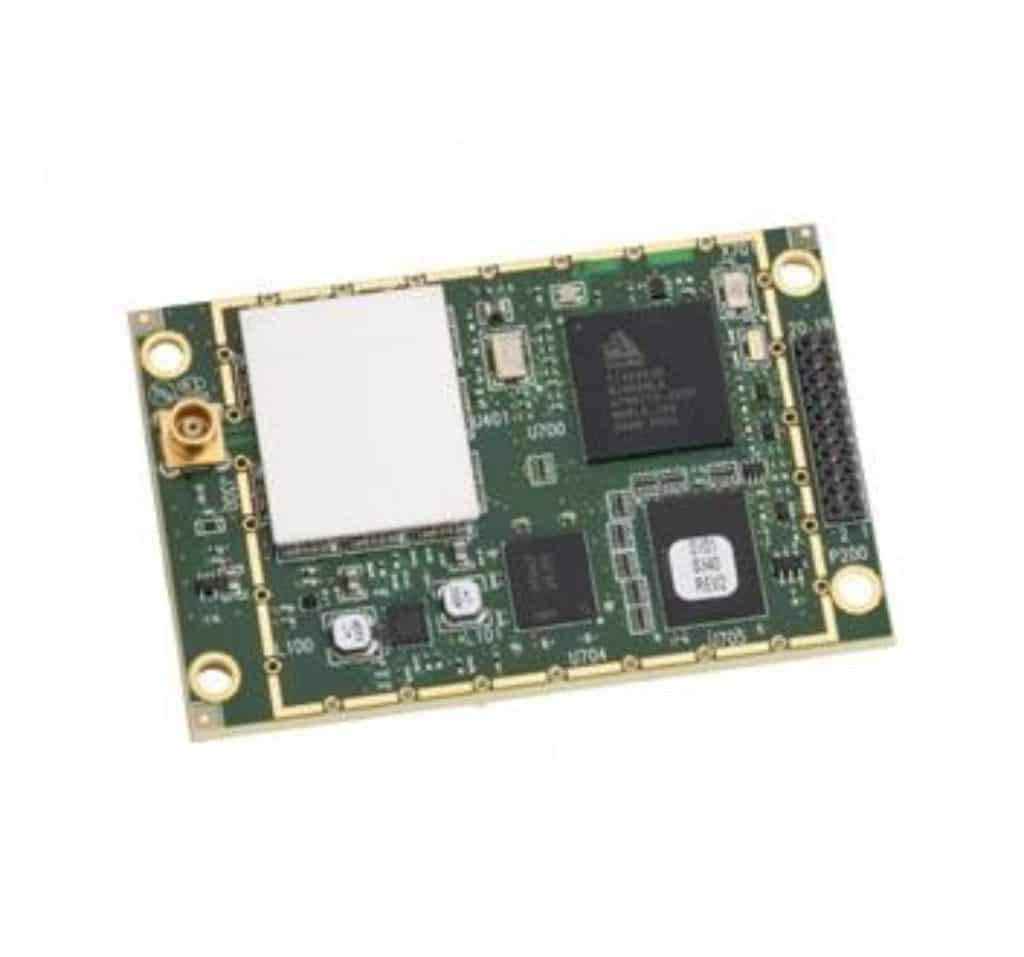

NovAtel OEMStar

The OEMStar is a 14 channel, single frequency GPS plus GLONASS L1 receiver with low power consumption. All OEMStar receivers offer position, velocity and time (PVT) output, real-time DGPS positioning, support for RTCA and RTCM messages, two serial ports, and a USB port. The OEMStar can be upgraded to offer GPS plus GLONASS real-time positions & measurements, and 10Hz output depending on which model is purchased. The addition of GLONASS satellites provides more available data for positioning in challenging environments.

The OEMStar receiver has the same form factor as NovAtels OEMV-1 series receivers and uses the OEMV style command interface. This allows you to easily integrate the OEMStar into existing OEMV-1 series systems. The OEMStar uses SBAS corrections from services such as WAAS and EGNOS.


FEATURES

  • Small form factor
  • Very low power consumption
  • GLIDE firmware option
  • API firmware option
  • Receiver Autonomous Integrity
  • Monitoring (RAIM) firmware option

Single-Frequency

OEMSTAR-10HZ-G-I GPS plus GLONASS code positions and raw data, SBAS, 10Hz, GL1DE, RAIM
OEMSTAR-10HZ-I GPS code positions and raw data, SBAS, 10Hz, GL1DE, RAIM
OEMSTAR-10HZ-G-A GPS plus GLONASS code positions and raw data, SBAS, 10Hz, GL1DE, API
OEMSTAR-10HZ-A GPS code positions and raw data, SBAS, 10Hz, GL1DE, API
OEMSTAR-10HZ-D-G GPS plus GLONASS code positions and raw data, DGPS code corrections transmit, SBAS, 10Hz, GL1DE
OEMSTAR-10HZ-G GPS plus GLONASS code positions and raw data, SBAS, 10Hz, GL1DE
OEMSTAR-10HZ-D GPS code positions and raw data, DGPS code corrections transmit, SBAS, 10Hz, GL1DE
OEMSTAR-PVT-10HZ-G GPS plus GLONASS code positions, SBAS, 10Hz
OEMSTAR-10HZ GPS code positions and raw data, SBAS, 10HZ, GL1DE
OEMSTAR-PVT-10HZ GPS code positions only, SBAS, 10Hz
OEMSTAR-1HZ-D-G GPS plus GLONASS code positions and raw data, DGPS code corrections transmit, SBAS, 1 Hz, GL1DE
OEMSTAR-1HZ-G GPS plus GLONASS code positions and raw data, SBAS, 1Hz, GL1DE
OEMSTAR-1HZ-D GPS code positions and raw data, DGPS code corrections transmit, SBAS, 1 Hz, GL1DE
OEMSTAR-PVT-1HZ-G GPS plus GLONASS code positions only, SBAS, 1 Hz
OEMSTAR-1HZ GPS code positions and raw data, SBAS, 1HZ, GL1DE
OEMSTAR-PVT-1HZ GPS code positions only, SBAS, 1Hz


OEMStar RA Card

Single-Frequency

OEMSTAR-RA-10HZ-G-A GPS and GLONASS code positions and raw data, SBAS, 10Hz, GL1DE, API, Right Angle RF
OEMSTAR-RA-10HZ-A GPS code positions and raw data, SBAS, 10Hz, GL1DE, API, Right Angle RF
OEMSTAR-RA-10HZ-D-G GPS and GLONASS code positions and raw data, DGPS code corrections transmit, SBAS, 10Hz, GL1DE, API, Right Angle RF
OEMSTAR-RA-10HZ- G GPS and GLONASS code positions and raw data, SBAS, 10Hz, GL1DE, Right Angle RF
OEMSTAR-RA-10HZ-HZ GPS code positions and raw data, SBAS, 10Hz, GL1DE, Right Angle RF
OEMSTAR-RA-PVT-1HZ GPS code positions only, SBAS, 1Hz, Right Angle RF
