Item #: Onyx

Onyx Integrated StarFire Board

John Deere has discontinued the manufacturer and sale of ALL hardware products under the NAVCOM brand effective June 30, 2020. NavtechGPS carries many other hardware brands that can perform the same types of tasks. Contact us for options.

The NavCom Onyx OEM Board offers durability and reliability for precise point positioning system integration. StarFireâ„¢ is supported on 3-separate channels providing on-board capability for tracking redundant or enhanced signals.

SKU: Onyx Categories: , , Manufacturer: NavCom Technologies

ONYX StarFireâ„¢ OEM Board

John Deere has discontinued the manufacturer and sale of ALL hardware products under the NAVCOM brand effective June 30, 2020.

Product purchased prior to June 30 are deliverable through October 31, 2020.

Signal Subscriptions Purchased After June 30:
You can still purchase signal subscriptions for your SF-3050 and SF-5050 series hardware from John Deere after June 30, 2020. HOWEVER, You will need to upgrade your SF-3050 and SF-5050 series firmware before the end of 2020 in order to keep using the existing signals. The signal structure will change at that point and the free upgrade will be required. For further information please visit www.navcomtech.com.

End of Technical Support:
SF3050 – April 30, 2024;
SF5050 – October 31, 2025

NavtechGPS carries many other hardware brands that can perform the same types of tasks should you want to switch to a brand that will continue past the above deadlines.

The NavCom Onyx board offers a GNSS engine with 255 channel tracking, including multi-constellation support for GPS, GLONASS, Beidou and Galileo. It also had built-in patented interference rejection and anti-jamming capabilities. The Onyx GNSS OEM board is a fully upgradeable GNSS receiver.

Integrated with StarFire’s  five centimeter global accuracy makes Onyx ideal for high accuracy surveying, control and guidance of mobile platforms. The Onyx offers durability and reliability for precise point positioning system integration. StarFireâ„¢ is supported on 3-separate channels providing on-board capability for tracking redundant or enhanced signals.

FEATURES

  • All-in-view parallel tracking with 255 channels
  • Patented multipath rejection
  • Built-in 3-channel StarFireâ„¢ receiver and demodulator
  • SBAS (WAAS/EGNOS/MSAS/GAGAN) tracking
  • RTK Accuracy (<40km):
  •     1cm 0.5ppm Horizontal / 2cm 1ppm Vertical
  • StarFire Accuracy:
  •     <5cm Horizontal / <10cm Vertical
  • Code DGPS Accuracy (<200kms):
  •     45cm 3ppm Horizontal / 90cm 3ppm Vertical
  • Velocity: 0.01ms

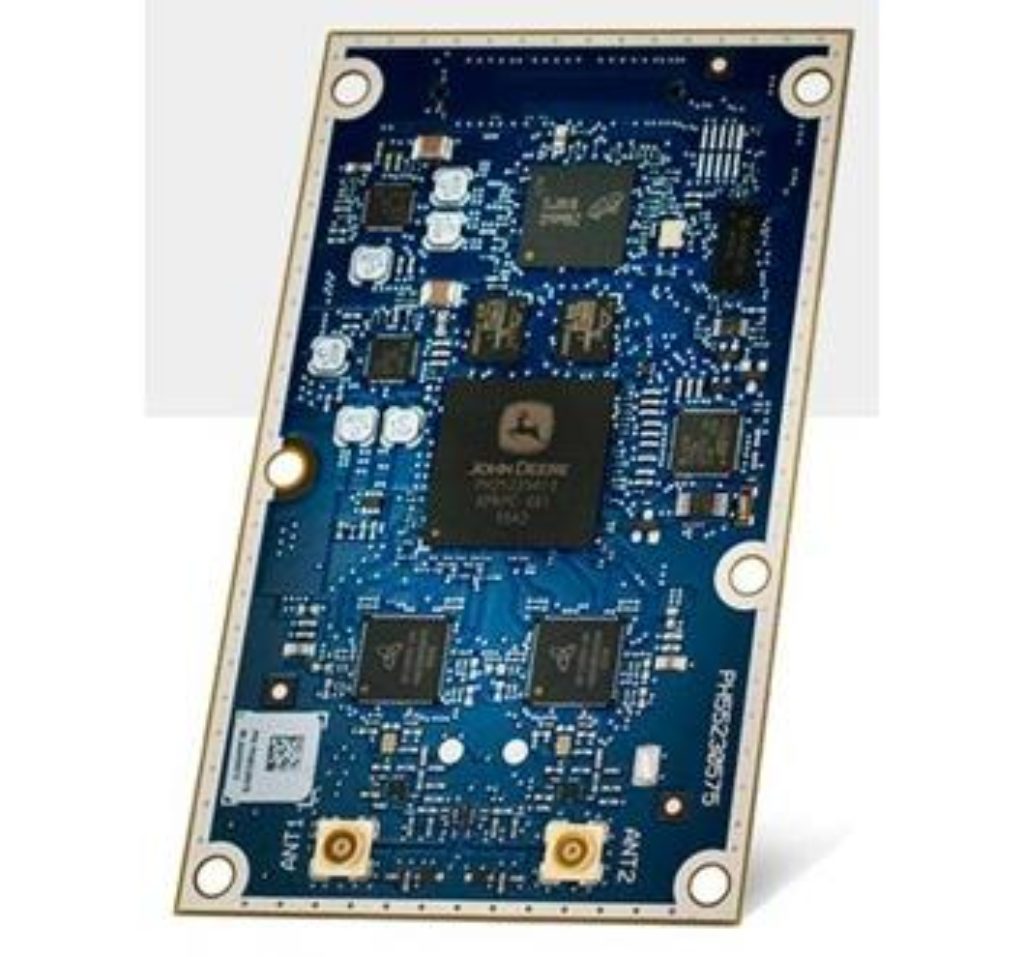

The Onyx OEM Board from NavCom with StarFire Integration
