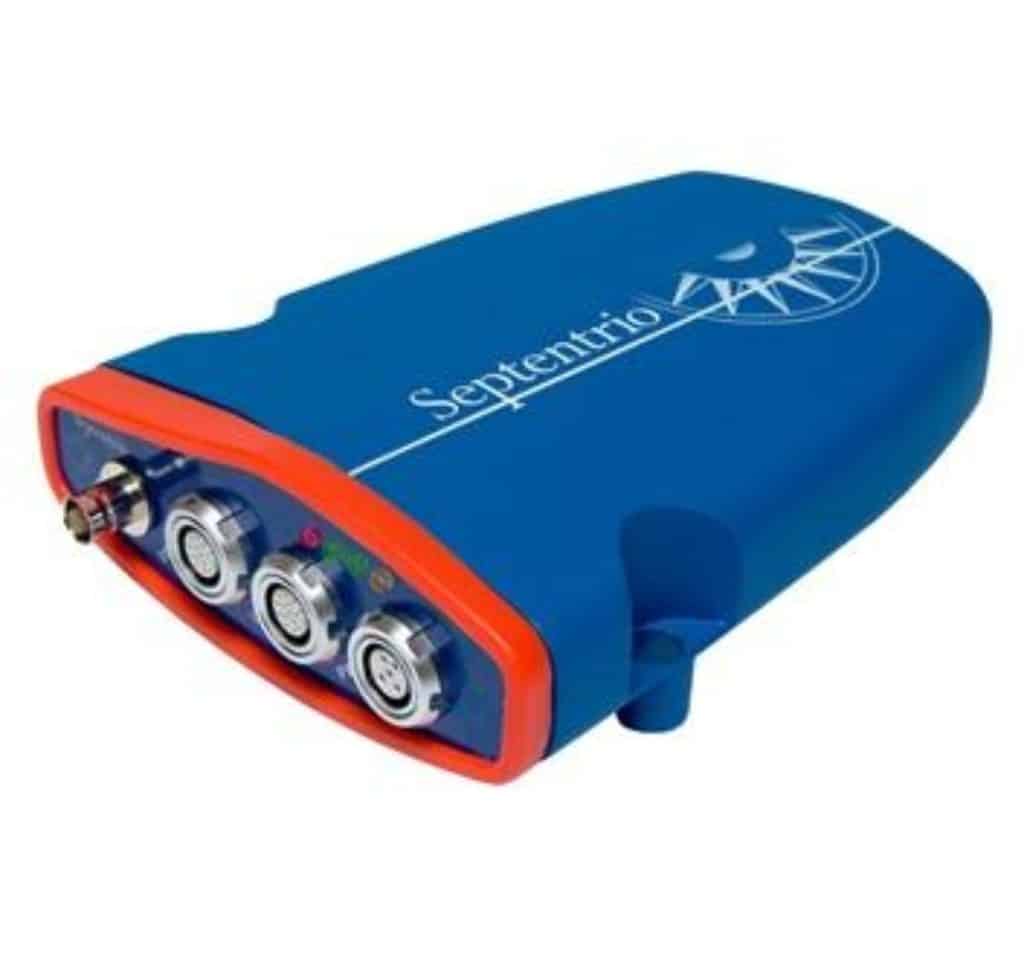

AsteRx3 HDC Receiver
This product has been discontinued by the manufacturer. Please see the related product(s) for replacement options or contact us.
The AsteRx3 HDC multi-frequency receiver features proven simultaneous high-quality GPS, GLONASS and Galileo tracking and many innovative features, such as the patented Galileo AltBOC tracking, the advanced multipath mitigation algorithm APME, LOCK tracking for exceptional tracking stability under high vibration conditions, RTK for extended RTK baselines and faster initialisation, and Advanced Interference Mitigation, AIM , technology from Septentrio, offering cm-level measurement quality for high precision positioning, even in challenging environments.
AIM (Advanced Interference Mitigation) is a method exclusive to the Septentrio line of GNSS receivers. If there are certain types of GNSS interference, intentional or unintentional, AIM is able to notch out the section of the band being interfered with and continue to use the rest of the usable spectrum. By doing this, Septentrios GNSS receivers are able to mitigate or reject that section of the interfering signal and continue positioning. If you are concerned about intentional or unintentional interference with GPS signals, you will want to look into these receivers. Contact us for more information.
- Compact OEM board and housed solutions
- Advanced Interference Mitigation, AIM
- 136 hardware channels
- Up to 100 Hz data output rate
- Multi-frequency GPS/GLONASS/GALILEO L1/L2/L5/E5a/E5b/E5 AltBOC code/carrier tracking
- A Posteriori Multipath Estimator technique (APME)
- Receiver Autonomous Integrity Monitoring (RAIM)
- Includes intuitive GUI (RxControl) and detailed operating and installation manual

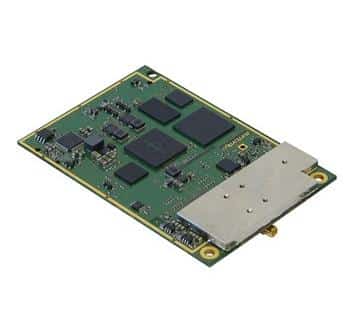

See the AsteRx3 OEM if what you need is the board without the enclosures.
Ax3_RTK P2002 RTK + Moving Base option (RTK base/rover) (incl. DGPS)
Ax3_BASE P2012 Outputs RTK Base corrections
Ax3_Event P2022 Event Marker option (2 marker inputs)
Ax3_LOG P2032 Data logging activation (also on OEM board, for external SD card)
Ax3_ETH P2042 Ethernet option (incl. CBL*_HDC_ETH_MX in housed version)
Ax3_CMP P2252 Compass Tracking and Measurement generation (future changes in the COMPASS signal specifications might require a firmware update)
Ax3_HD P2112 100 Hz datarate option : raw measurements, Stand Alone PVT, SBAS and DGPS. (GPS only)
AsteRx3 HDC_L1G 400042B1052 Single Frequency version of AsteRx3, GPS-GLO configuration, upgradable to dual-frequency, in Hard Case housing
AsteRx3 HDC_GG 400042B1053 Dual Frequency version of AsteRx3, GPS/GLO configuration, upgradable to dual-frequency, in Hard Case housing
AsteRx3 HDC 400042B1054 Multi frequency GPS/GLONASS/GALILEO receiver in Hard Case housing, in GPS-GLO-GAL configuration.
