Item #: AV37

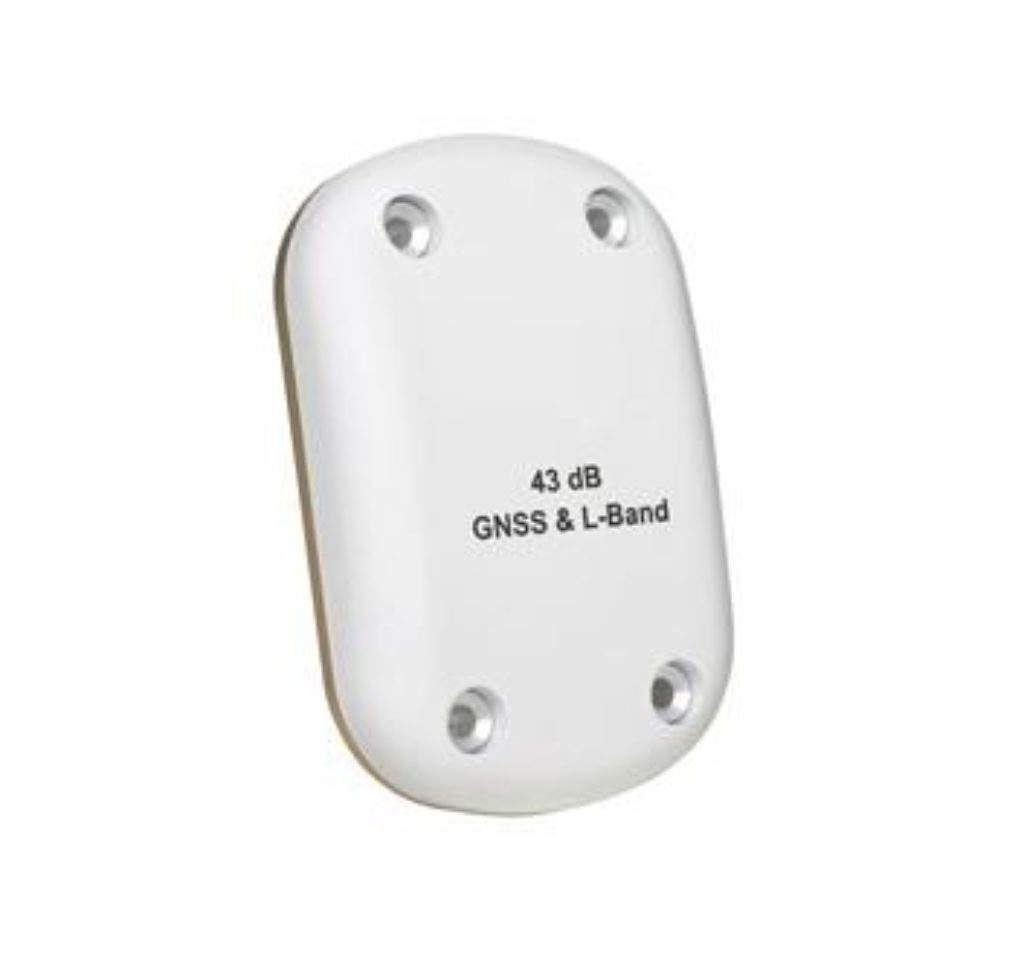

Trimble AV37 Aviation Antenna

The Trimble AV37 GNSS Aviation Antenna has been designed to support centimeter level accuracy for airborne applications and track SBAS signals all in one compact design. It is fully TSO certified by the FAA for aircraft installations.

SKU: 82745 Categories: , Manufacturer: Trimble Navigation

Trimble AV37 GNSS and L Band Aviation Antenna

The AV37 is  a high performance GNSS and L-band antenna that supports airborne mapping and surveying. This aviation Antenna has been designed to support centimeter level accuracy for airborne applications and track SBAS signals all in one compact design. It is fully TSO certified by the FAA for aircraft installations.

Mapping and surveying from the air using GNSS requires survey grade antenna technology in a compact and reliable form factor. The Trimble AV37 GNSS Aviation antenna achieves this without compromising performance.

Features

  • Full support for L1/L2 GPS GLONASS and L-Band signals
  • Low-profile Fuselage Mounting
  • Sub-centimeter phase center repeatability
  • Fully certified for airborne installations
  • L1/L2 GNSS L-Band Frequency Tracking:
    GPS: L1, L2
    GLONASS: L1, L2
    Galileo: E1
    BeiDou: B1
    SBAS: WAAS, EGNOS, QZSS, Gagan, MSAS, and OmniStar
  • Quality signal tracking
  • TNCF female signal connector
  • Small cross-sectional area to reduce wind loading
  • Low voltage, low power consumption
  • Integral low noise amplifier
  • Powered by GNSS receiver via coaxial cable
  • High gain for reliable tracking in difficult environments
  • FAA airworthiness certificate supplied with each antenna
