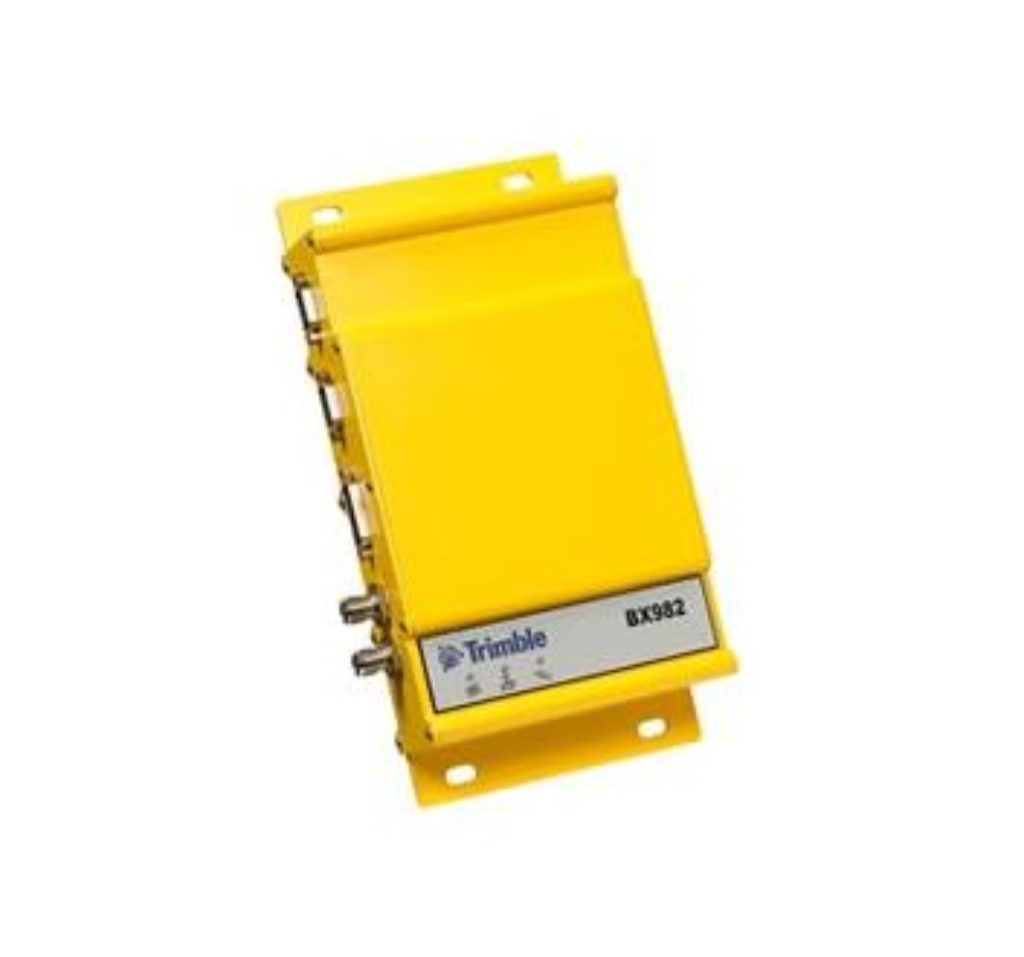

Trimble BX982 GNSS Receiver Enclosure
The manufacturer has issued and end of life (EOL) notice for this product. It has been replaced by the BX992. Please see EOL Notice and Related Products tabs for more information.
The BX982 GNSS receiver enclosure is a multi-channel, multi-frequency OEM GNSS receiver that allows OEMs and system integrators to rapidly integrate centimeter-level positioning and precise heading into their applications. The Trimble BX982 supports GPS L1/L2/L5 and GLONASS L1/L2 signals. The BX982 is also capable of tracking the experimental GIOVE A/B test satellites for signal evaluation and test purposes.
The BX982 packages a single BD982 receiver module in a rugged enclosure. It comes in an environmentally sealed enclosure that is easy to install. The unit has been rigorously tested to perform in harsh environmental conditions.
The BX982 harnesses the power of the 220 channel Trimble Maxwell 6 Technology with dual chips supporting two antennas connected to the board. Independent observations from both antennas are passed to the processor where multi-constellation RTK baselines are computed.
- Easy to integrate rugged package
- Two 220 channel Maxwell 6 chips for multi-constellation GNSS support
- OmniSTAR VBS / XP / G2 / HP support
- Dual antenna inputs for precise heading calculation
- Centimeter-level position accuracy
- Convenience of ethernet connectivity
- Supports FDE and RAIM
85992-01 - Trimble BX982 L1 GPS (Autonomous/SBAS Only,Single Antenna Enabled)
85992-02 - Trimble BX982,30cm Position + Heading (Dual Antenna Enabled)*
85992-03 - Trimble BX982,OMNISTAR HP/XP/G2 + Heading (Dual Antenna Enabled)*
85992-04 - Trimble BX982,RAW MEASUREMENT DATA ONLY (Dual Antenna Enabled)
85992-05 - Trimble BX982,RTK ROVER L1/L2/L5 GPS (Single Antenna Enabled)
85992-06 - Trimble BX982,RTK REFERENCE/ROVER L1/L2/L5 GPS+ Heading (Dual Antenna Enabled)
85992-07 - Trimble BX982,RTK REFERENCE/ROVER GPS/GLONASS (Single Antenna Enabled)
85992-00 - Trimble BX982,RTK REFERENCE/ROVER GPS/GLONASS + Heading (Dual Antenna Enabled)
85992-08 - Trimble BX982,RTK REFERENCE/ROVER GPS/GLONASS/GIOVE (Single Antenna Enabled)
85992-09 - Trimble BX982,RTK REFERENCE/ROVER GPS/GLONASS/GIOVE + Heading (Dual Antenna Enabled)
* L1/L2 antennas required to compute heading with the L1 DGPS and OMNISTAR version of the BD982
* Note: All BX982 units come with A02503 power supply and C02818 adapter
