Item #: TW120

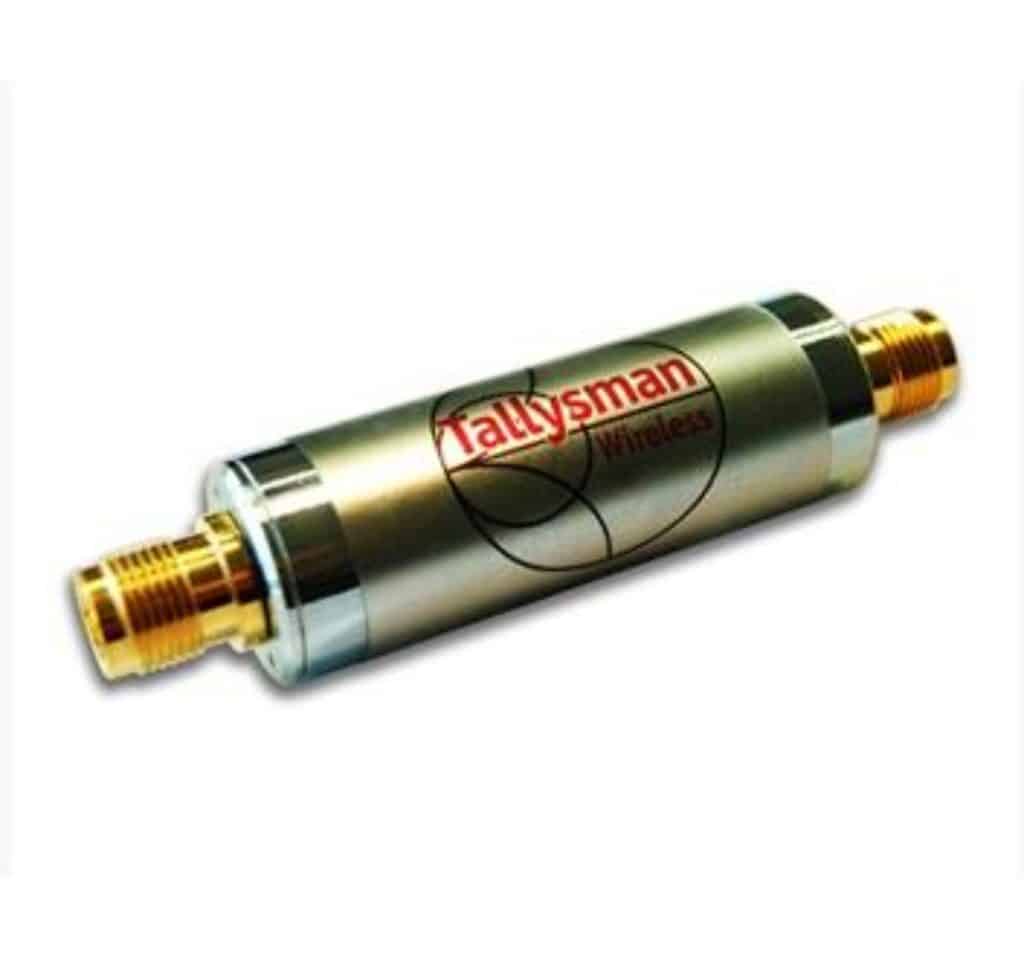

TW120 GPS L1 Inline Amplifier

$178.55$183.02

The TW120 by Tallysman Wireless is a rugged waterproof, low cost, low noise, low power, narrow band 25dB gain in-line amplifier, specially designed to tightly filter and boost weak GPS L1 signals, while maintaining low antenna noise figures. The TW120 provides for much longer cable runs from antenna to receiver, for applications such as mast-mount, roof-top and large vehicle installations, without any degradation of system sensitivity.

SKU: 32-0120 Categories: , , Manufacturer: Tallysman Wireless

TW120 GPS L1 Inline Amplifier by Tallysman Wireless

The TW120 GPS L1 Inline Amplifier is a rugged waterproof, low cost, low noise, low power, narrow band 25dB gain in-line amplifier, specially designed to tightly filter and boost weak GPS L1 signals, while maintaining low antenna noise figures. The TW120 provides for much longer cable runs from antenna to receiver, for applications such as mast-mount, roof-top and large vehicle installations, without any degradation of system sensitivity.

The TW120 passes DC directly from input to output to support center conductor DC supply to the antenna, and so avoiding the need for an additional bias source or bias “T”.

Features:
  • Very low noise
  • Wide input voltage range, 3 to 10 VDC
  • Powered via antenna coax from receiver
  • 50 Ohm port impedance
  • Cylindrical nickel-plated brass, IP67 compliant housing
  • Gold-plated SMA & TNC Jack connectors
  • RoHS compliant
