Tallysman TW150 Splitter
Item #: TW150

TW150 L-Band/GNSS 1 to 2 Signal Splitter

$100.11 – $110.11

The TW150 by Tallysman Wireless is a professional grade 1 to 2 L-Band Signal Splitter, suitable for a wide range of L-Band and all GNSS applications, including GPS L1, L2, L5 and GLONASS L1 & L2. The TW150 splitter permits for two GNSS receivers to operate on one antenna, by allowing the DC voltage source to pass through Port 2 but blocked on Port 1.

SKU: 32-0150 Categories: , , Manufacturer: Tallysman Wireless

Tallysman TW150 L-Band GNSS Splitter

The TW150 by Tallysman Wireless is a professional grade 1 to 2 L-Band Signal Splitter, suitable for a wide range of L-Band and all GNSS applications, including GPS L1, L2, L5 and GLONASS L1 & L2. The TW150 splitter permits for two GNSS receivers to operate on one antenna, by allowing the DC voltage source to pass through Port 2 but blocked on Port 1.

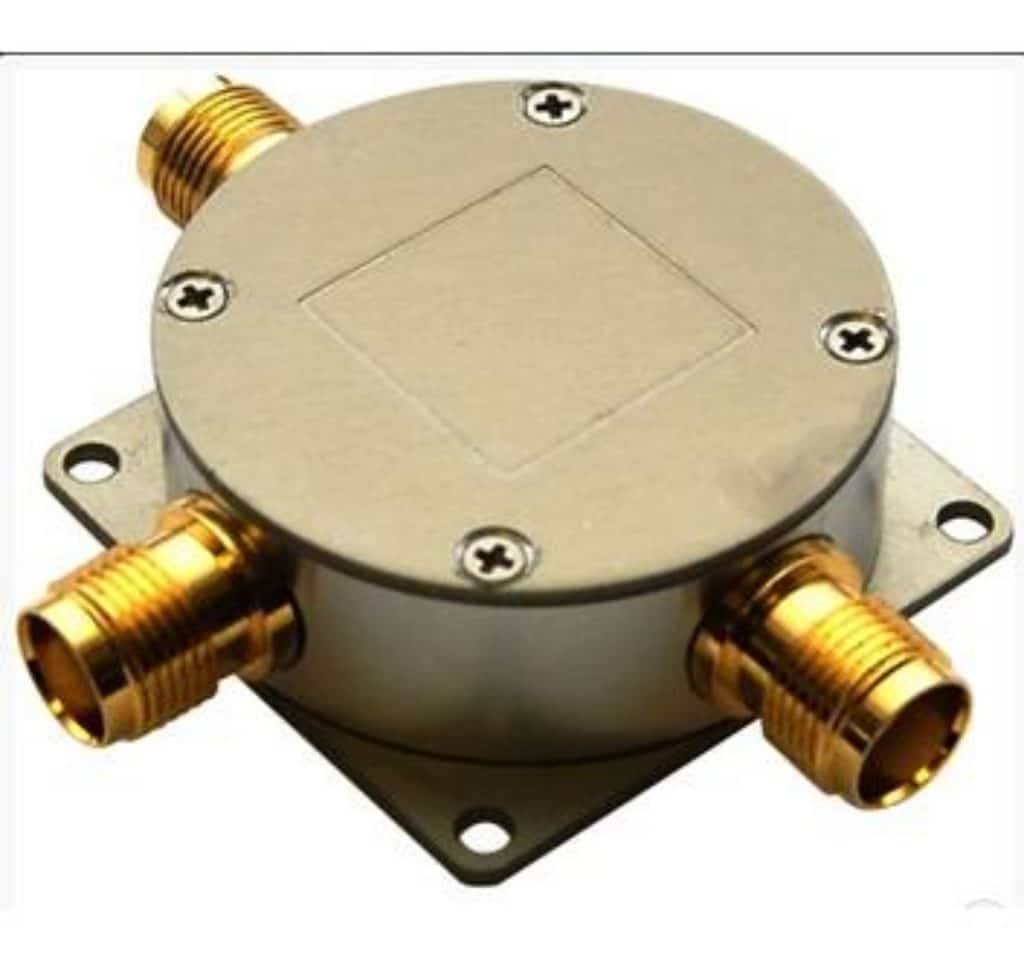

The TW150 is housed in a robust weatherproof (IP67) clear anodized aluminum enclosure and is available with 3 x gold-plated SMA or TNC Jack (female) connectors.

Features:
  • 1 to 2 GHz operating frequency
  • Low insertion loss 1.0 dB @ 2 GHz
  • VSWR <1.25 typ.
  • Max pass through current 200 mA
  • 50 Ohm port impedance
  • Clear anodized aluminum, IP67 housing
  • Gold-plated SMA or TNC Jack connectors
  • RoHS Compliant



Tallysman Wireless TW150 Data Sheet
