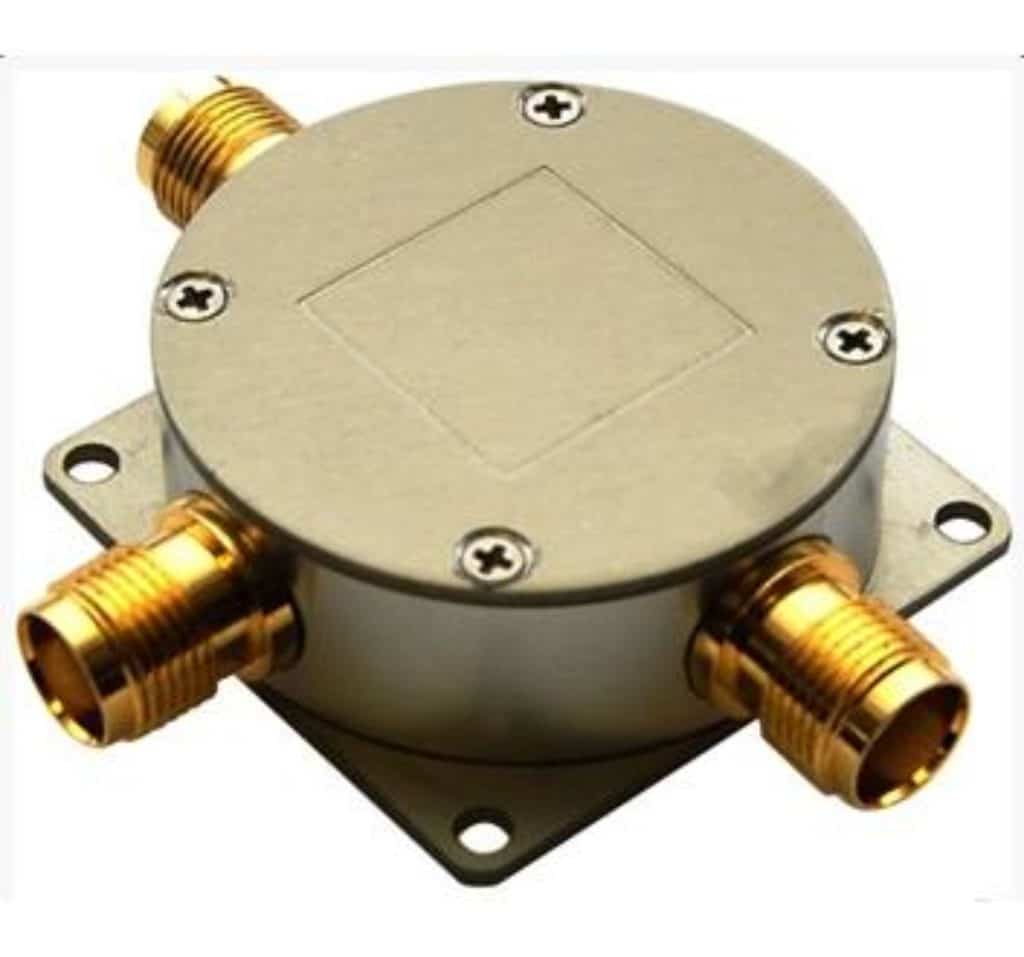

Tallysman TW151 Splitter
Tallysman TW151 Splitter
Item #: TW151

TW151 DC Blocked L-Band/GNSS 1 to 2 Signal Splitter

$100.11 – $110.11

The TW151 by Tallysman Wireless is a professional grade DC blocked L-Band 1 to 2 Signal Splitter, suitable for a wide range of L-Band and all GNSS applications, including GPS L1, L2, L5 and GLONASS L1 & L2.

SKU: 32-0151 Categories: , , Manufacturer: Tallysman Wireless

Tallysman TW 151 Wireless Signal Splitter

The TW151 by Tallysman Wireless is a professional grade DC blocked L-Band 1 to 2 Signal Splitter, suitable for a wide range of L-Band and all GNSS applications, including GPS L1, L2, L5 and GLONASS L1 & L2.


The TW151 splitter permits for two GNSS receivers to operate on one antenna, while blocking the DC voltage source on both receiver ports 1 and 2, suitable for applications with external DC voltage source.

The TW151 is housed in a robust weatherproof (IP67) clear anodized aluminum enclosure and is available with 3 x gold-plated SMA or TNC Jack (female) connectors.

Features:
  • DC blocked on both receiver ports
  • 1 to 2 GHz operating frequency
  • Low insertion loss 1.0dB over 3 GHz
  • VSWR <1.25 typ.
  • 50 Ohm port impedance
  • Clear anodized aluminum, IP67 housing
  • Gold-plated SMA or TNC Jack connectors
  • RoHS Compliant



Tallysman Wireless TW151 Data Sheet
