Item #: TW155

TW155 Regulated 0.5 to 3 GHz 5 V Bias-Tee

$104.92

The TW155 by Tallysman Wireless is a professional grade wideband Bias-Tee for injecting DC voltages onto coaxial lines. The regulated output voltage and the large output current makes this product highly suitable for many active antennas and amplifiers. It is useable up to 6GHz with higher insertion loss.

Clear
SKU: 32-0155 Categories: , , Manufacturer: Tallysman Wireless

Tallysman TW155 Wideband Bias-Tee

The TW155 by Tallysman Wireless is a professional grade wideband Bias-Tee for injecting DC voltages onto coaxial lines. The regulated output voltage and the large output current makes this product highly suitable for many active antennas and amplifiers. It is useable up to 6GHz with higher insertion loss (see data below).

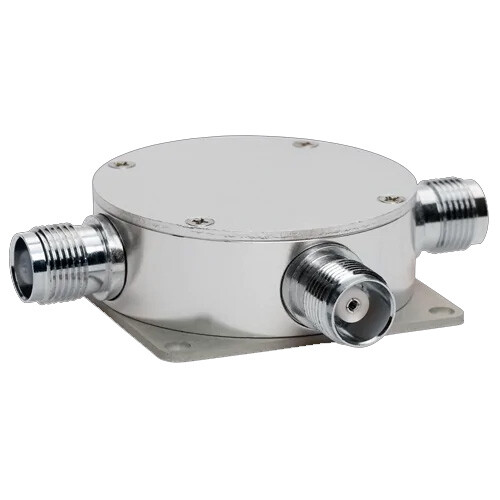

The TW155 is housed in a robust RF sealed, weatherproof (IP67) clear anodized aluminum enclosure and is available with 3 x SMA or TNC Jack connectors.

Features:
  • Low insertion loss: 1dB @ typ.
  • Regulated output voltage: 5 VDC
  • VSWR: <1.3 @ 3 GHz
  • Operating frequency: 0.5 to 3 GHz
  • Wide input voltage range: 5.5 to 10 VDC**
  • High current output: 450 mA**
  • RF sealed, clear anodized aluminum enclosure
  • IP67 compliant (TNC Jack connector only)
  • SMA or TNC Jack connectors
  • RoHS compliant

Tallysman Wireless TW155 Data Sheet
