Item #: TW162

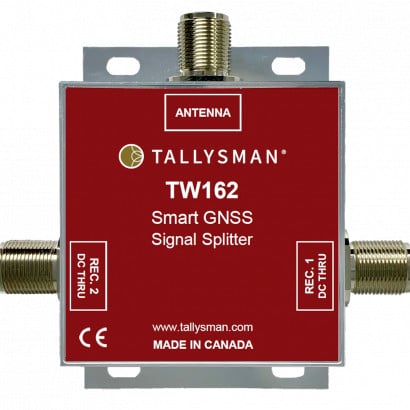

TW162 1-to-2 Port Smart Power GNSS Signal Splitter

$349.00$351.00

The Tallysman TW162 is a professional-grade full GNSS band signal splitter that connects one antenna to two receivers, and supports GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, BeiDou-B1/B2/B2a/B3, QZSS-L6, Galileo-E1/E5a/E5b/E6, and L-band correction services

SKU: 32-0162 Categories: , , Manufacturer: Tallysman Wireless

Tallysman TW162 Signal Splitter

 The TW162 is a professional-grade full GNSS band signal splitter that connects one antenna to two receivers, and supports GPS/QZSS-L1/L2/L5, GLONASS-G1/G2/G3, BeiDou-B1/B2/B2a/B3, QZSS-L6, Galileo-E1/E5a/E5b/E6, and L-band correction services.

The TW162 offers exceptional performance in terms of noise figure, isolation, and linearity. In addition, it is packaged in a corrosion-protected housing made of military-grade aluminum (6061-T6), which is robust, compact, and lightweight. The splitter has also passed the IP67 water ingression test.

The TW162 is available with either TNC or type-N connectors and offers standard gain to compensate for signal-splitting loss.

Benefits

  • Allows two GNSS receivers to share a single antenna
  • Fits in-line with antenna cable
  • Robust design
  • Suitable for harsh environments

Features

  • Accepts power from all attached receivers
  • Automatically switches on power failure of one receiver
  • Antenna failure detection/indication
  • Rugged military-grade aluminum enclosure
  • Amplification to compensate for signal-splitting loss
  • Very low noise figure
  • IP67-compliant

The TW162 Smart Power GNSS signal splitter provides two key features:

First, it accepts power from all attached GNSS receivers and selects power from a receiver using the following protocol. Port #1 is given priority if its voltage is within the specified range (3.0 V – 12.5 V). However, if port #1’s receiver is disconnected or if its receiver power goes below the under-voltage or above the over-voltage specification, the TW162 will switch to the next port in numerical order, as long as its power and voltage are within the expected range. The switching and port selection is, therefore, deterministic.

Second, if the antenna fails and does not draw current, the TW162 will provide the receiver powering the antenna with a current draw lower than 2 mA, indicating an antenna fault.

Tallysman TW162 1-to-2 Port Smart Power GNSS Signal Splitter Data Sheet
