Item #: TW2920

TW2920 Antenna


This configuration includes an SMA Female (jack) bulkhead connector with no cable. The Tallysman TW2920 antenna provides simultaneous reception of L-band correction signals and all of the upper band GNSS signals, including GPS L1, GLONASS G1, Galileo E1, and BeiDou B1.

SKU: 33-2920-07 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW2920 Antenna

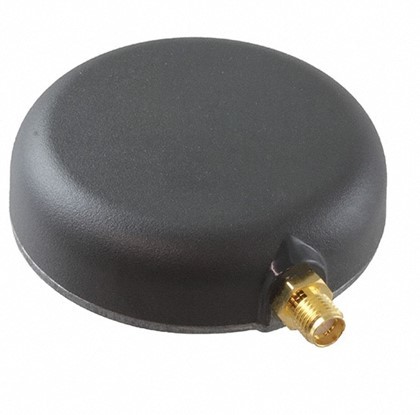

This configuration includes SMA Female (jack) bulkhead connector, with no cable.

Tallysman introduced the TW2920 antenna for simultaneous reception of L-band correction signals and all of the upper band GNSS signals including GPS L1, GLONASS G1, Galileo E1, and BeiDou B1.

The TW2920 1dB bandwidth covers 1525MHz to 1559MHz for the L band down-link and 1559MHz to 1610MHz for the upper band GNSS.  The LNA of the TW2920 provides 28dB of gain. (A higher gain version with 35dB LNA gain is available as the TW2940. The TW2926 antenna is an unhoused OEM version of the TW2920 with 28dB of gain. Ask us about these.)

The TW2920 employs Tallysmans unique Accutenna technology which provides superior multi-path signal rejection, linear phase response, and tight Phase Centre Variation (PCV). The TW2920 covers GPS L1, GLONASS G1, BeiDou B1, Galileo E1, SBAS (WAAS, EGNOS, GAGAN, & MSAS) and the upper L-Band (1525 1559MHz). This makes it an ideal antenna for use in precision agriculture, autonomous vehicle tracking and guidance, and other applications where precision matters.


  • Accutenna™ Technology
  • Tight Phase Centre Variation
  • High rejection pre-filter
  • Low noise: 2.5dB
  • Temperature compensating LNAs


  • Superior multipath signal rejection
  • Great out-of-band signal rejection
  • Excellent signal-to-noise ratio
  • Consistent response in all operating
  • temperatures

The TW2920 is housed in a compact, industrial-grade weather-proof, magnet mount enclosure, and is available with a variety of connectors. It is also available without the magnet and an adhesive mount.

The TW2920 is also available with armoured cable. This encases the cable in a corrugated conduit of tough plastic, with a temperature range of -40 to 120°C, excellent chemical resistance, bending stable, high cold impact strength, and UL94HB flammability standard compliant. This extra protection increases the resilience of the antenna.

These are RoHS and REACH compliant.

Tallysman TW2920 Antenna Data Sheet

Premium Antennas for Unmanned Vehicles (UAVs)

TW2000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female

26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with color code)**

  Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
07 = SMA female (jack) bulkhead

** Premiums apply. Please contact NavtechGPS for information and pricing
