TW3030 Permanent GPS 28dB Timing Antenna

This product has been replaced by the TW3010.

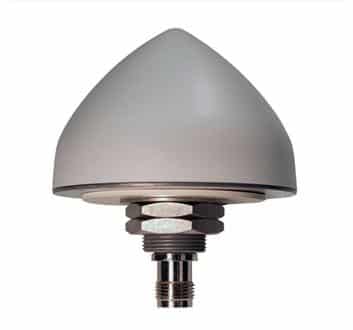

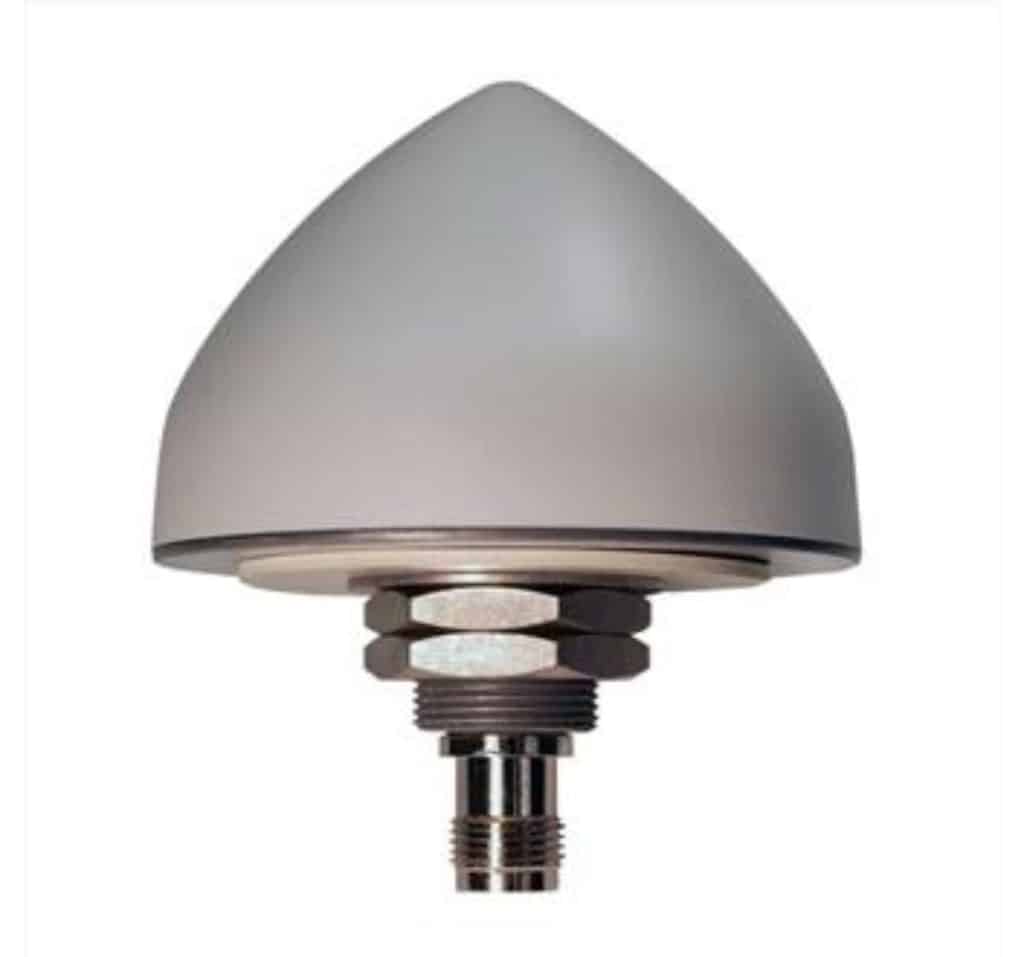

The TW3030 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional precision timing applications.

SKU: 33-3030 Categories: , Manufacturer: Tallysman Wireless

TW3030 Permanent GPS 28dB Timing Antenna

This product has been replaced by the TW3010. Please see that product page for more.



The TW3030 by Tallysman Wireless is a professional grade, permanent mount GPS L1 antenna, specially designed for professional precision timing applications.

The TW3030 features a custom high performance, wide band patch element, a 30dB gain LNA stage and a high rejection out-of-band SAW filter. It provides ±10MHz bandwidth centred on 1575.42 MHz and covers the GPS L1, Galileo E1 and SBAS (WAAS/EGNOS/MSAS) signals. It provides great axial ratio, excellent circular polarized signal reception, great multipath rejection and great out- of-band signal rejection.

The TW3030 is housed in a compact, industrial- grade weather-proof, domed shaped enclosure. Its radome is available in dark gray or white, it comes with a TNC female connector and a L-bracket for pole mount is available (P/N#23-0040-0).

Features:
Great axial ratio
Low noise LNA: 1 dB
High rejection SAW filter
High gain: 30 dB typ.
Low current: 10 mA typ.
ESD circuit protection: 15 KV
Wide voltage input range: +3.0 to 10 VDC
Weather proof housing: IP67



Tallysman Wireless TW3030 Data Sheet

TW3000 Family of Products

ALL of the connector options with or without cables (max length 5m) are shown below. Please contact us with questions.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
01 = TNC female

** Premiums apply. Please contact NavtechGPS for information and pricing.


Radome Options:

00=Dark Grey Conical 10=Dark Grey Low Profile 01=White Conical 11=White Low Profile
