Item #: TW3440/TW3442

TW3440/TW3442 GPS/GLONASS Timing Antenna

$100.66

The TW3440/TW3442 from Tallysman employ Tallysmans unique Accutenna® technology covering the GPS L1, GLONASS G1, and SBAS (WAAS, EGNOS & MSAS) frequency bands (1574 to 1606 MHz).

View Full Description
SKU: 33-344 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW3440/TW3442

The TW3440/TW3442 employ Tallysmans unique Accutenna® technology covering the GPS L1, GLONASS G1, and SBAS (WAAS, EGNOS & MSAS) frequency bands (1574 to 1606 MHz). It provides circular response over its entire bandwidth thereby producing multipath signal rejection resulting in higher accuracy of position and timing.

Features

  • Accutenna® Technology
  • High Gain 40 dB
  • High rejection SAW filter
  • Low noise LNA: 1dB
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Ideal for Timing applications
  • Great out-of-band signal rejection
  • Excellent signal-to-noise ratio
  • Consistent response in all operating
  • temperatures

The TW3442 has an additional tight pre-filter to protect against saturation by high level sub-harmonics and L-Band signals.

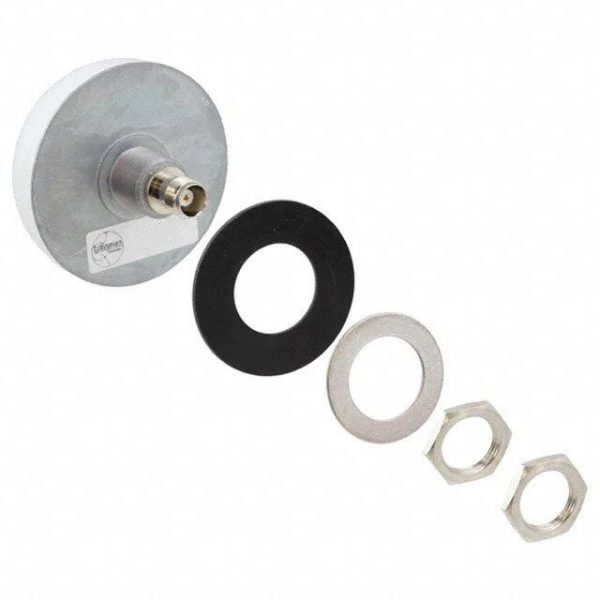

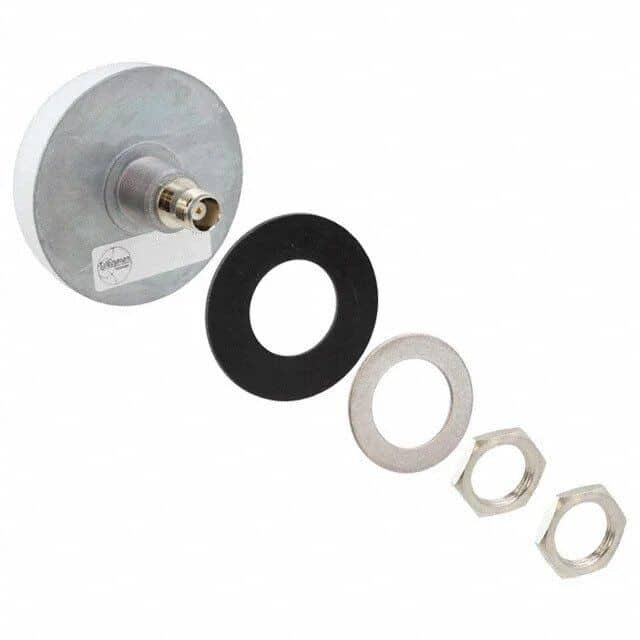

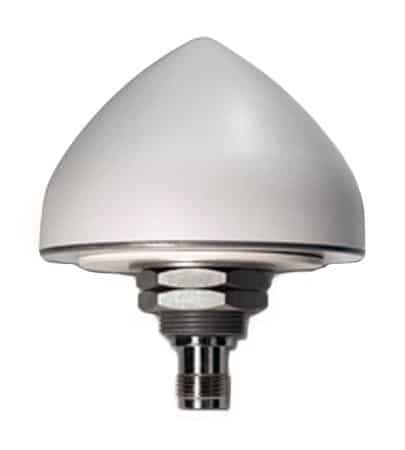

The TW3440/TW3442 are housed in a through-hole mount, weather-proof enclosure for permanent installations. They are available with either a flat or conical radome in either grey or white. The TW3440/TW3442 is also available with either a TNC or N-Type connector on the base of the antenna or with a flying lead and a variety of connectors.

LNA Pre-filter

If you need enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, select Pre-Filter for this product. If you have questions, contact us.

To minimize performance impact from signal jamming threats, the pre-filtered version of this antenna is compatible with Tallysman’s Anti-Jamming add-on, which modifies the radiation pattern of the GNSS antenna to eliminate signals arriving from -10° to +15° from horizon, while slightly increasing the gain of the antenna at zenith.

Tallysman TW3440/TW3442 GPS/GLONASS Timing Antenna Data Sheet

TW3000 Family of Products

ALL of the connector options with or without cables (max length 5m) are shown below. Please contact us with questions.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

Connector Options Without Cable:
01 = TNC female

** Premiums apply. Please contact NavtechGPS for information and pricing.


Radome Options:

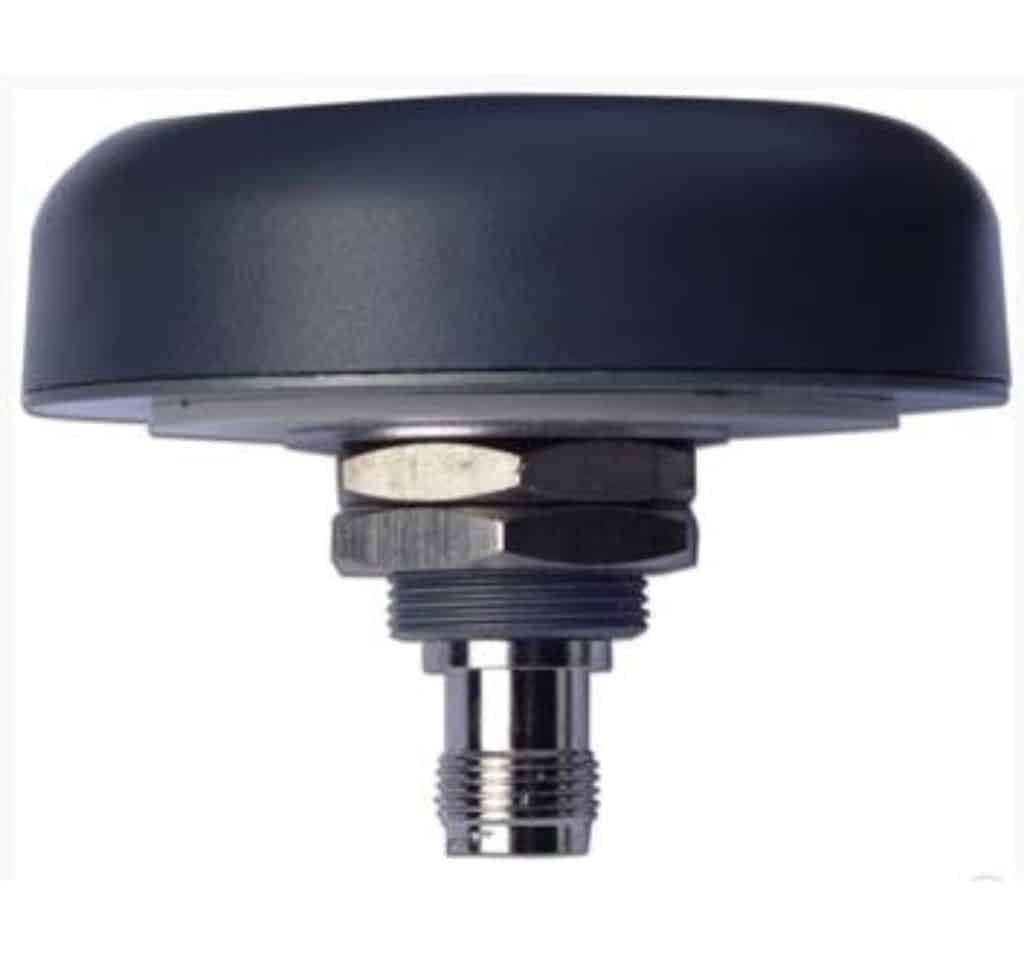

00=Dark Grey Conical 10=Dark Grey Low Profile 01=White Conical 11=White Low Profile
