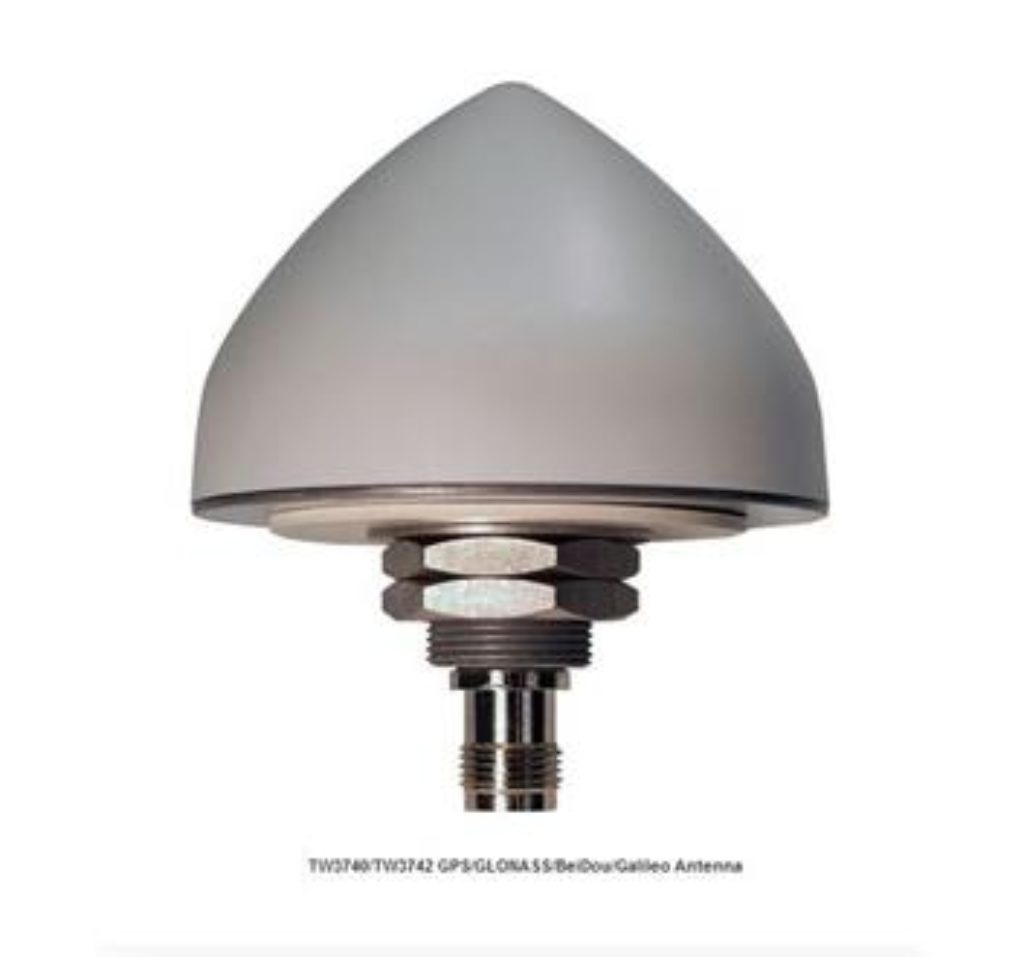

TW3740 / TW3742 Dual Feed Multi-Constellation Timing Antenna
The TW3740 and TW3742 multi-constellation GNSS timing antennas are precision high-gain GNSS antennas covering the BeiDou B1, Galileo E1, GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS, QZSS & MSAS) frequency band (1557 to 1606 MHz).
These antennas employ Tallysmans unique Accutenna™ technology to provide truly circular polarized signal reception through the entire bandwidth of the antenna for superior multipath signal rejection. The TW3740 features a three stage low-noise amplifier, comprised of one input LNA per feed, a mid section SAW to filter the combined output, and a final output gain stage. An optional tight pre-filter is available on the TW3742 to protect against saturation by high level sub-harmonic and L-Band signals.

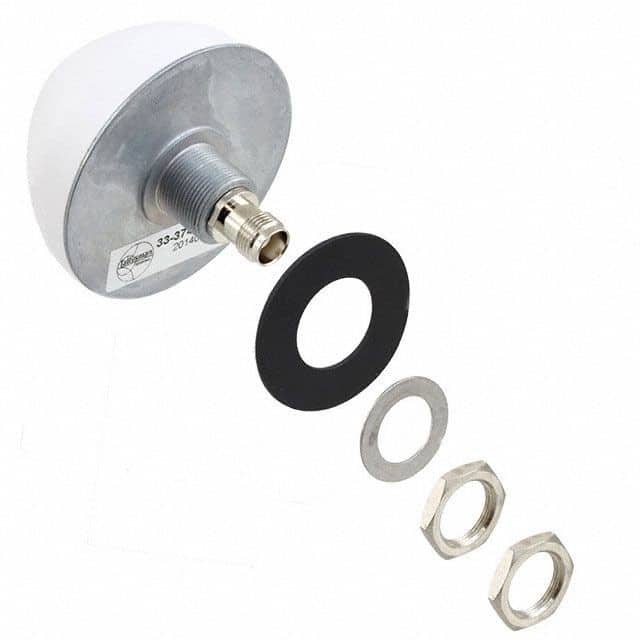

The TW3740/TW3742 is housed in a permanent mount metal base with two nickel coated nuts and a weather-proof enclosure. Two options for mounting are available: an L-bracket (P/N#23-0040-0) or a pipe mount (P/N#23-0065-0).
The TW3740 and TW3742 are especially designed for precision timing, industrial, agricultural, military, and other precision applications.
- High Accuracy & Mission Critical Global Positioning
- Timing applications
- Precision Agriculture, Mining & Construction
- Military & Security
- Law Enforcement & Public Safety
- Fleet Management & Asset Tracking
- Great axial ratio: 1 typ., 3 dB max
- Low noise LNA: =1 dB
- High rejection SAW filter
- LNA gain: 40 dB typ.
- Low current: 15 mA typ.
- Wide voltage input range: 2.5 to 16 VDC
- IP67 weather proof housing
- Excellent multipath signal rejection
- Increased system accuracy
- Excellent signal to noise ratio
- Great out of band signal rejection
- Ideal for harsh environments
- RoHS compliant
TW3000 Family of Products
ALL of the connector options with or without cables (max length 5m) are shown below. Please contact us with questions.
00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**
12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
NMO = NMO mount
20 = SMA Female
22 = R/A QMA**
23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**
Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm
Connector Options Without Cable:
01 = TNC female
** Premiums apply. Please contact NavtechGPS for information and pricing.
|00=Dark Grey Conical
||10=Dark Grey Low Profile
||11=White Low Profile
