Item #: TW4322

TW4322 Wideband GPS/GLONASS Antenna

The TW4320/TW4322 is a wideband GNSS antenna covering the GPS L1, GLONASS L1 and SBAS frequency bands.

SKU: 33-4322-xx-yyyy Categories: , Manufacturer: Tallysman Wireless

Tallysman TW4322

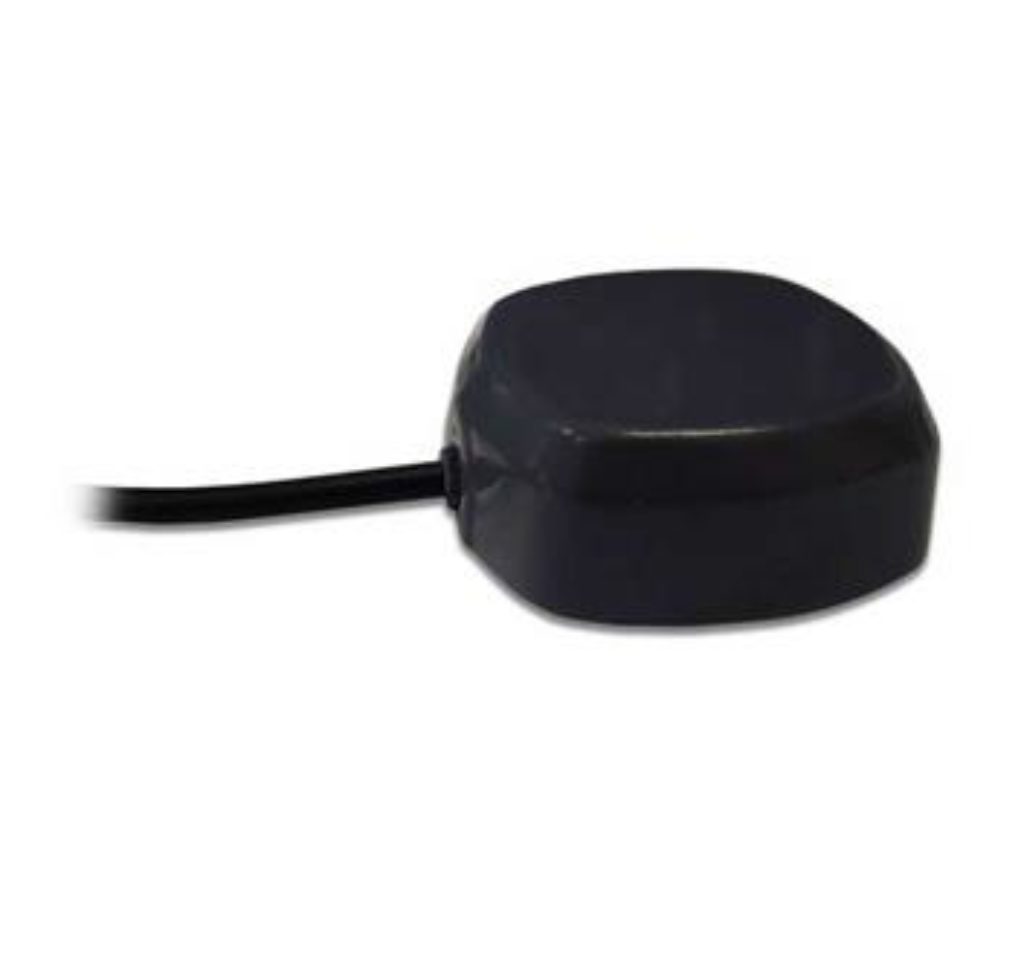

The Tallysman TW4322 is a wideband GNSS antenna covering the GPS L1, GLONASS L1 and SBAS (WAAS, EGNOS & MSAS) frequency bands (1575 to 1606 MHz). It features a small patch element with 40% wider bandwidth than previously available in this format.

Features

  • 40% wider bandwidth
  • High rejection SAW filter
  • Low noise LNA: 1dB
  • Temperature compensating LNAs

Benefits

  • Great out-of-band signal rejection
  • Excellent signal-to-noise ratio
  • Consistent response in all operatingtemperatures

The TW4322 is a prefiltered variation on the TW4320, it protects against saturation by high level sub-harmonics and L-Band signals.

The TW4320/TW4322 are housed in a compact, magnetic mount, IP67 compliant housings. It is RoHS and REACH compliant.

For further details, please download the Datasheet.



Tallysman TW4322 Wideband GPS/GLONASS Antenna Data Sheet

TW4000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**


Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

** Premiums apply. Please contact NavtechGPS for information and pricing.
