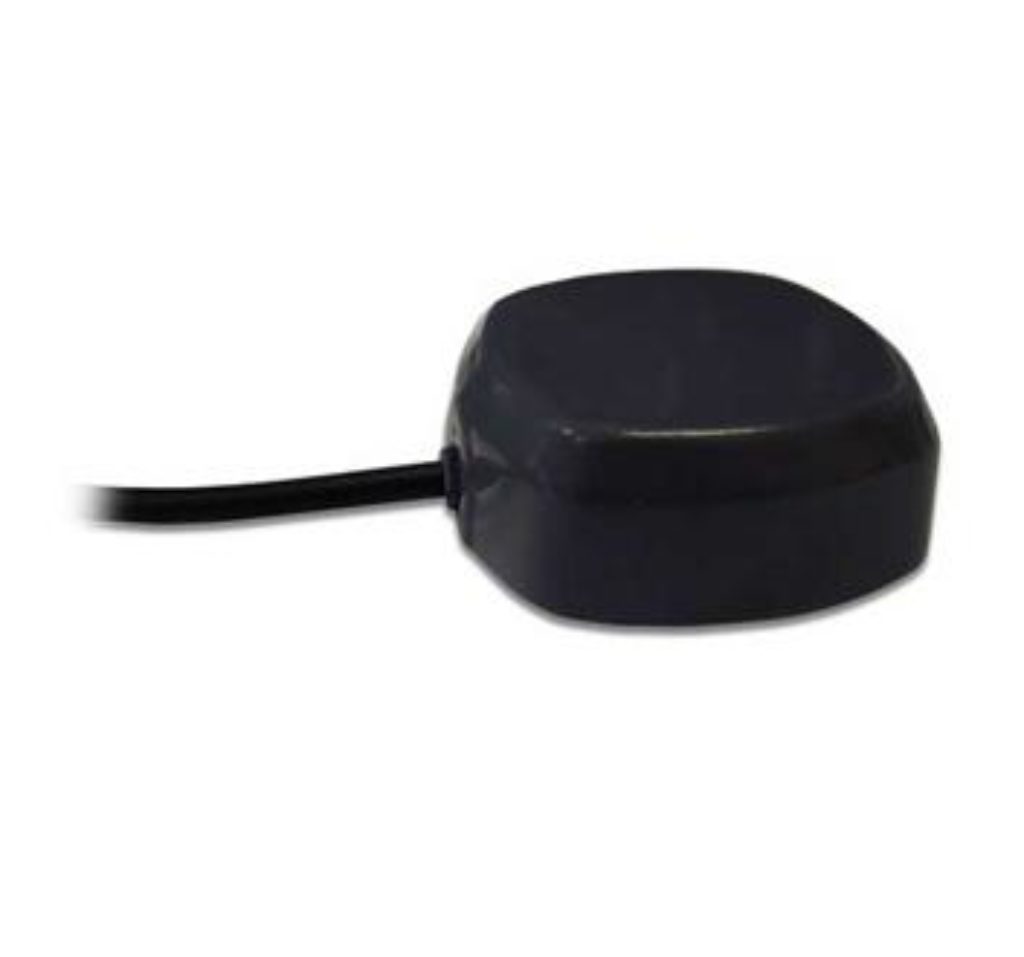

TW4421 Wideband Dual Feed GPS/GLONASS Antenna

$42.99

The TW4421 is a low-cost, dual-feed GPS & GLONASS magnetic mount antenna by Tallysman Wireless covering the GPS L1, GLONASS G1 and SBAS (WAAS, EGNOS & MSAS) frequency bands.

View Full Description
SKU: 33-442 Categories: , Manufacturer: Tallysman Wireless

TW4421 Wideband Dual-Feed GPS/GLONASS Antenna

This low-cost dual-feed GPS & GLONASS magnetic mount antenna by Tallysman Wireless covers the GPS L1, GLONASS G1 and SBAS (WAAS, EGNOS & MSAS) frequency band (1574 to 1606 MHz). The TW4421 features a novel 25mm dual feed wideband patch element that provides excellent multipath rejection and a more linear carrier phase response by virtue of the axial ratio that is greatly improved across the full frequency bandwidth. It is especially suited to high accuracy applications; it also offers high out-of-band signal rejection.

The two feeds from the patch element are summed in a 90 degree hybrid then input to a first-stage Low-Noise Amplifier (LNA), followed by a mid-section SAW and a second low-noise gain stage.

The TW4421 is one of the smallest dual-feed, high-performance antennas available. It comes with a wide range of connector options and cable length and is housed in a compact IP67 magnetic mount enclosure.

If you want a pre-filter option, please see the TW4422. It has a pre-filter which increases the antennas immunity to high amplitude interfering signals, such as LTE and other cellular signals

Applications
  • Cost Sensitive Mission Critical Positioning
  • Military & Security
  • Covert surveillance
  • Fleet Management & Asset Tracking
Features
  • Dual feed patch element
  • 40% wider bandwidth, small footprint
  • Axial ratio: 3 dB Max. (GPS & GLONASS)
  • Low noise LNA: 1 dB
  • High rejection mid-section SAW filter
  • High gain: 28 dB typ.
  • Wide voltage input range: 2.5 to 16 VDC
Benefits
  • 1dB Bandwidth Includes GPS-L1 & GLONASS
  • Greatly enhanced multipath rejection
  • Improved GNSS reliability
  • Excellent signal to noise ratio
  • RoHS compliant
  • Ideal for harsh environments
  • Excellent out of band signal rejection

LNA Pre-filter Available

If you need enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi, the alternative provides these additional TW4422 benefits with an LNA pre-filter.

To minimize performance impact from signal jamming threats, the pre-filtered version of this antenna is compatible with Tallysman’s Anti-Jamming add-on, which modifies the radiation pattern of the GNSS antenna to eliminate signals arriving from -10° to +15° from horizon, while slightly increasing the gain of the antenna at zenith.



Tallysman TW4421 Wideband Dual-Feed GPS / GLONASS Antenna Data Sheet

Tallysman Aerodynamic Antennas

Premium Antennas for Unmanned Vehicles (UAVs)

TW4000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **
34x = FAKRA (replace “x” with colour code)**


 Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

** Premiums apply. Please contact NavtechGPS for information and pricing.
