Item #: TW5350

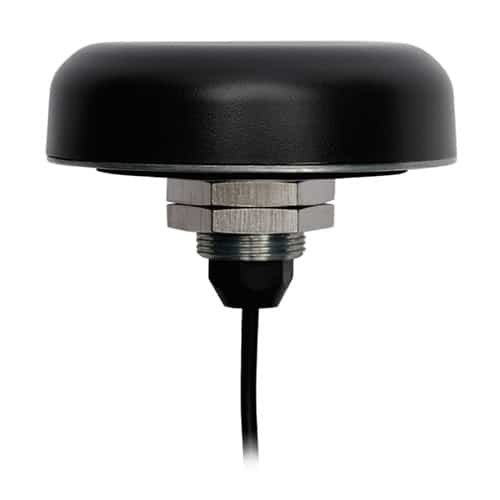

TW5350 Multi-Constellation Smart GNSS Timing Antenna

The Tallysman’s TW5350 multi-constellation GNSS Smart Antenna provides simultaneous GPS/GLONASS/SBAS reception for use in professional grade applications. The TW5350 uses a multi-constellation GNSS receiver, providing 72 high sensitivity tracking channels. These channels can be configured to acquire and track 3 concurrent GNSS constellations plus SBAS and QZSS augmentation signals simultaneously. Differential GPS corrections may also be supplied via RTCM formatted corrections messages.

SKU: 33-5350 Categories: , , Manufacturer: Tallysman Wireless

Tallysman TW5350 Multi-Constellation Smart GNSS Timing Antenna

The TW5350 from Tallysman is a multi-constellation GNSS Smart Antenna which provides simultaneous GPS/GLONASS/SBAS reception. It is designed for use in professional grade applications such as precision timing, network synchronization, low current applications, and tracking/positioning applications.

The TW5350 uses a multi-constellation GNSS receiver which provides 72 high sensitivity tracking channels. These channels can be configured to acquire and track 3 concurrent GNSS constellations (GPS, Galileo, GLONASS and Beidou) plus SBAS (WAAS, EGNOS, MSAS and GAGAN) and QZSS augmentation signals simultaneously. Differential GPS corrections may also be supplied via RTCM formatted corrections messages.

The TW5350 employs Tallysman’s proprietary Accutenna™ dual feed antenna patch technology which greatly improves rejection of multipath signal interference, across the whole GNSS band, making the TW5350 an exceptionally precise smart antenna for its size across all operating environments.

Tallysman TW5350 Multi-Constellation Smart GNSS Timing Antenna Datasheet
