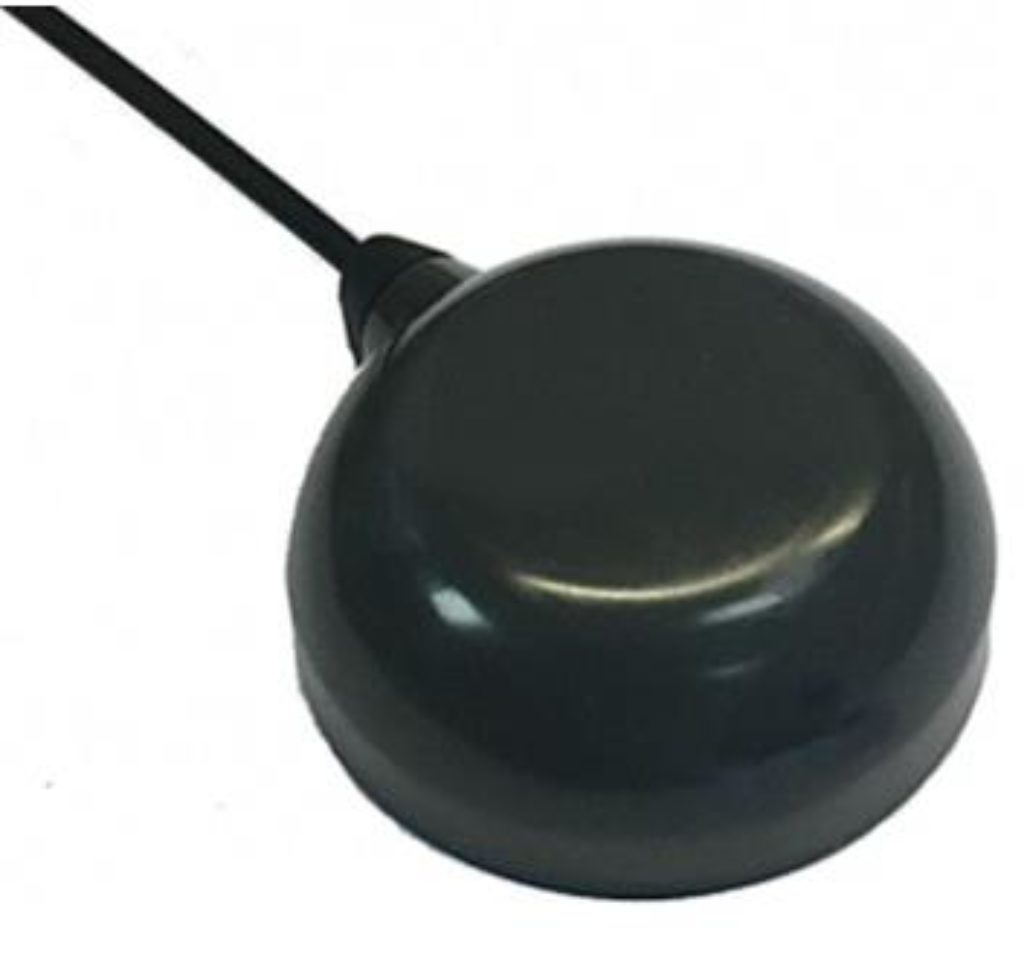

TW8829 Dual Band GNSS Antenna

$241.50

The TW8829 Accutenna™ Antenna from Tallysman is a dual band antenna designed for precision dual frequency positioning where weight is important, such as for UAVs

View Full Description
SKU: 33-8829 Categories: , Manufacturer: Tallysman Wireless

Tallysman TW8829 Dual Band GNSS Antenna

The TW8829 from Tallysman is a dual band antenna with GPS L1/L2, GLONASS G1/G2, Galileo E1, and BeiDou B1 coverage and is especially designed for precision dual frequency positioning for applications where light weight is important, such as for unmanned aerial vehicles. It features a precision tuned, circular dual feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output. The TW8829 has a strong pre-filter to mitigate inter-modulated signal interference from LTE and other cellular bands.

This antenna is ideal for dual frequency positioning where minimizing weight is important because the 52-gram TW8829 provides excellent axial ratio and tight Phase Centre Variation (PCV), features a precision tuned, circular dual feed, stacked patch element. The signals from the two orthogonal feeds are combined in a hybrid combiner, amplified in a wide-band LNA, then band-split for narrow filtering in each band and further amplified prior to recombination at the output and also includes an LNA pre-filter that provides enhanced protection against high level sub-harmonic signals like LTE and near frequency signals such as WiFi. Is housed in an industrial-grade weather-proof enclosure that can be surface mounted via magnet, screws or adhesive material.

Features

  • Accutenna™ Technology
  • Light weight (37g)
  • Low noise LNA
  • Temperature compensating LNAs

Benefits

  • Superior multipath signal rejection
  • Ideal for RTK applications
  • Excellent signal-to-noise ratio
  • Consistent response in all operating temperatures.





Tallysman recommends using this antenna with a 12cm circular ground plane to improve the gain of the antenna, particularly at the L2 frequency.

The TW8829 is REACH and RoHS compliant.

Tallysman TW8829 GPS L1/L2 GLONASS G1/G2 Data Sheet

Aerodynamic Antenna for UAVs and Other Applications

Premium Antennas for Unmanned Vehicles (UAVs)

TW8000 Family of Products

ALL of the connector options with cables (max length 5m) are shown below. Please contact us with questions.

This antenna comes with a magnet by default. If you need an antenna with NO MAGNET, please contact us.

00 = SMA straight male (plug)
01 = TNC female
02 = MCX straight male (plug)
03 = MMCX straight male (plug)
04 = SMB straight male (plug)
05 = MCX right angle male (plug)
06 = MMCX right angle male (plug)
10 = SMA Right Angle **
11 = Reverse polarity SMA**

12 = Waterproof SMA**
13 = SSMA **
15 = TNC male (plug)
16 = N-Type Male**
17 = BNC Male
18 = FME**
19 = MMCX Female
20 = SMA Female
22 = R/A QMA**

23 = SMP**
24 = SMC Male
25 = SMC Straight Female
26 = SMB Straight Female
27 = MCX Female Straight
28 = SSMCX Straight Plug**
29 = R/A SSMCX Plug **
30 = SMB with Overmold**
33 = MMCX straight male **

Custom Cable Lengths: 0m-5m
Cable length tolerances: <1m: ±3.0mm, 1-4.9m: ±30mm, >5m: ±50mm

** Premiums apply for these options. Please contact NavtechGPS for information and pricing.
