Item #: VATTENDCB

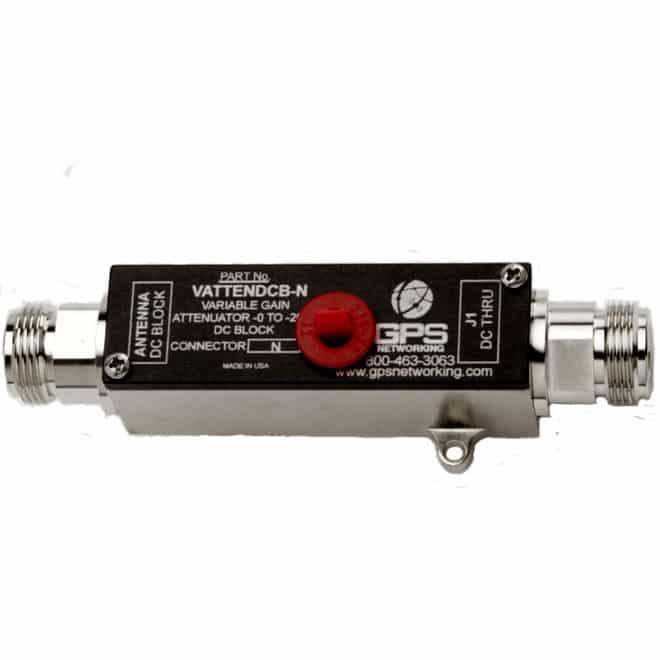

VATTENDCB Variable Attenuator DC Block

The GPS Networking Variable Attenuator DC Block (VATTENDCB) is a one input, one output attenuator that operates with a variable attenuation range that can be user selected via a potentiometer control. This unit provides between 3 – 37dB (typical) of attenuation in a miniaturized housing.

SKU: VATTENDCB Categories: , , Manufacturer: GPS Networking

GPS Networking VATTENDCB Variable Attenuator DC Block

This Variable Attenuator DC Block (VATTENDCB) from GPS Networking is a one input, one output attenuator that operates with a variable attenuation range that can be user selected via a potentiometer control. This unit provides between 3 – 37dB (typical) of attenuation in a miniaturized housing. The frequency response covers the GPS L1/L2 and GLONASS bands with excellent flatness. In the normal configuration, the RF output (j1) accepts DC voltage from the connected GPS receiver to power the attenuator while the antenna input (ANT) is DC blocked.

Features

  • Variable Attenuation Range
    • Attenuation from -3 – 30dB typical
  • Small Form Factor
    • 2.5 x 0.75 x 1.49 in. (Not Including Connectors)
  • Low SWR < 1.5:1 typical

Documents & Specs

GPS Networking VATTENDCB Variable Attenuator DC Block Datasheet
