Item #: VC6050

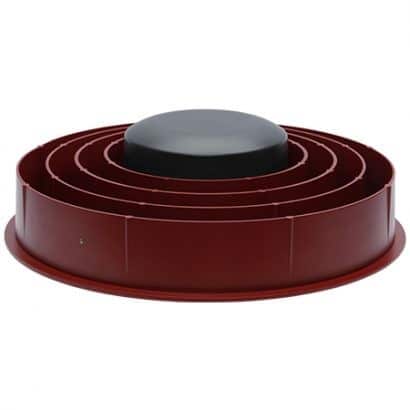

VC6050 VeraChoke Full GNSS Antenna With L-Band

The VC6050 VeraChoke® antenna employs Tallysman’s unique VeraPhase® technology covering the full GNSS spectrum: GPS/QZSS L1/L2/L5, GLONASS G1/G2/G3, Galileo E1/E5a/E5b/E6, BeiDou B1/B2/B2a/B3, QZSS L6, NavIC L5, SBAS (WAAS/EGNOS/GAGAN/MSAS) and L-Band correction services.

SKU: 33-VC6050 Categories: , Manufacturer: Tallysman Wireless

Tallysman VC6050 VeraChoke Full GNSS Antenna With L-Band

The VC6050  is ideal for high precision reference stations. The VC6050 offers low axial ratios (horizon to horizon, over all azimuths) across all GNSS frequencies (<0.5dB at zenith, <3 dB typ. at horizon). It has an exceptional front to back ratios, a tight Phase Center Variation (PCV), and near constant PCO (Phase Center Offset) for all azimuth and elevation angles, over all in-band frequencies. The VC6050 provides high-reception gain over the full GNSS spectrum and has a robust pre-filtered Low Noise Amplifier (LNA), with high third order intercept point (IP3) to minimize de-sensing from high-level out-of-band signals, including 700MHz LTE, while still providing a low noise figure.

The antenna is compatible with both large and small SCIGN radomes.

Features

  • Low axial ratio from horizon to horizon
  • Very Tight Phase Center Variation (<1.5 mm)
  • Invariant performance from: +2.7 to 24 VDC
  • Space in housing for integrated PPP, RTK receiver or other OEM system

Benefits

  • Consistent performance across all frequencies
  • Broadest tracking elevation (0° – 180°)
  • Extreme precision
  • Excellent multipath rejection
  • IP67, REACH, and RoHS compliant
  • Reduced time to market



TW6100 Drawing

Tallysman VC6050 VeraChoke Antenna Datasheet

Tallysman Connector and Cable Options

Tallysman offers a number of connector and cable options for its antennas. Use the guide below to find the available options for your antenna or contact us for help.

Tallysman Part Number Ordering Guide
