Item #: VS1000

Vector™ VS1000 GNSS Receiver

The Hemisphere GNSS Vector™ VS1000 was designed specifically for the marine market. It is a multi-GNSS, multi-frequency receiver that provides precise heading, Athena™ RTK positioning, and full Atlas® capability. This product replaces the VS330.

SKU: 940-3120-10 Categories: , , Manufacturer: Hemisphere GNSS

Vector™ VS1000 GNSS Receiver

The Hemisphere Vector™ VS1000 is a multi-GNSS, multi-frequency receiver designed specifically for the marine market. The VS1000 provides precise heading, Athena™ RTK positioning, and full Atlas® capability. Its rugged design is compliant to 60529:2013 IP67 and IEC 60945:2002 8.7 standards.

The VS1000 supports antenna separations up to 10 meters, offering heading accuracy to 0.01 degrees RMS in addition to RTK position accuracy and full support for Hemisphere GNSS’ Atlas® worldwide L-band corrections.

Key Features

  •  Athena™ RTK and Atlas® L-band capable
  •  Extremely accurate heading (to 0.01° RMS)
  •  Multi-frequency GPS/GLONASS/BeiDou/Galileo
  •  Purpose-built for the most challenging environments
  •  Supports Ethernet, CAN, Serial, USB, Bluetooth, and Wi-Fi

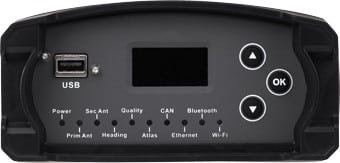

  •  Powerful WebUI accessed via Wi-Fi plus a 128×64 display and 10 multi-color LEDs

Vector™ VS1000 GNSS Receiver Data Sheet

Vector™ VS1000 GNSS Receiver User Guide

Declaration of Conformity

163-1001-000 Eclipse RTK Activation (VS1000/VS330 L1 only)

163-1004-000 Eclipse mFreq Activation (VS1000/VS330 L1 only)

163-1007-000 Eclipse 20 Hz Activation (VS1000/VS330 L1 only)

163-1019-000 Beacon Activation
