Item #: H328

Vector H328 GNSS Compass Board

Hemisphere has announced that these products are nearing the end of life (see EOL Notice) and will not take orders after June 30, 2021. Hemisphere is recommending the Vega 40 OEM GNSS Dual-Antenna Receiver as a replacement. Please refer to the Related Products tab for details about those products, or contact us for help.

With the Hemisphere GNSS H328 OEM board, you can develop sophisticated machine control and navigation solutions in complex, dynamic environments with this multi-frequency, low-power, high-precision, all signals receiver board.

SKU: 940-4105-0 Categories: , , , Manufacturer: Hemisphere GNSS

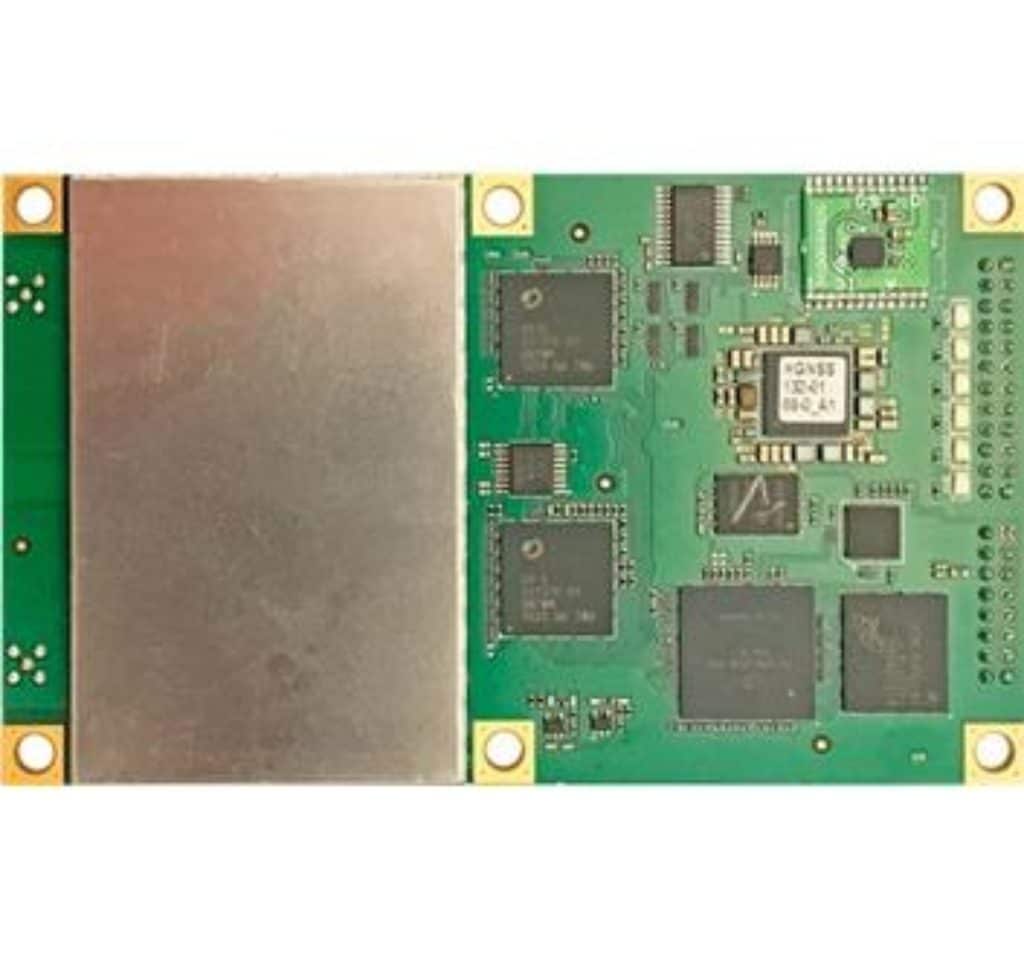

Hemisphere Vector Eclipse H328 Compass OEM Board

The Hemisphere GNSS Vector H328 OEM board is an advanced GNSS heading and positioning board. It utilizes dual antenna ports to create a series of additional capabilities to Eclipse Vector technology including fast, high-accuracy heading over short baselines, RTK positioning, onboard Atlas L-band, RTK-enabled heave, low-power consumption, and precise timing.


Scalable Solutions

With the Vector H328, positioning is scalable and field upgradeable with all Hemisphere software and service options. Utilize the same centimeter-level accuracy in single frequency mode, or use the full performance and fast RTK initialization times over long distances with multi-frequency multi-constellation GNSS signals. High-accuracy L-band positioning from meter to sub-decimeter levels are available via the Atlas correction service.

Ease of Migration

Leverage the industry standard form factor for easy upgradeability from other manufacturers modules.

Key Features

  • Highly accurate heading with short baselines
  • Multi-frequency position, dual frequency heading supporting GPS, GLONASS, BeiDou, Galileo, QZSS, and L-band
  • Atlas L-band capable to 8 cm 95 percent
  • Excellent coasting performance 5 cm RMS RTK-enabled heave accuracy
  • Fast RTK acquisition and reacquisition times
  • Strong multipath mitigation and interference rejection

Eclipse Vector Firmware Options

  • Eclipse 20 Hz activation
  • Eclipse 50 Hz activation
  • Eclipse dFreq activation
  • Eclipse RTK activation

Hemisphere GNSS VECTOR ECLIPSE H328 Compass BOARD Datasheet

End of Life Notice for the H328 OEM GNSS Dual-Antenna Receiver
