Item #: Vega 34

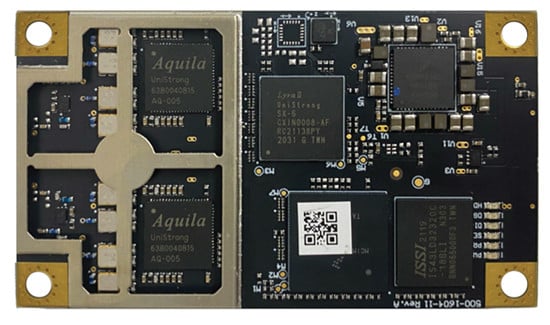

Vega 34 GNSS Compass Board

The Hemisphere Vega 34 is a multi-frequency, multi-constellation heading receiver. The Vega 34 uses dual antenna ports to create a series of additional capabilities; including fast, high-accuracy heading over short baselines, RTK positioning, onboard Atlas L-band, RTK-enabled heave, low power consumption, and precise timing.

SKU: 940-4167-10 Categories: , , , Manufacturer: Hemisphere GNSS

Hemisphere Vega 34 GNSS Compass Board

The Vega 34 from Hemisphere GNSS is a multi-frequency, multi-constellation heading receiver. The Vega 34 uses dual antenna ports to create a series of additional capabilities; including fast, high-accuracy heading over short baselines, RTK positioning, onboard Atlas L-band, RTK-enabled heave, low power consumption, and precise timing. Heading and positioning are scalable and field upgradeable with all Hemisphere software
and service options. Utilize the same multi-constellation GNSS solutions in either single-frequency mode or employ the full performance and fast RTK initialization times over long distances with multi-frequency signals. High accuracy L-band positioning from meter to subdecimeter levels is available via Hemisphere’s Atlas® correction service.

Features

  • Accurate heading with long baselines
  • Available multi-frequency position, dual-frequency heading supporting GPS, GLONASS, BeiDou, Galileo, QZSS, NavIC (IRNSS), and L-band
  • Atlas® L-band capable to 4 cm RMS
  • Athena™ GNSS engine providing best-in-class RTK performance
  • Excellent coasting performance
  • 5 cm RMS RTK-enabled heave accuracy
  • Strong multipath rejection and Cygnus™ interference mitigation
  • New multi-axis gyro and tilt sensor for reliable coverage during short GNSS outages

Documents & Specs

Hemisphere Vega 34 GNSS Compass Board Datasheet
