HCRING – Helical Mounting Ring for Tallysman Antennas

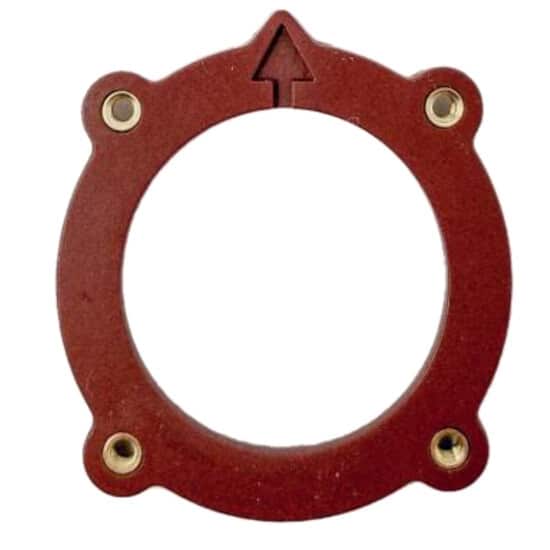

The Calian helical mounting ring can be installed in two ways. It can strap the antenna circuit board to the top or the bottom of the host circuit board or any flat mounting surface.
Calian’s line of embedded helical antennas have two different form factors. The first has a 2 cm diameter antenna element and uses the HCRING 20 mm model (P/N 23-0219-0). Antennas in this group include:
- HC600E (Iridium),
- HC771E (L1/G1/E1/B1),
- HC871E (L1/G1/E1/B1 and L2/G2).
The second form factor has a 3 cm diameter antenna element and uses the HCRING 30 mm model (P/N 23-0220-0). Antennas in this group include:
- HC872E (L1/G1/E1/B1, L2/G2 and L-band correction services);
- HC882E (L1/G1/E1/B1, L2/G2/G3/E5b/B2, and L-band correction services);
- HC976E (L1/G1/E1/B1, L6/E6/L2/G2/B3 and L-band correction services);
- HC977E (L1/G1/E1/B1, L2/G2/G3/E5ab/B2/B2a, and L-band correction services).
