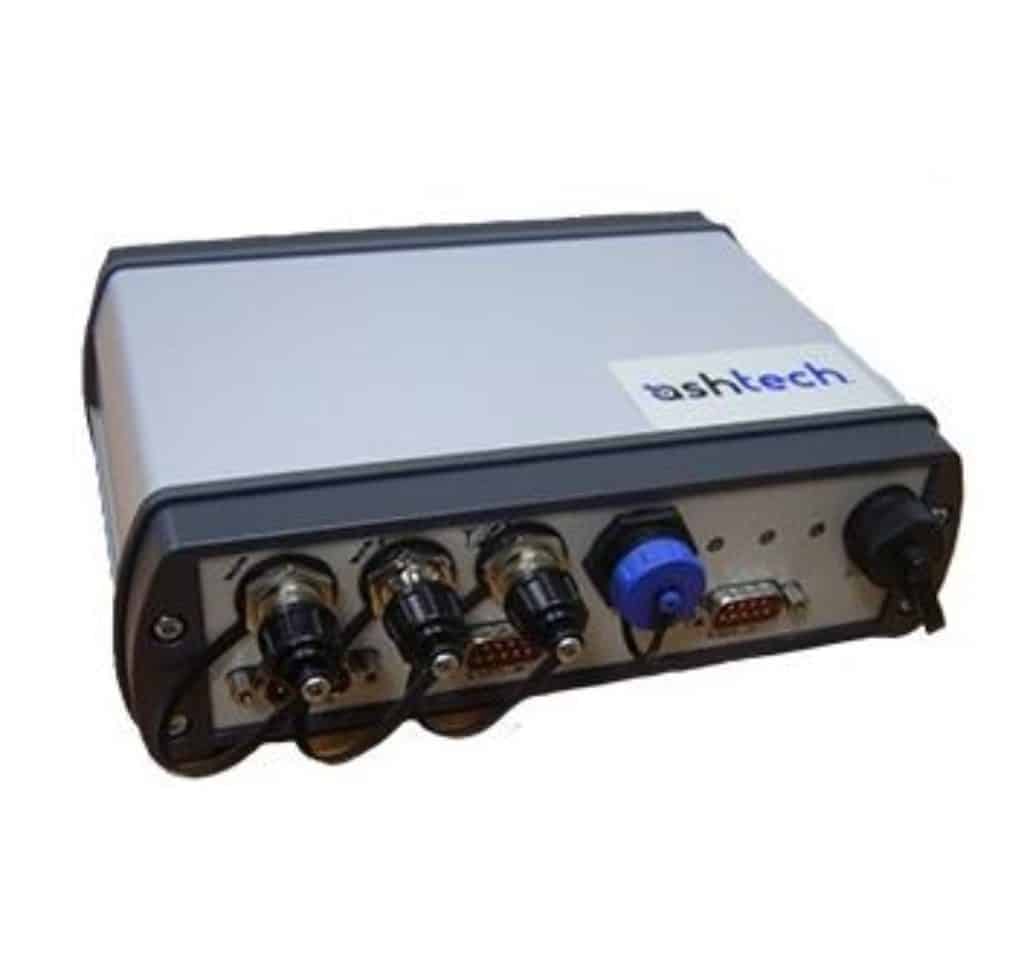

ABX802 GNSS Receiver
Trimble has announced that the ABX100, ABX800 and ABX802 are now officially in their end of life / end of manufacturing phase. Trimble® does not encourage development of any new projects using these OEM products. Trimble® suggests ABX-Two for customers looking for a replacement product for ABX100, ABX800 and ABX802.
Â
All receivers from the ABX series share the same weatherproof, lightweight, small-sized, rugged enclosure capable of accommodating either one GNSS MB100 board (ABX11), one GNSS MB800 board (ABX800) or two GNSS MB800 boards (ABX802).
Â
ABX Series allows OEM and system integrators to rapidly integrate centimeter level positioning into their application. Each receiver from the ABX series is fitted with a built-in power supply extending the input voltage range to between 9 and 36 V DC while maintaining a low power consumption regardless of the power input voltage.
Â
Built in a weatherproof, rugged and small-size unit, ABX receivers can be operated in harsh environments while requiring a minimum of space for their installation. As lightweight high-end units, all ABX receivers are also compatible with airborne applications for which weight considerations are critical.
Â
Features
Dual board solution for:
- Heading for Relative Postioning
- RTK Heading
- RTK Relative Postioning
- Optional embedded UHX TRx
- Smart, Simple and Rugged Sensor
Easy to Integrate
- Aluminum Profile with mounting brackets
- Waterproof and dustproof: IP67 rated
- MIL-STD 810F rated for shock and vibrations
Rugged I/O Interface
Â
- Waterproof USB / Serial port
- Waterproof DB9 connectors – Standard connectors easy to operate on the field
- 3 RS232 ports (2 RS232 when UHF is embedded)
- PPS output
- Event marker input
- Up to 3 TNC antenna connectors (GNSS#1 GNSS#2 UHF) – 9-36 V DC power input
- 9-36 V DC power input
